214 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

C: Accessing a Network Printer via a Web Browser

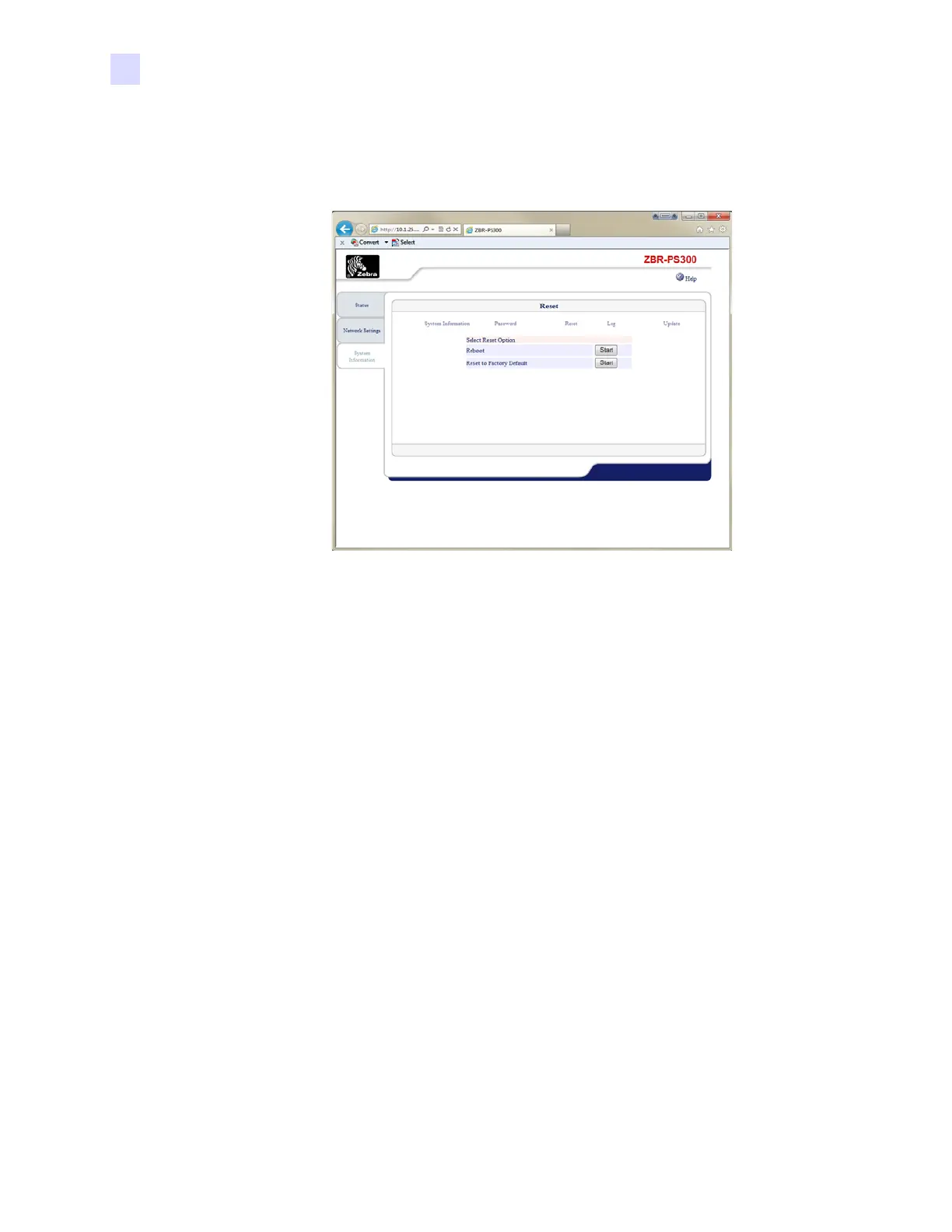

System Information (continued):

Reset

• Reboot Reboot this printer by clicking Start.

• Reset to Factory Default Reset this printer to factory default settings, and reboot by

clicking Start.
