Zebra ZXP Series 3 Service Manual

216 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
C: Accessing a Network Printer via a Web Browser
System Information (continued):

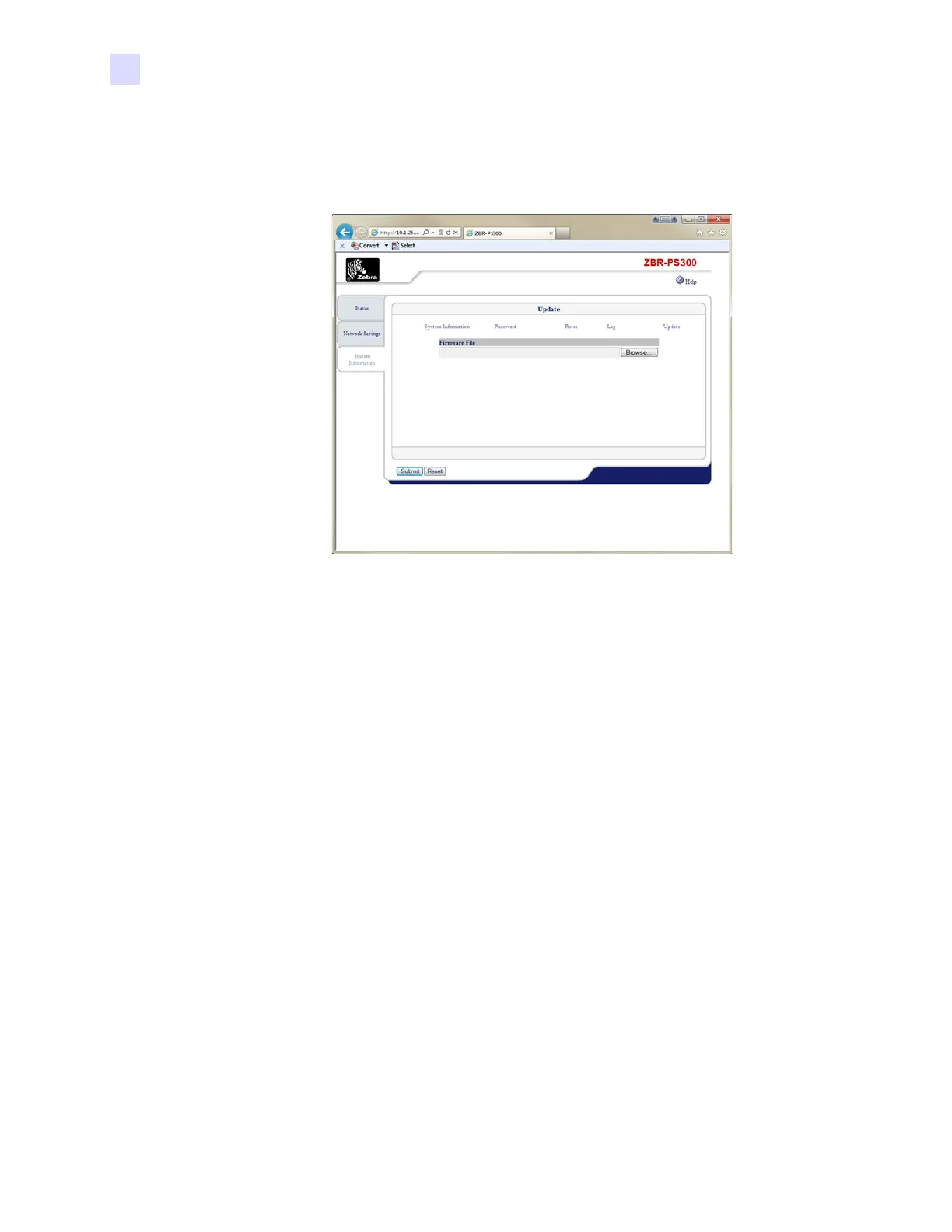

Update
• Firmware File Update the firmware. Specify the file path for the
firmware to be updated. Note that this update is the
ZBR-PS300 firmware, not the Printer firmware. Contact
Zebra Technical Support (Appendix M) for the latest
firmware file.
Step 6. When done, close the browser by clicking on the red X-button in the upper-right
corner of the browser screen.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
