D: Magnetic Encoder Option
Encoder Settings (Driver)
The Encoder Settings dialog box is used for setting various Magnetic Encoder parameters.
This feature is not enabled if the printer does not have the magnetic encoder option; see
Encoding Tab on page 62 for details.
Media Loading Orientation

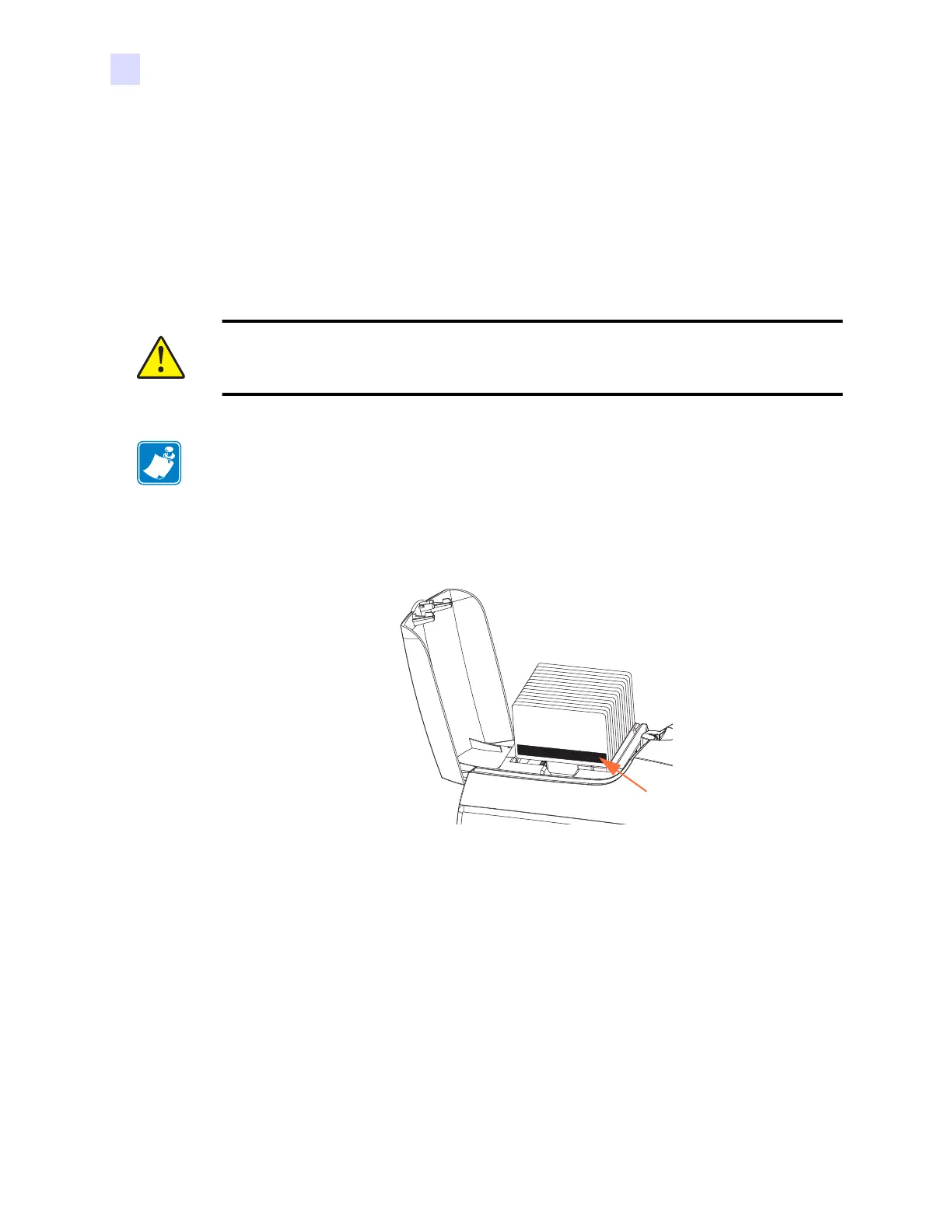

When loading cards with magnetic stripes into the card feeder, please ensure that the magnetic
stripe is facing the left side of the printer, and closest to the bottom edge of the card feeder.
Magnetic Encoder Cleaning
Use the standard cleaning card process as described in Preventive Maintenance. This cleans
the most important parts of the printer; including the Printhead, Transport Roller, and
Magnetic Stripe Encoder.
Caution • ONLY USE cards that comply with ISO 7810 & 7811 standards for magnetic
stripe cards. The magnetic stripe must be flush to the surface of the card to work properly.
Never use cards which have taped-on magnetic stripes.
Note • Zebra-approved HiCo & LoCo PVC cards are available. (Reference ZXP Series 3 Card
Printer Media List.)

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
