Zebra ZXP Series 3 Service Manual

E: Smart Card Options
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 223
Contact Smart Cards
Contact Smart Cards have a pad of contacts on the surface of the card that connects to the
circuitry embedded into the card.
Encoding data onto Smart Cards and reading the data previously encoded on them is totally
under control of the application software; no operator action is required. If you experience any
problems with encoding or reading data, refer to the users manual or other documentation for
the application software.
All other printer operations remain the same as the standard models.
Media Loading Orientation for Contact Smart Cards

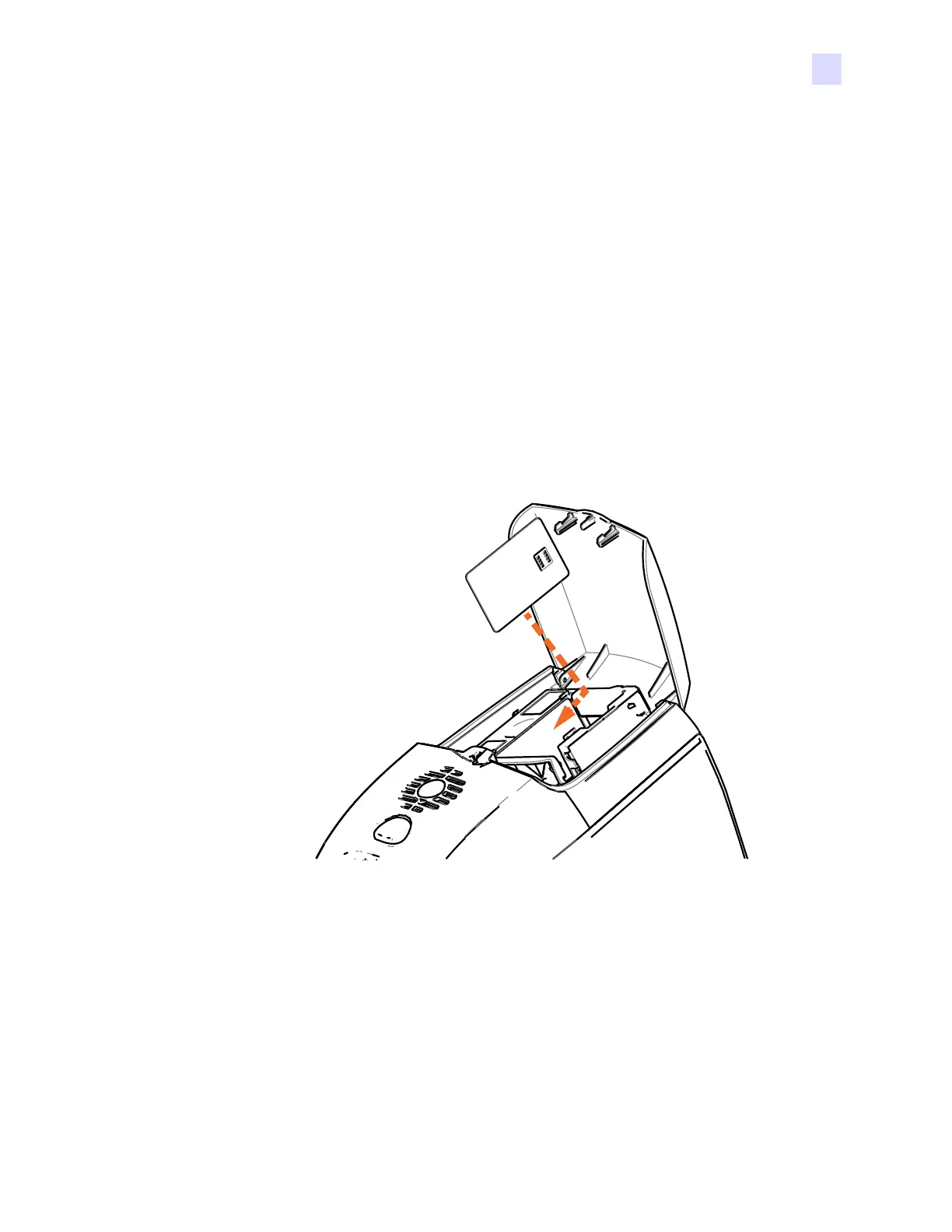

Place the cards in the Card Feeder in the correct orientation with the gold-plated Smart
Card contacts at the top surface of the cards as shown. Ensure that the cards are seated
properly in the feeder.
Printing on Contact Smart Cards
When designing material to be printed on Contact Smart Cards, be sure the printing will not be
on the contact area.
For printing in the single-card feed mode, the card Hopper is removed; and the card is inserted
into the single-card feed slot with the smart card chip facing up.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
