254 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
H: Upgrade Kit Instructions
Mag Encoder
Remove the Stepper Motor

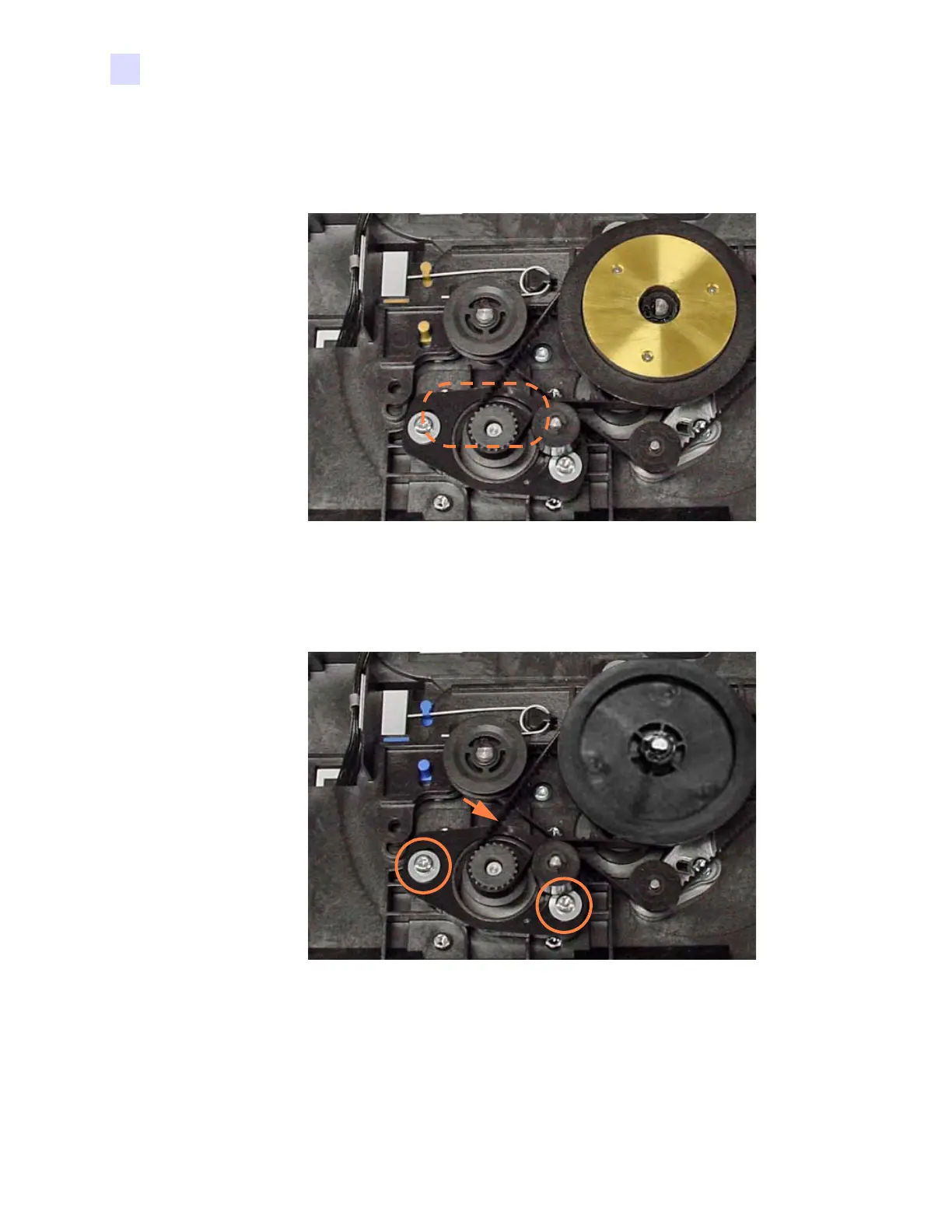

Step 1. Locate the Stepper Motor.
Step 2. With a TORX T10 driver, loosen the two screws (circled below) holding the
motor collar in place. When adjusting the belt tension, tighten the screws
to 5.5 in-lbs.
Step 3. Remove the associated belt (arrow above).
