256 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

H: Upgrade Kit Instructions

Mag Encoder

Remove the Left Side Rocker

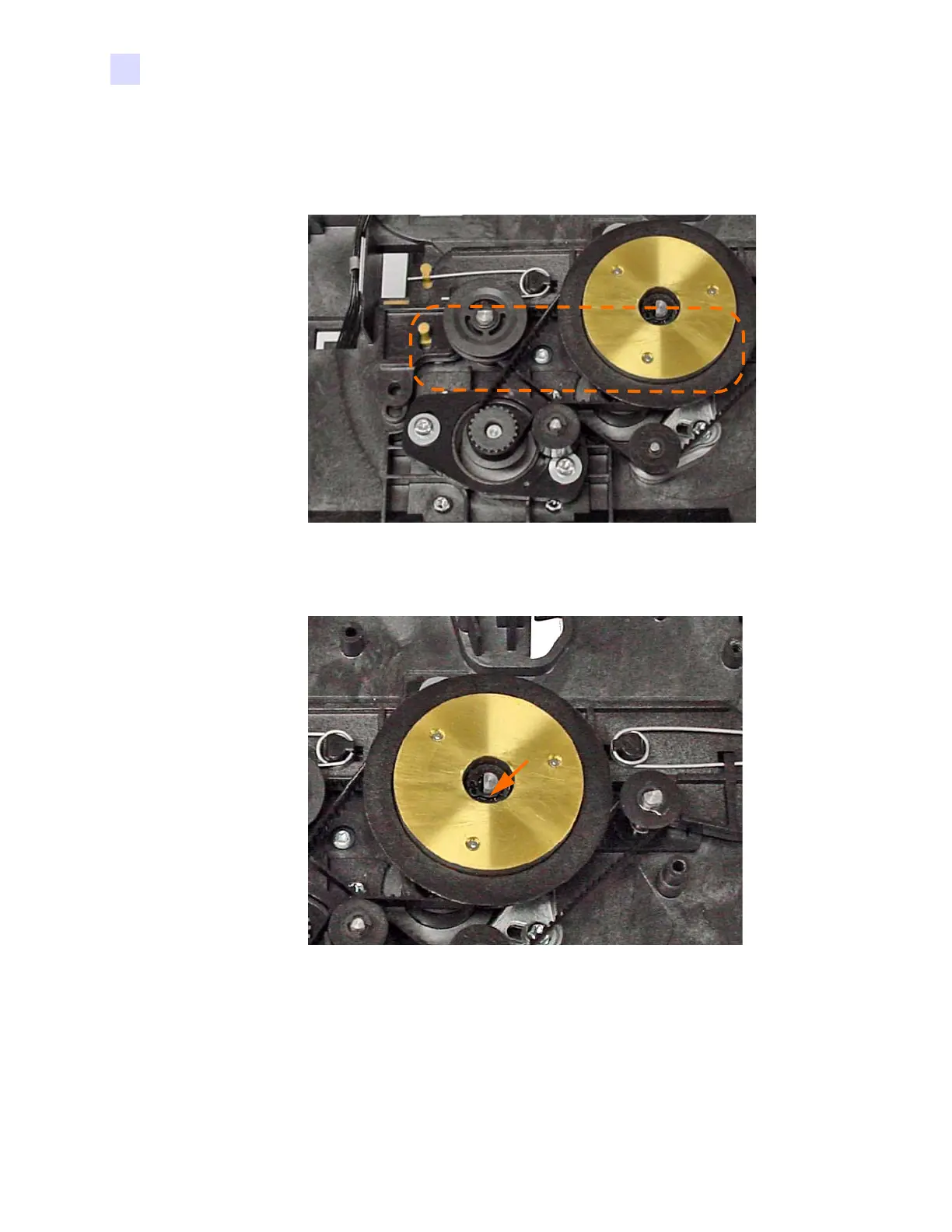

Step 1. Locate the Rocker (circled below).

Step 2. Remove the retaining clip (arrow below) from the Pulley.
