Zebra ZXP Series 3 Service Manual

H: Upgrade Kit Instructions
Contact Station
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 285
Remove the Rear Cover

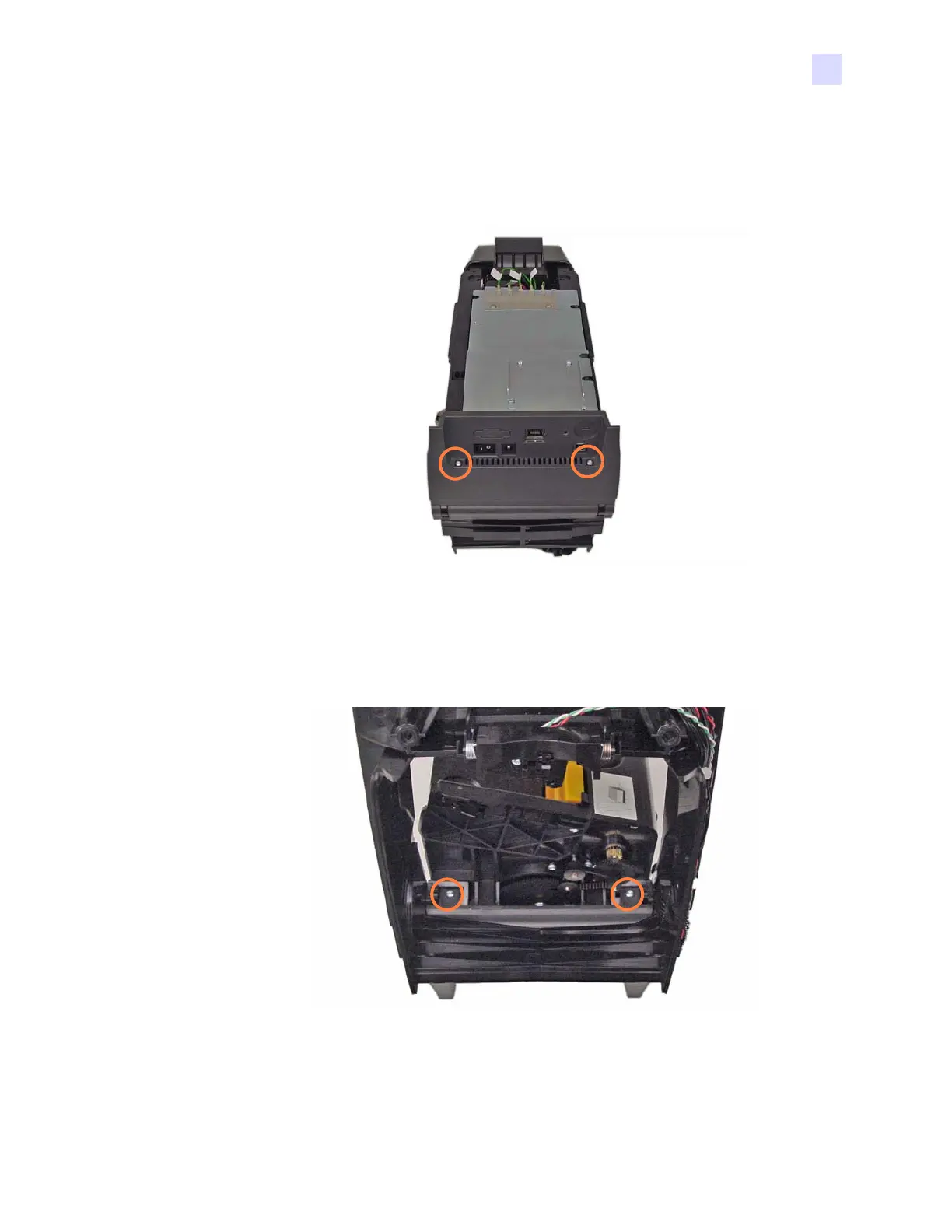

Step 1. With a TORX T10 driver, remove the two screws (circled below) from the bottom
of the Rear Cover. When reinstalling the cover, tighten the screws to 7.0 in-lb.
Step 2. If not already raised, raise the Lid.
Step 3. With a TORX T10 driver, loosen the two screws (circled below) from the top of the
Rear Cover. When reinstalling the cover, tighten the screws to 9.0 in-lb.
Step 4. Remove the Rear Cover.

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
