H: Upgrade Kit Instructions
MIFARE & Contact
P1061317-002 Zebra ZXP Series 3 Card Printer Service Manual 313
Remove the Right Side Cover

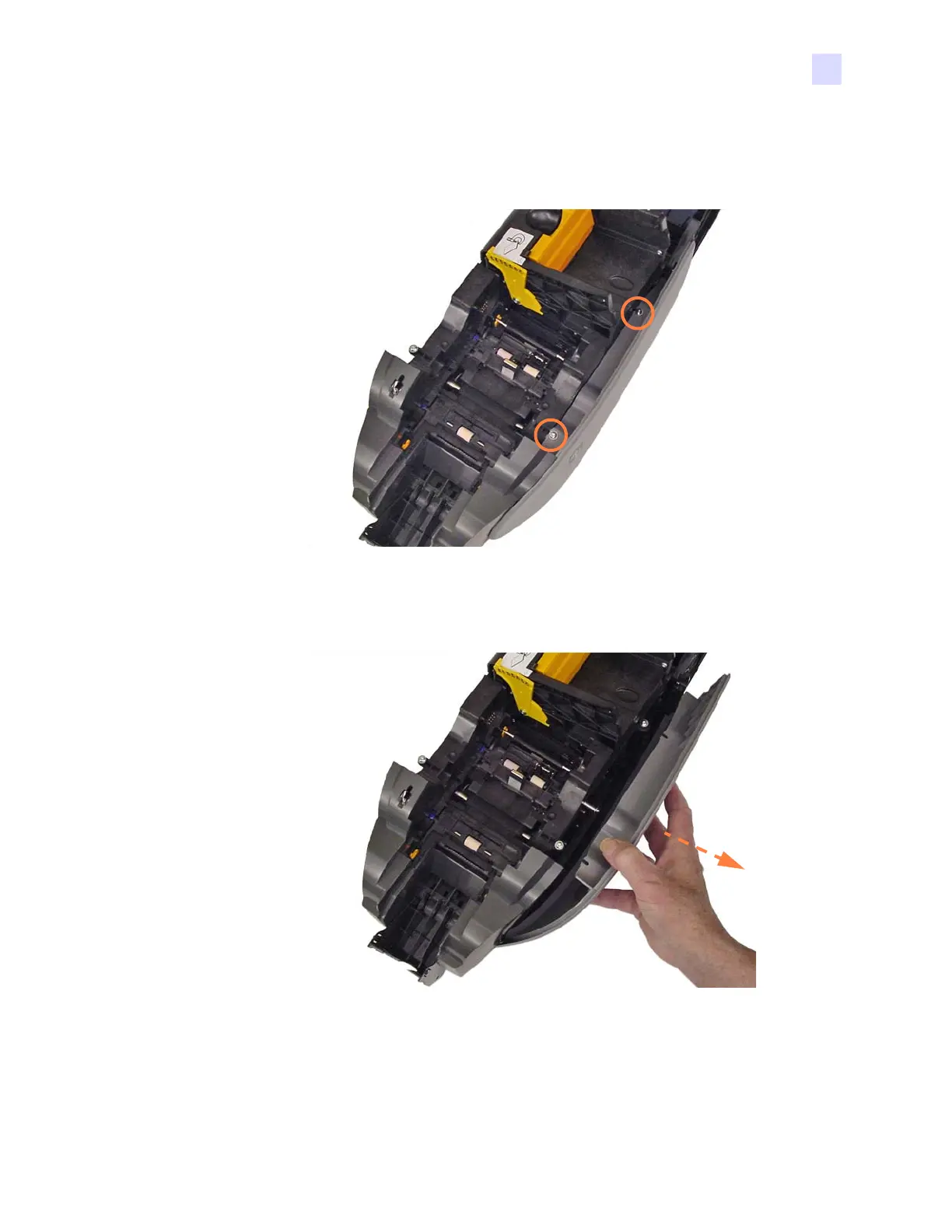

Step 1. Locate the two screws (circled below) that hold the Right Side Cover in place.
Step 2. With a TORX T10 driver, loosen the two screws. When reinstalling the cover,
tighten the screws to 9.0 in-lb.
Step 3. Remove the Right Side Cover.
