336 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002

K: Belt Tensioning

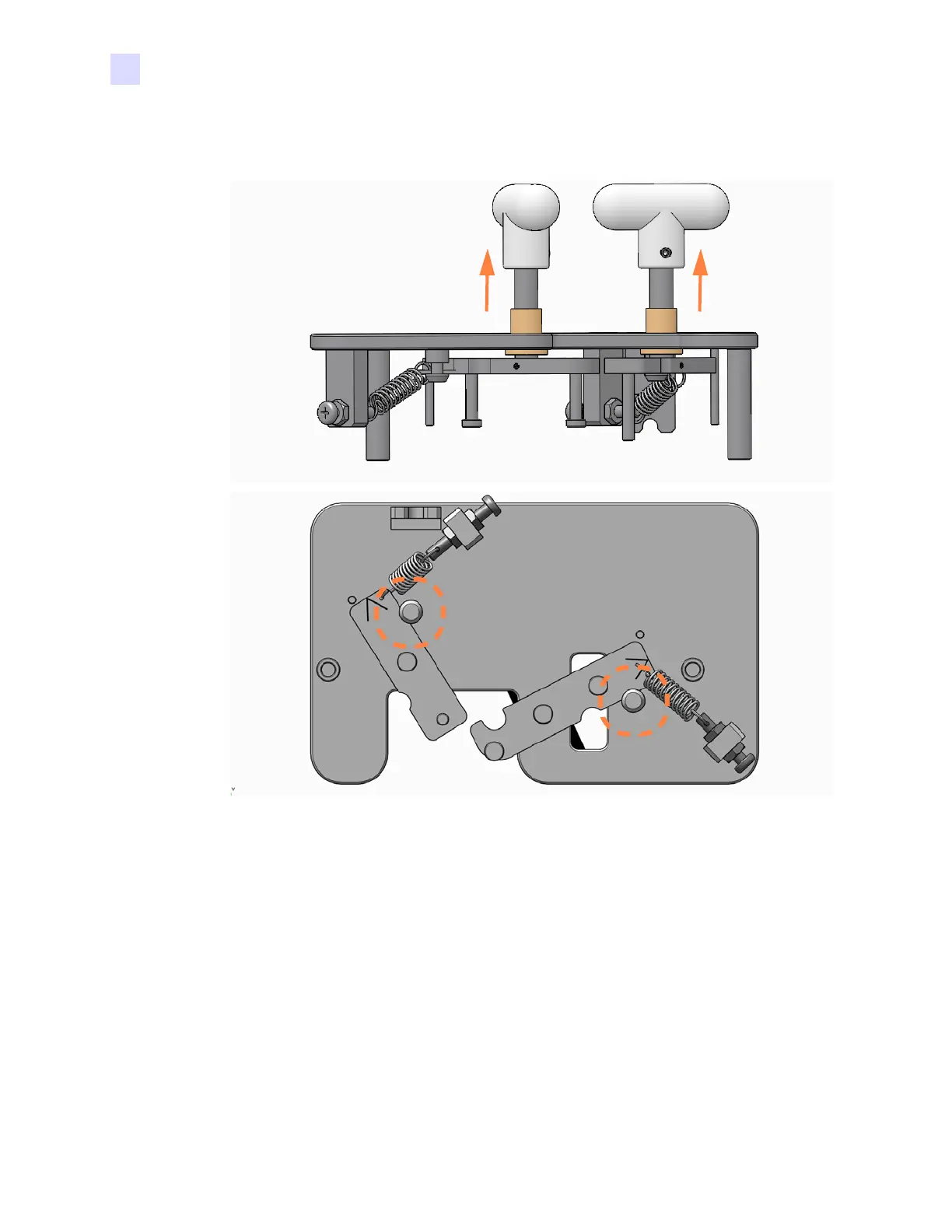

Step 1. Pull the tensioner arm handles upward from the tool and rotate each tensioner arm to

place in the locked position.
