Zebra ZXP Series 3 Service Manual

78 Zebra ZXP Series 3 Card Printer Service Manual P1061317-002
3: Theory of Operation
Card Printing Basics

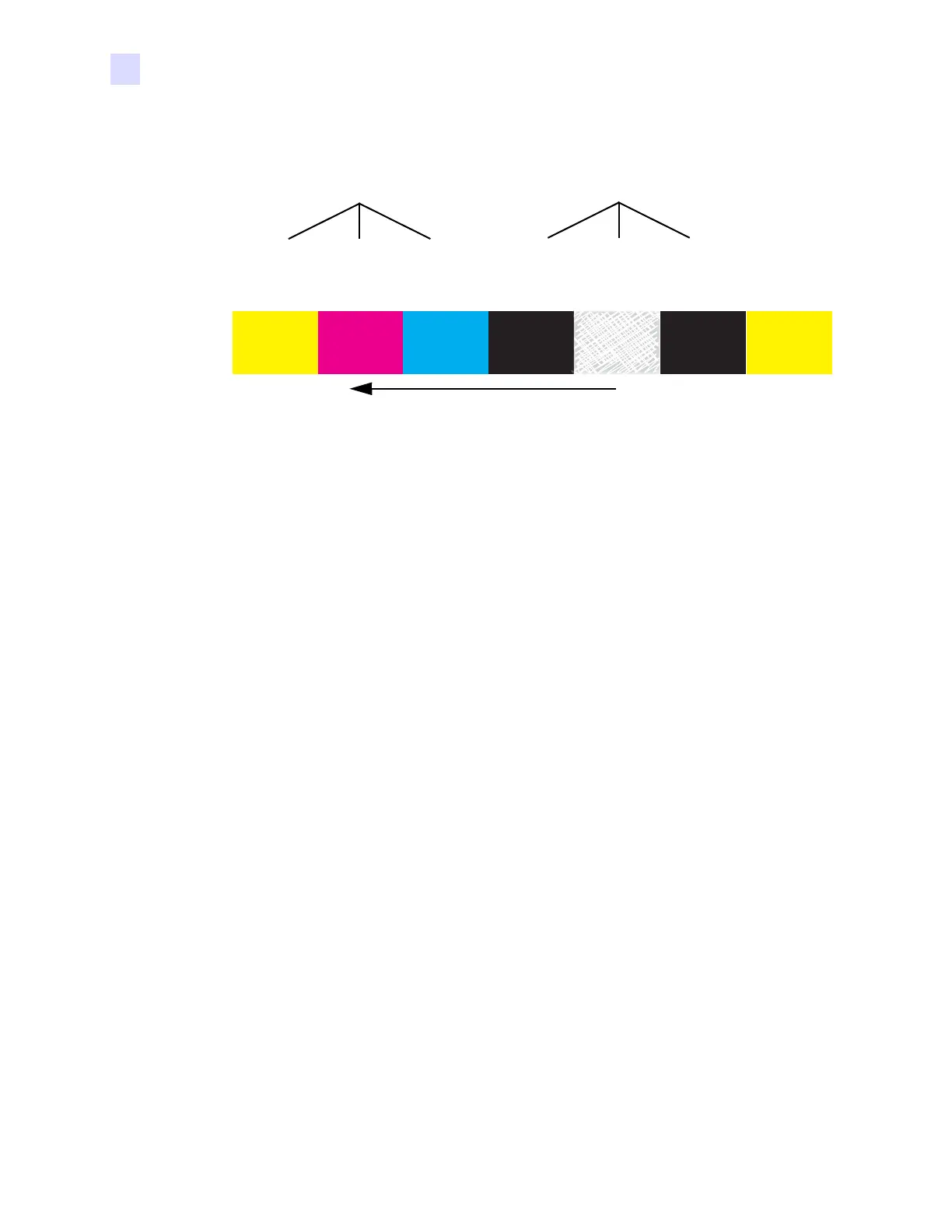

A YMCKOK ribbon has successive panels as follows:
Other ribbons are available for the Printer; see the Supplies List on the Driver and
Documentation CD that came with your printer, or go to the Zebra Card Printer Solutions
website at http://www.zebracard.com.
Additionally, the driver software allows the user to specify which ribbon panels are printed on
either side of the card.
The ribbon synchronizes to its “starting” position whenever the Lid is opened and then closed.
For a YMCKOK ribbon, the starting position is with the leading edge of a Yellow Panel at the
Printhead location.
Ribbon Movement From Supply Spool
(YMCKOK
Pattern
Repeats)
Yellow
(“Y”)
Dye
Cyan
(“C”)
Dye
Magenta
(“M”)
Dye
Black
(“K”)
Resin
Overlay
(“O”)
Varnish
Dye Sublimation Printing Process Thermal Transfer Printing Process
Black
(“K”)
Resin

Zebra ZXP Series 3 Specifications

General

Color	No
Card size	54 x 86 mm
Card types	Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card
Card feeder	Yes
Print technology	Dye-sublimation
Maximum resolution	300 DPI
Print speed (color)	180 card/h
Print speed (monochrome)	750 card/h
Printing media thickness	762 µm
Duplex print speed (color)	140 card/h
Display	LCD
Certification	FCC, CE, UL, CUL
Product color	Grey, White
Internal memory	32 MB
Built-in barcodes	EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A
Total input capacity	100 sheets
Display number of characters	16
Compatible operating systems	Windows
Storage temperature (T-T)	-5 - 70 °C
Operating temperature (T-T)	15 - 30 °C
Storage relative humidity (H-H)	20 - 70 %
Operating relative humidity (H-H)	20 - 65 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Interface	USB
Optional connectivity	Ethernet, USB 2.0

Weight and Dimensions

Weight	5530 g
Dimensions (WxDxH)	201 x 368 x 309 mm
