Parameters 227
15.05 AO1 MAX SCALE
Defines the real value that corresponds to the
maximum analogue output value defined by
parameter 15.03 AO1 MAX.
100.000 /
Real
-32768.000
…32768.000
Real value corresponding to the value of parameter
15.03.
- / 1000 = 1
15.06 AO1 MIN SCALE
Defines the real value that corresponds to the
minimum analogue output value defined by
parameter 15.04 AO1 MIN. See parameter 15.05
AO1 MAX SCALE.
0.000 /
Real
-32768.000
…32768.000
Real value corresponding to the value of parameter
15.04.
- / 1000 = 1
15.07 AO2 PTR
Selects a drive signal to be connected to analogue
output AO2.
See parameter 01.02 SPEED ACT PERC.
P.SPEED
ACT PERC /
Val pointer
Value pointer (See Terms and abbreviations on
page 183.)
15.08 AO2 FILT TIME
Defines the filtering time constant for analogue
output AO2. See parameter 15.02 AO1 FILT TIME.
0.100 s /
Real
0.000…30.000 s Filter time constant for AO2. 1000 = 1 s / -
No. Bit/Name/Value/
Range
Description Def/Type
FbEq
(16b/32b)

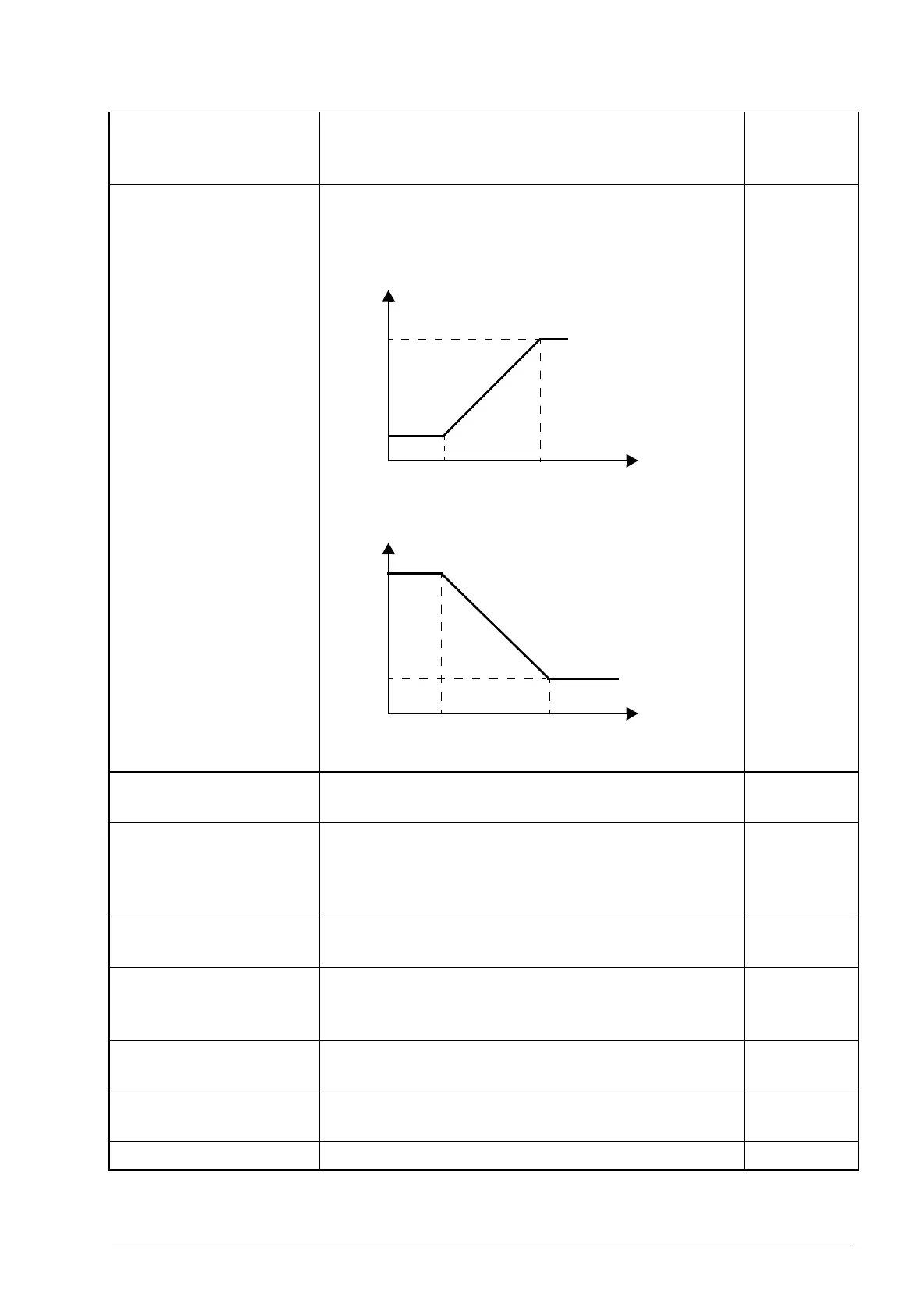

AO (mA)
15.03
15.04
15.05 15.06
15.0515.06
15.03
15.04
AO (real)
AO (mA)
AO (real)
