ABB ACL30 User Manual

228 Parameters
15.09 AO2 MAX
Defines the maximum value for analogue output
AO2.
10.000 V /
Real
-10.000…
10.000 V
Maximum AO2 output value. 1000 = 1 V /
-
15.10 AO2 MIN
Defines the minimum value for analogue output AO2. -10.000 V /
Real
-10.000…
10.000 V
Minimum AO2 output value. 1000 = 1 V /
-
15.11 AO2 MAX SCALE
Defines the real value that corresponds to the
maximum analogue output value defined by
parameter 15.09 AO2 MAX.
100.000 V /
Real
-32768.000
…32768.000
Real value corresponding to the value of parameter
15.09.
- / 1000 = 1
15.12 AO2 MIN SCALE
Defines the real value that corresponds to the
minimum analogue output value defined by
parameter 15.10 AO2 MIN. See parameter 15.11
AO2 MAX SCALE.
-100.000 V /
Real
-32768.000
…32768.000
Real value corresponding to the value of parameter
15.10.
- / 1000 = 1
No. Bit/Name/Value/
Range
Description Def/Type
FbEq
(16b/32b)

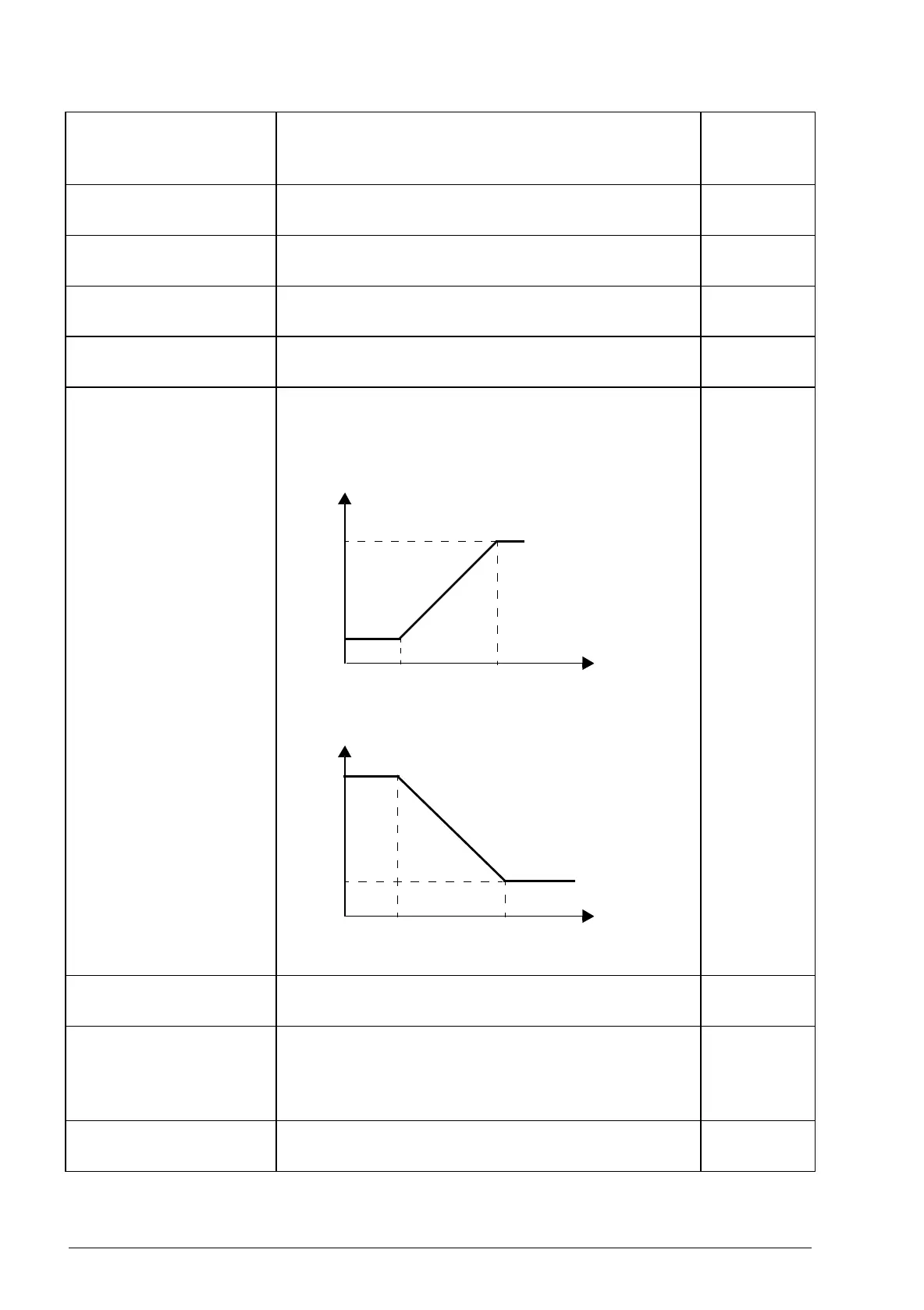

AO (V)
15.09
15.10
15.12 15.11
15.1115.12
15.09
15.10
AO (real)
AO (V)
AO (real)
