A96G166/A96A166/A96S166 User’s manual 15. USART 0/1

149

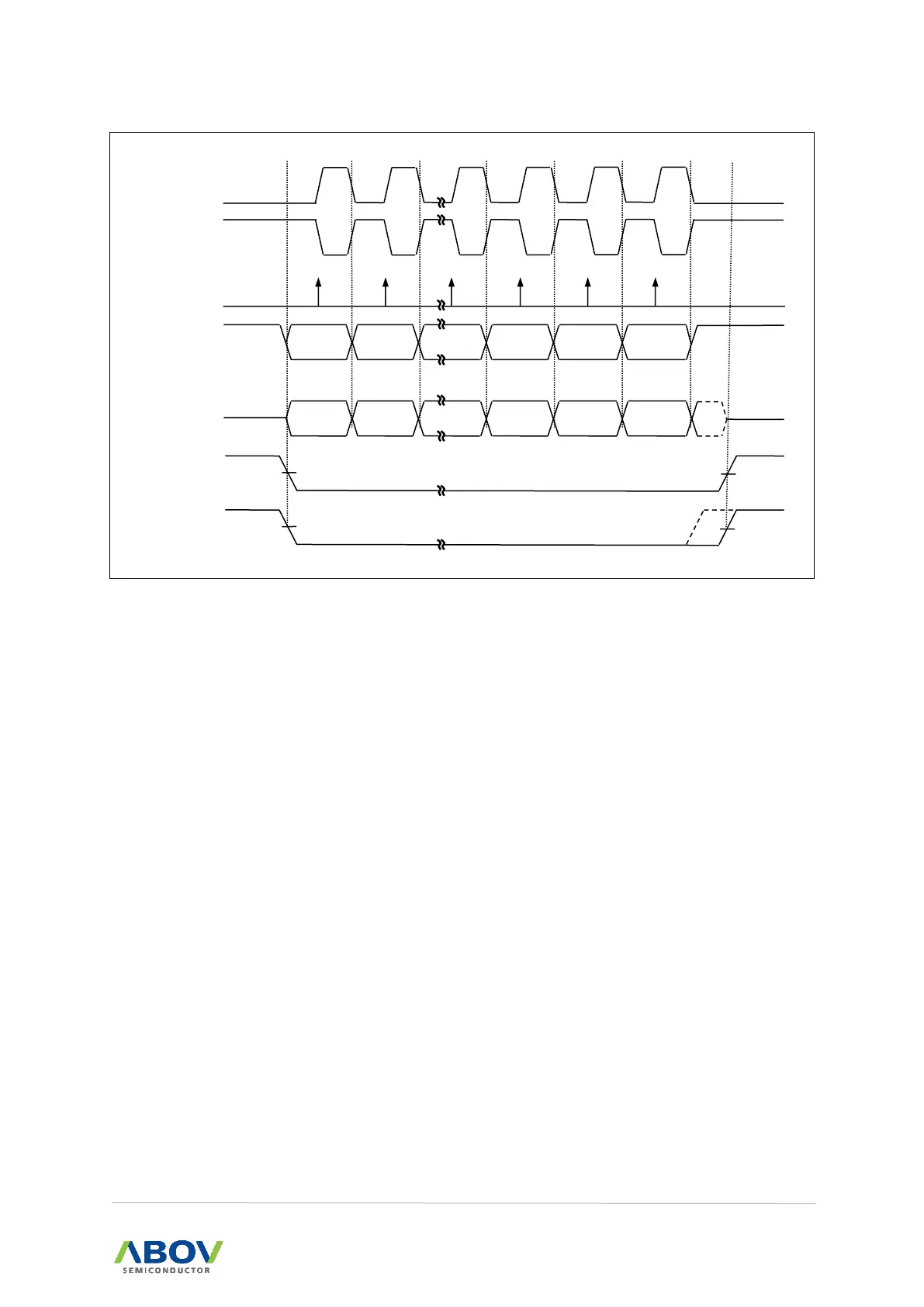

Figure 77. SPI Clock Formats when UCPHA = 0

When UCPHA=0, the slave begins to drive its MISOn output with the first data bit value when SSn

goes to active low. The first XCKn edge causes both the master and the slave to sample the data bit

value on their MISOn and MOSIn inputs, respectively.

At the second XCKn edge, the USARTn shifts the second data bit value out to the MOSIn and MISOn

outputs of the master and slave, respectively. Unlike the case of UCPHA=1, when UCPHA=0, the

slave’s SSn input must go to its inactive high level between transfers. This is because the slave can

prepare the first data bit when it detects falling edge of SSn input.

XCKn

(UCPOL=1)

MISOn

MOSIn

XCKn

(UCPOL=0)

/SSn OUT

(MASTER)

BIT7

BIT0

/SSn IN

(SLAVE)

BIT6

BIT1

…

BIT2

BIT5

BIT0

BIT7

BIT1

BIT6

SAMPLE

MSB First

LSB First
