A96G166/A96A166/A96S166 User’s manual 18. Reset

173

18.2 Power on reset

When rising device power, POR (Power on Reset) has a function to reset a device. If POR is used, it

executes the device RESET function instead of the RESET IC or the RESET circuits.

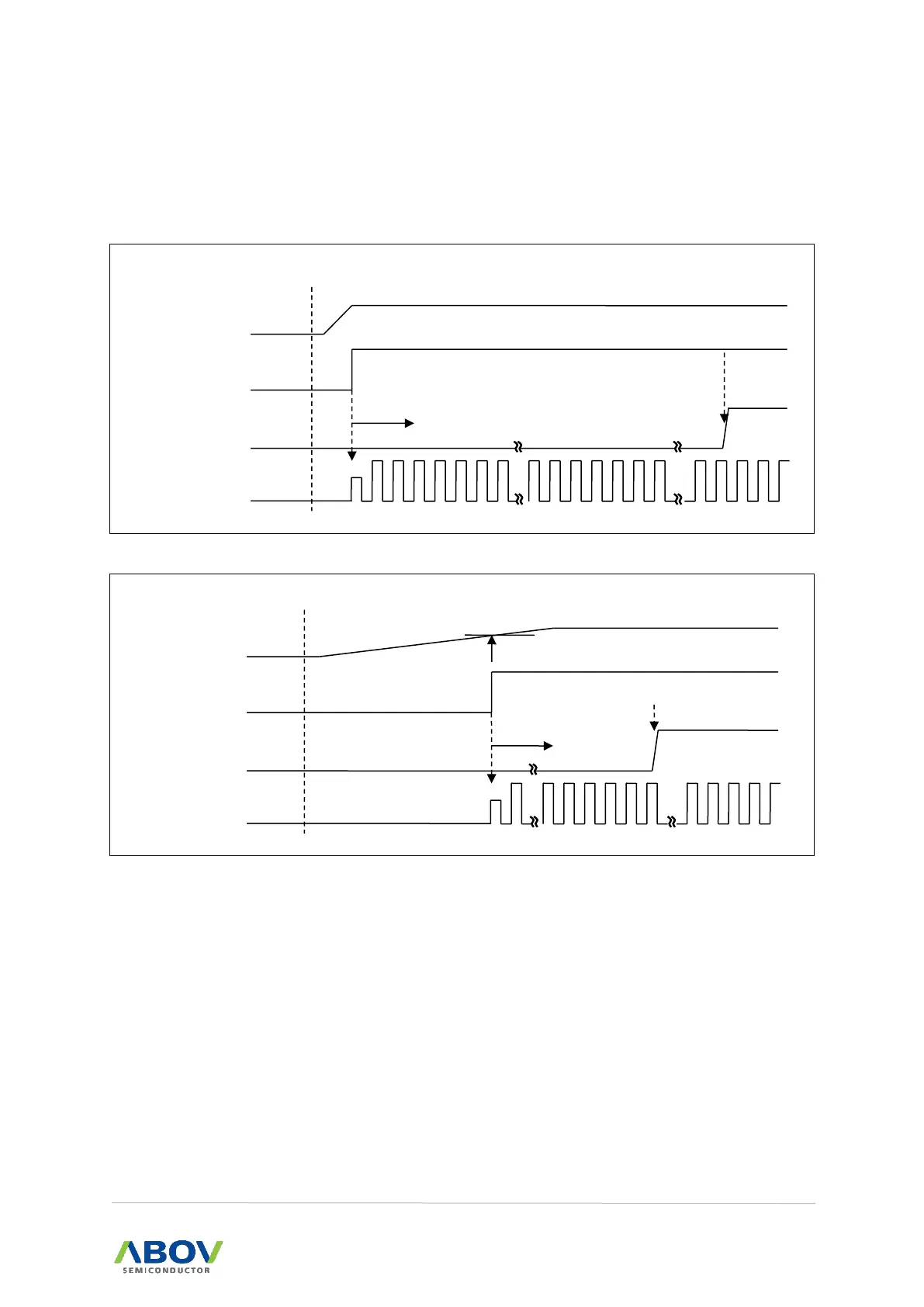

Figure 86. Fast VDD Rising Time

Figure 87. Internal RESET Release Timing On Power-Up

VDD

nPOR

(Internal Signal)

Internal RESETB

Oscillation

BIT Starts

BIT Overflows

Slow VDD Rising Time, min. 0.05V/ms

POR

=1.32V (Typ)

VDD

nPOR

(Internal Signal)

Internal RESETB

Oscillation

BIT Starts

BIT Overflows

Fast VDD Rising Time, max. 50.0V/ms
