A96G166/A96A166/A96S166 User’s manual 19. Memory programming

187

Start

OCD mode entry

Write(OCD_CODE, 0xF555, 0xAA)

Set auto verify mode

End

Busy check (FESR[7]=L)

Read 24- bit Checksum (H, M, L)

Read(OCD_XDATA, FEARH)

Read(OCD_XDATA, FEARM)

Read(OCD_XDATA, FEARL)

Set checksum read mode

Write(OCD_CODE, 0xFAAA, 0x55)

Write(OCD_CODE, 0xF555, 0xA5)

Write(OCD_XDATA, FEMR, 0x81)

Write(OCD_CODE, FETR, 0x00)

Write(OCD_CODE, FECR, 0x07)

Exit checksum read mode

Write(OCD_XDATA, FECR, 0x30)

Write(OCD_XDATA, FEARM,Start Address Upper)

Write(OCD_XDATA, FEARL,Start Address Lower)

Write(OCD_XDATA, FEARM1,End Address Upper)

Write(OCD_XDATA, FEARL1,End Address Lower)

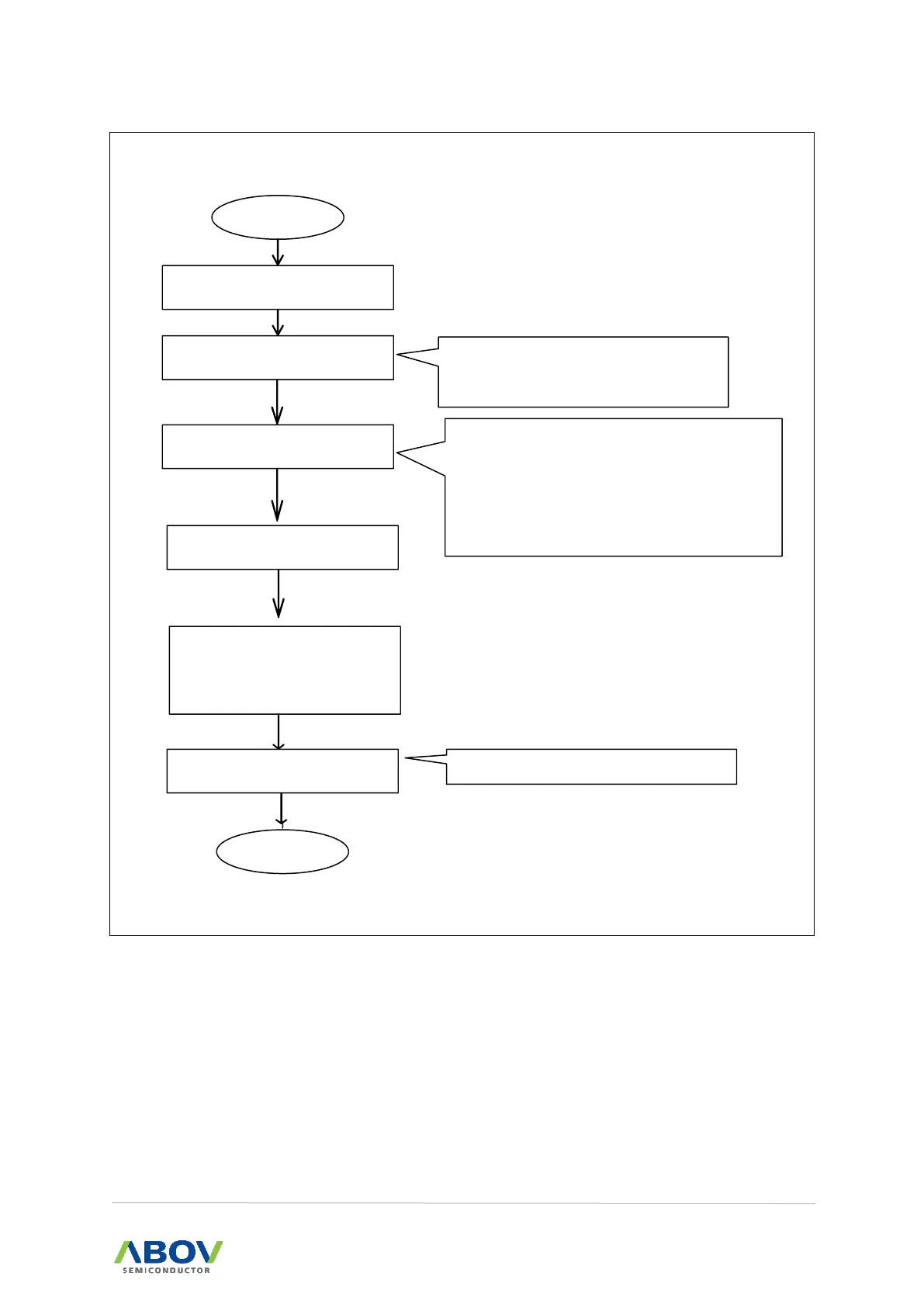

Figure 97. Read Device Internal Checksum (User Define Size)
