A96G166/A96A166/A96S166 User’s manual 9. Watchdog timer

9.1 Setting window open period of watchdog timer

Counting

Start

Window close(50%)

Overflow

time

Window open(50%)

Watchdog reset is occurred,

if “96H” is written to WDTC.

Counter clear & Start again,

if “96H” is written to WDTC.

1. WDT window open period is selected as 50%.

Counting

Start

Window

close(25%)

Overflow

time

Window open(75%)

Watchdog reset is occurred,

if “96H” is written to WDTC.

Counter clear & Start again,

if “96H” is written to WDTC.

2. WDT window open period is selected as 75%.

Counting

Start

Window close

(WDTCNT= “0000H”)

Overflow

time

Window open(almost 100%)

Watchdog reset is occurred,

if “96H” is written to WDTC.

Counter clear & Start again,

if “96H” is written to WDTC.

3. WDT window open period is selected as 100%.

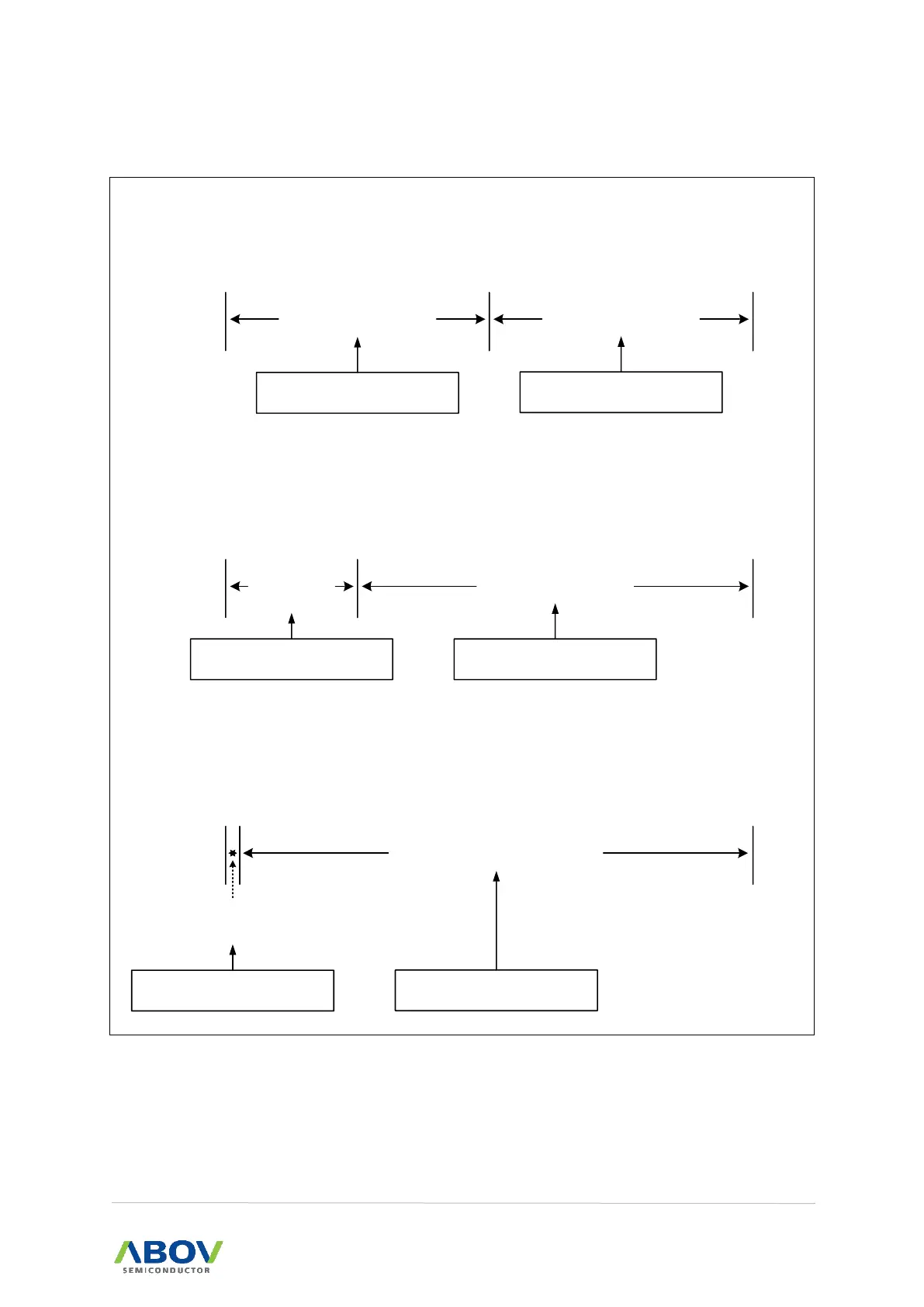

Figure 28. Watch Dog Timer Interrupt Timing Waveform
