A96G166/A96A166/A96S166 User’s manual 22. Development tools
22.4.2 Circuit design guide
When programming flash memory, the programming tool needs 4 signal lines, DSCL, DSDA, VDD,
and VSS. If a user designs a PCB circuit, the user should consider the usage of these 4 signal lines
for the on-board programming.
Please be careful to design the related circuit of these signal pins because rising/falling timing of
DSCL and DSDA is very important for proper programming.
To application circuitDSCL(I)
DSDA(I/O)
R1 (2k ~ 5k)
To application circuit
R2 (2k ~ 5k)
VDD
VSS
E-PGM+ , E-GANG4 , E-GANG6
NOTES:
1. In on-board programming mode, very high-speed signal will be provided to pin DSCL and DSDA.
And it will cause some damages to the application circuits connected to DSCL or DSDA port if the
application circuit is designed as high speed response such as relay control circuit. If possible, the
I/O configuration of DSDA, DSCL pins had better be set to input mode.
2. The value of R1 and R2 is recommended value. It varies with circuit of system.

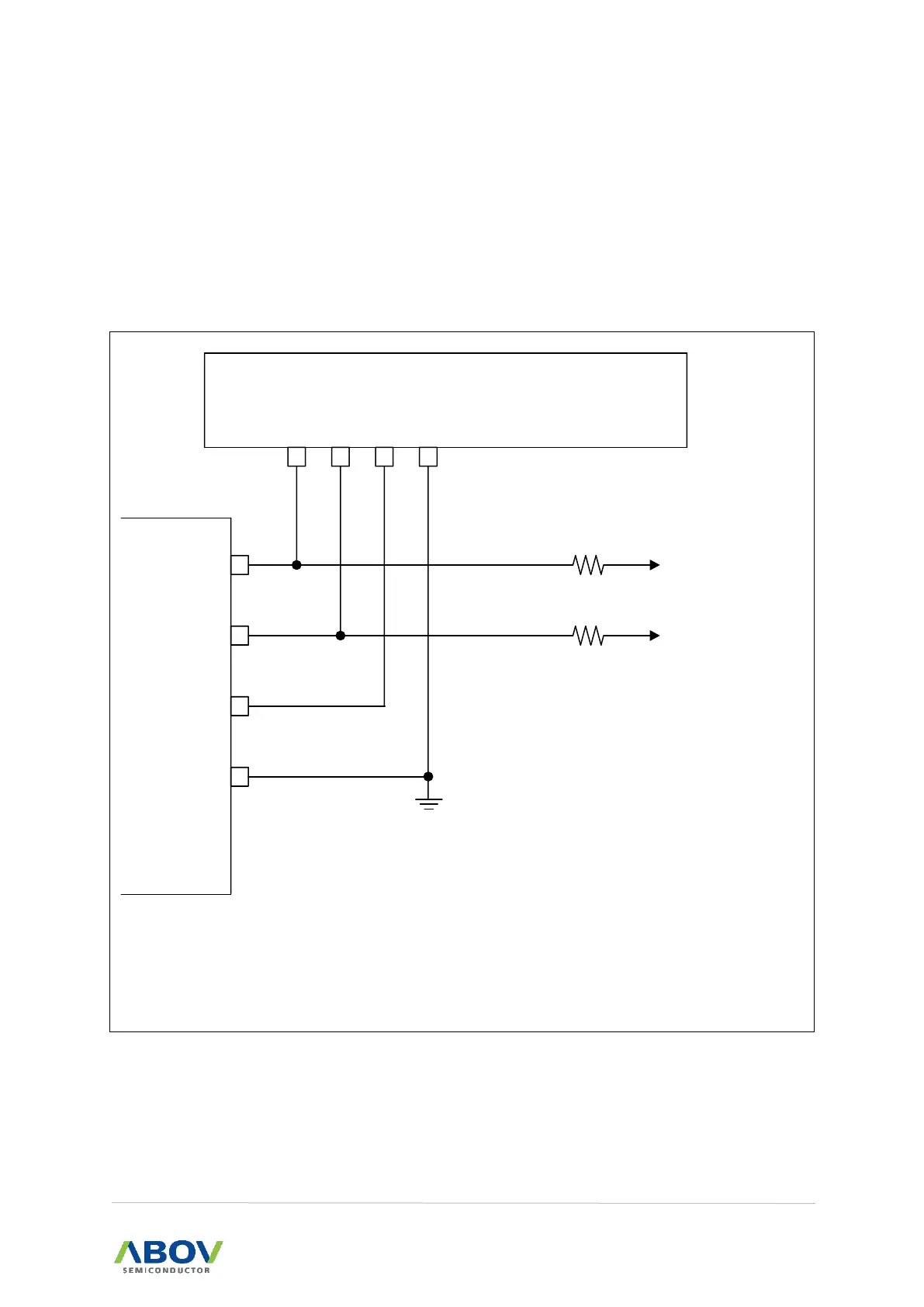

Figure 135. PCB Design Guide for On-Board Programming
