A96G166/A96A166/A96S166 User’s manual 22. Development tools

233

22.5.1 Two-pin external interface

Basic transmission packet

 10-bit packet transmission using two-pin interface.

 1-packet consists of 8-bit data, 1-bit parity and 1-bit acknowledge.

 Parity is even of ‘1’ for 8-bit data in transmitter.

 Receiver generates acknowledge bit as ‘0’ when transmission for 8-bit data and its parity

has no error.

 When transmitter has no acknowledge (Acknowledge bit is ‘1’ at tenth clock), error process

is executed in transmitter.

 When acknowledge error is generated, host PC makes stop condition and transmits

command which has error again.

 Background debugger command is composed of a bundle of packet.

 Start condition and stop condition notify the start and the stop of background debugger

command respectively.

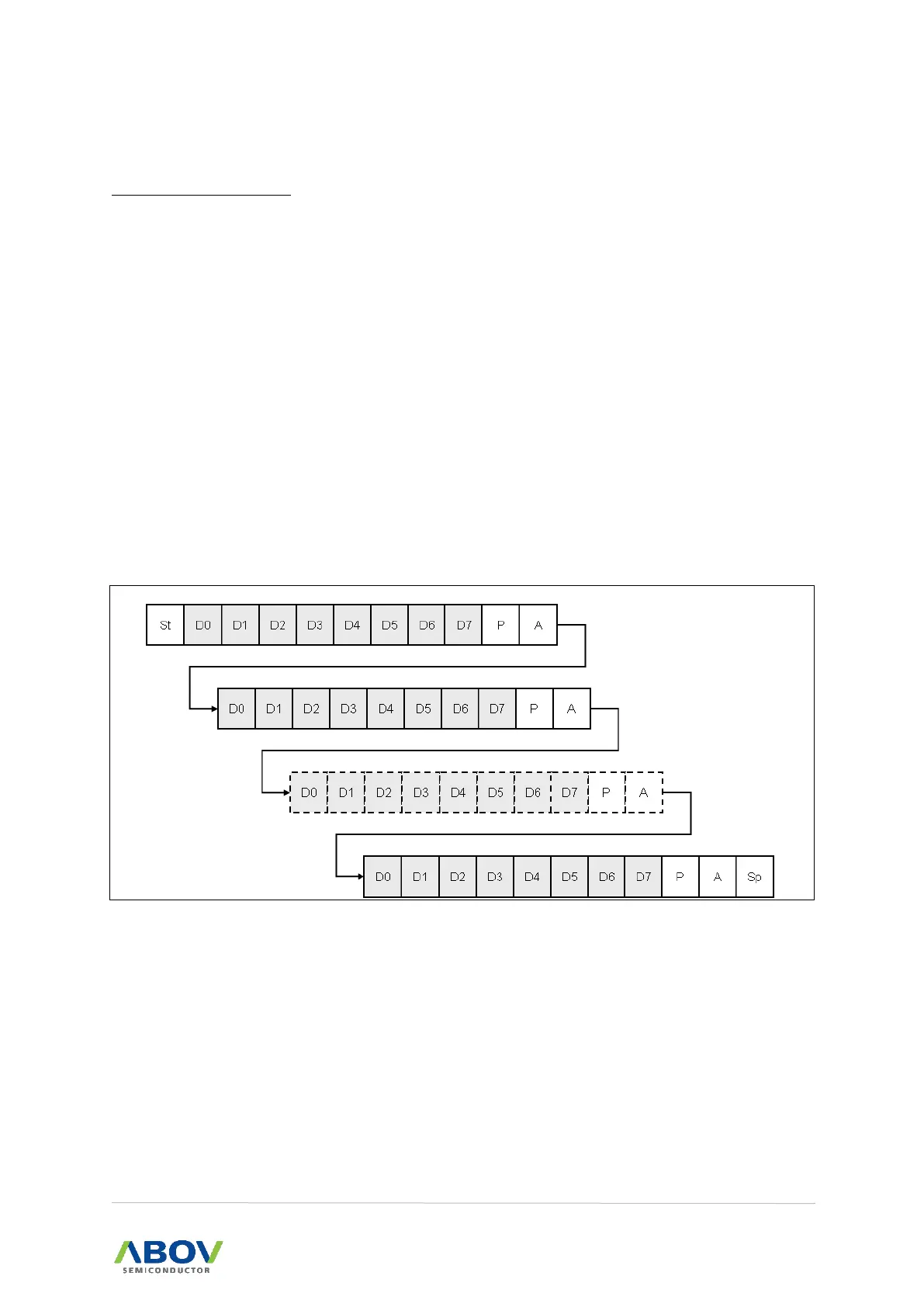

Figure 137. 10-bit Transmission Packet
