A96G166/A96A166/A96S166 User’s manual 2. Pinouts and pin description

A96S166FR

(20TSSOP)

VDD

VSS

P37/XOUT

P35/RESETB/EINT10/T0O/PWM0O

P36/XIN

P32/(T0O)/(PWM0O)

P31/(EC0)/RXD1/(SCL)

P30/(EC2)/TXD1/(SDA)

P25/SCL/(RXD1)

P24/SDA/(TXD1)

P22/EINT9/XCK1/LED6

P00/AN0/DSDA

P01/AN1/DSCL

P02/AN2/EINT0

P03/AN3/EINT1/(T1O)/(PWM1O)

P10/AN7/EINT5/PWM1OB

P11/AN8/EINT6/EC1/BUZO

P12/AN9/EINT11/T1O/PWM1O/LED0

P13/AN10/EINT12/T2O/PWM2O/LED1

P21/EINT8/SS1/LED5

NOTES:

1. The programmer (E-PGM+, E-Gang4/6) uses P0[1:0] pin as DSCL, DSDA.

2. The P04-P06, P14-P17, P20, P23, P26 and P33-P34 pins should be selected as a push-pull output or

an input with pull-up resistor by software control when the 20-pin package is used.

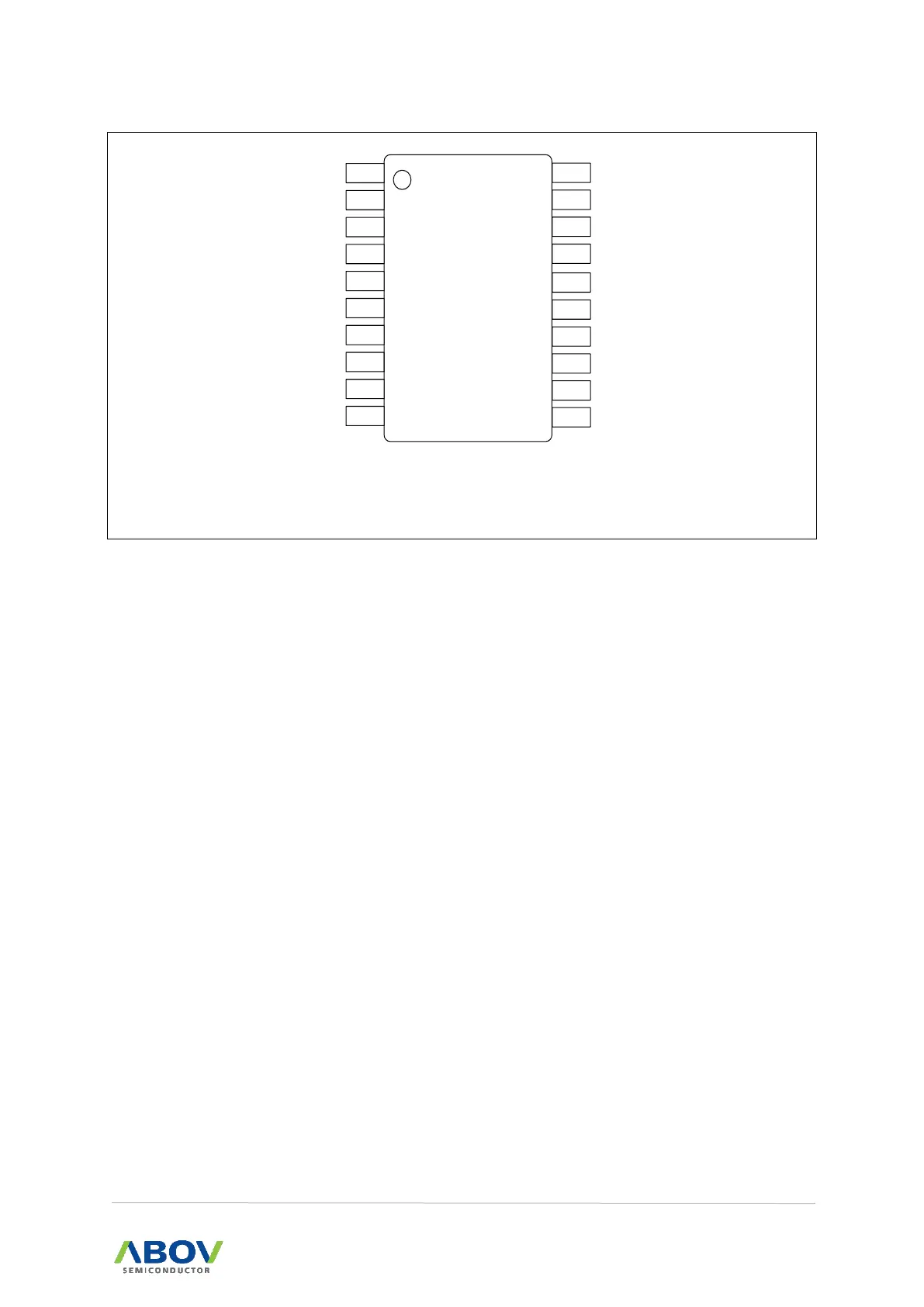

Figure 5. A96S166 20TSSOP Pin Assignment
