A96G166/A96A166/A96S166 User’s manual 18. Reset

177

18.4 Low voltage reset process

A96G166/A96A166/A96S166 has an On-chip brown-out detection circuit (LVR) for monitoring VDD

level during operation by comparing it to a fixed trigger level. Trigger level for the LVR can be selected

by configuring LVRVS[3:0] bits to be 1.61V, 1.68V, 1.77V, 1.88V, 2.00V, 2.13V, 2.28V, 2.46V, 2.68V,

2.81V, 3.06V, 3.21V, 3.56V, 3.73V, 3.91V, 4.25V.

In the STOP mode, this will contribute significantly to the total current consumption. So to minimize

the current consumption, LVREN bit is set to off by software.

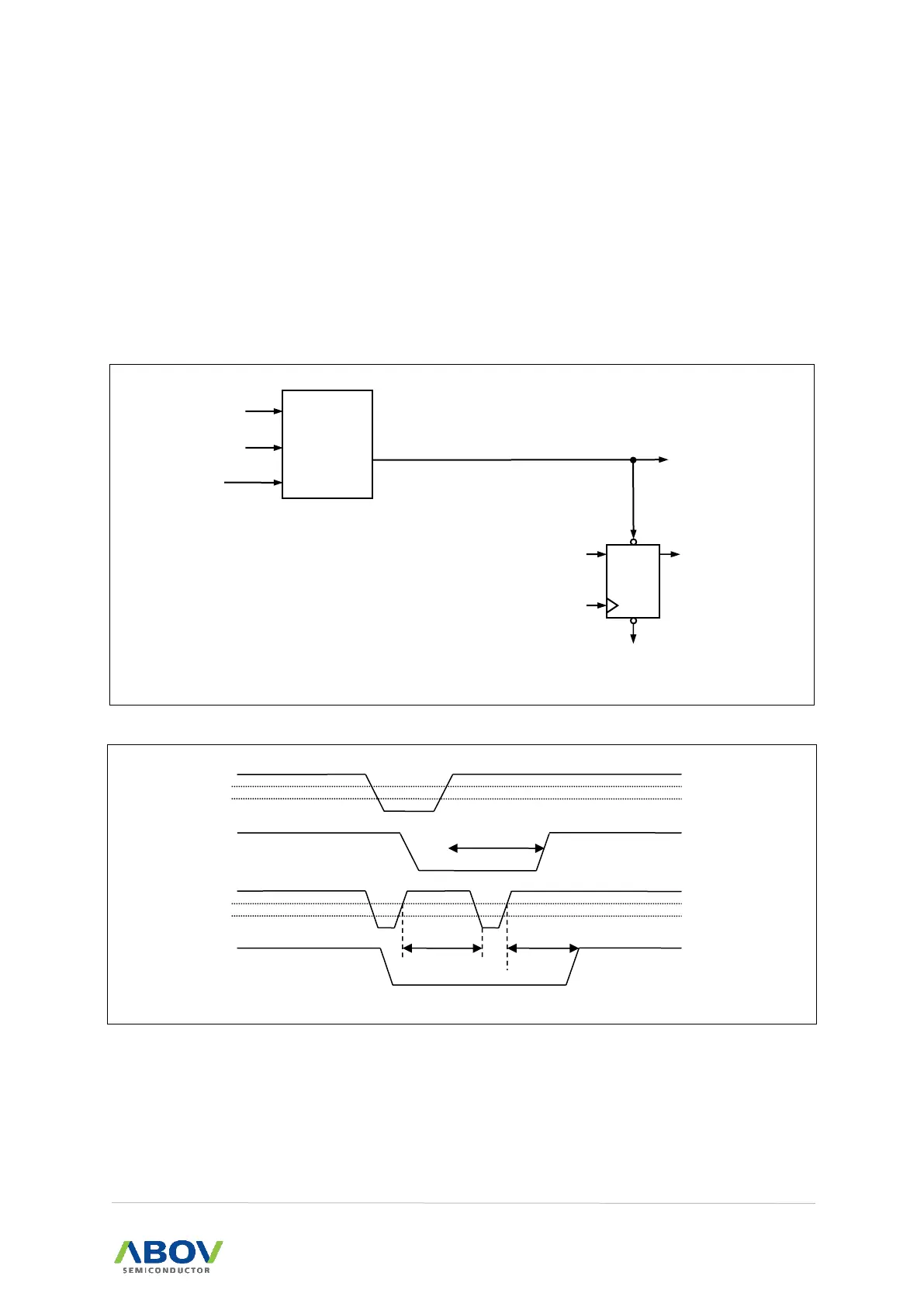

Figure 92. Block Diagram of LVR

Figure 93. Internal Reset at Power Fail Situation

LVRVS[3:0]

LVR_RESETB

Low Voltage

Reset

D Q

External VDD

LVREN

LVRF

(Low Voltage Reset

CPU

Write

SCLK

(System CLK)

nPOR

VDD

Internal

RESETB

VDD

Internal

RESETB

LVR

MAX

16ms

t < 16ms

16ms

LVR

MAX

LVR

MIN

LVR

MIN
