Abov A96G166 - Released Operation of STOP Mode; Figure 84. STOP Mode Release Flow

To Next Page

To Previous Page

17. Power down operation A96G166/A96A166/A96S166 User’s manual

170

17.4 Released operation of STOP mode

After STOP mode is released, operation begins according to content of related interrupt register just

before STOP mode starts (refer to Figure 84). If the global interrupt Enable Flag (IE.EA)is set to `1`,

the STOP mode is released by a certain interrupt of which interrupt enable flag = `1` and the CPU

jumps to the relevant interrupt service routine. Even if the IE.EA bit is cleared to ‘0’, the STOP mode

is released by the interrupt of which the interrupt enable flag is set to ‘1’.

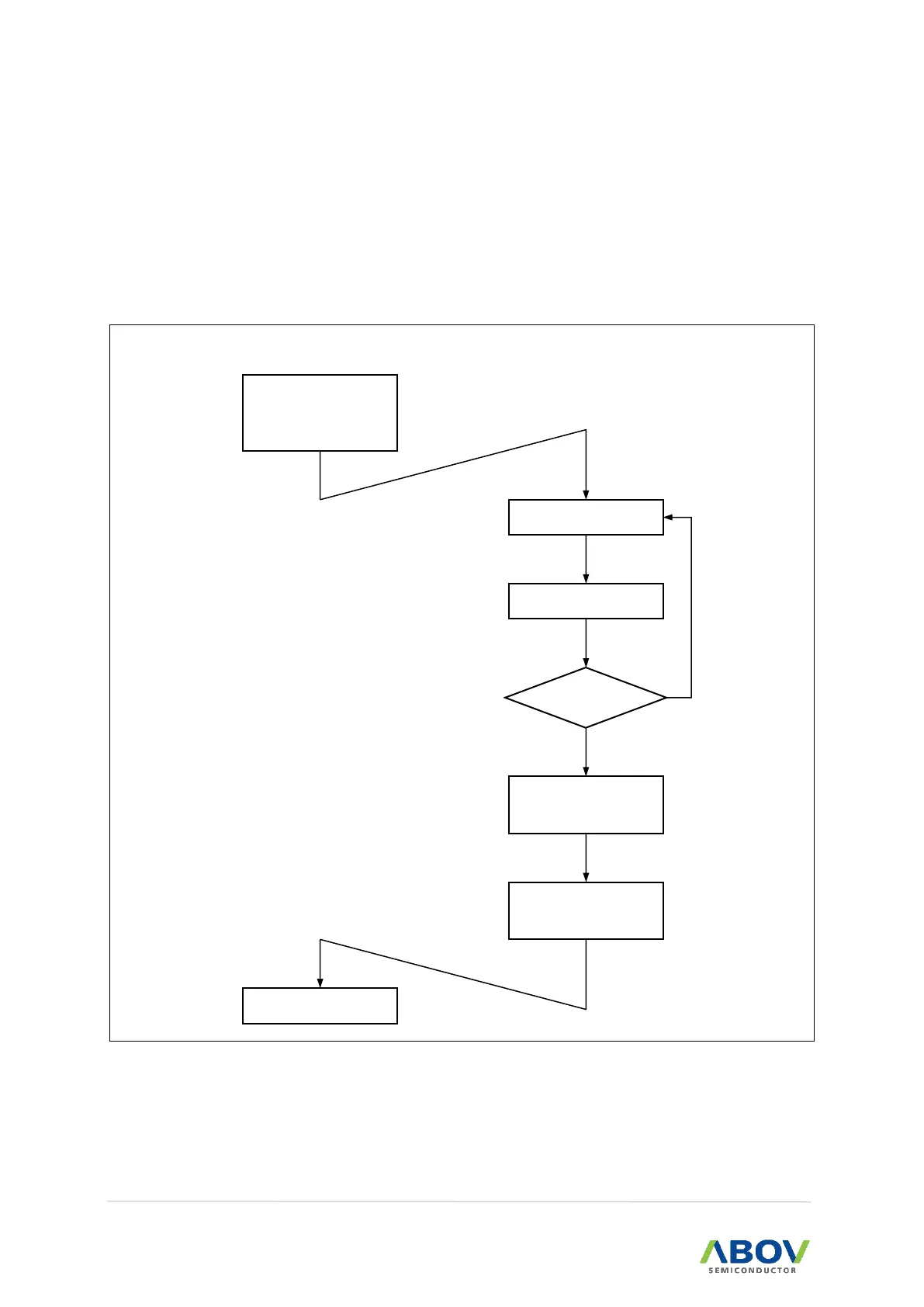

Figure 84. STOP Mode Release Flow

SET PCON[7:0]

SET IEx.b

STOP Mode

IEx.b==1 ?

Interrupt Request

STOP Mode Release

Interrupt Service

Routine

Next Instruction

Corresponding Interrupt

Enable Bit (IE, IE1, IE2, IE3)
