S
ETUP
V
IRTUAL
T
ERMINAL

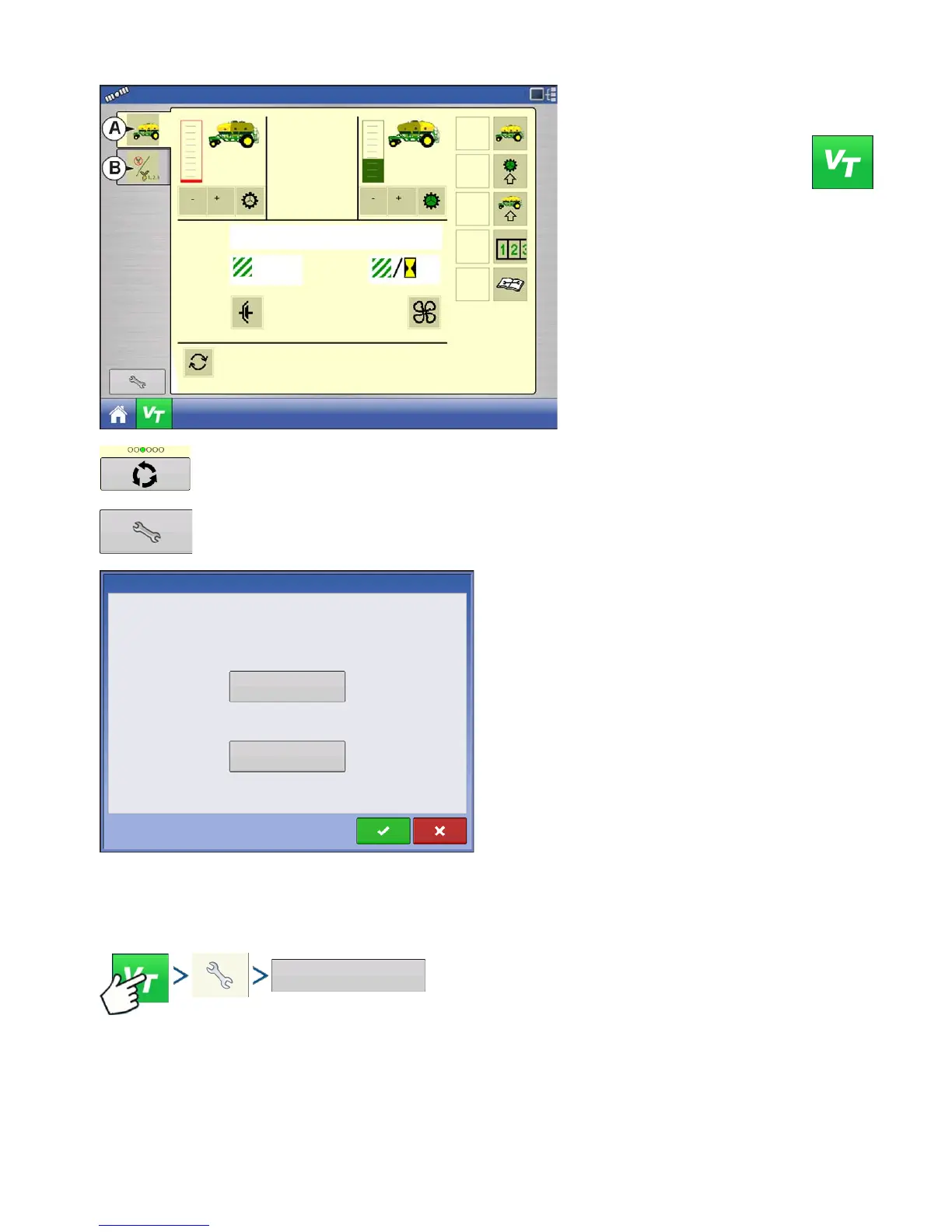

If there are multiple ISO implements
connected, press the VT button
to toggle between Working Sets.
The Working Sets can also be accessed
by pressing tabs (A) or (B) individually.
Advance through multiple screens of buttons. This button remains hidden unless more
than 10 buttons are present.
Opens the Virtual Terminal Settings screen.
Auxiliary
Assign implement functions to ISO compatible inputs.
Clear Virtual Terminal
Allows operator to clear the Object Pools sent to the
display from the implement WSM. After the object pools
have been cleared, the next time the implement is
connected the object pools will be transferred from the
implements WSM to the display again. When this button
is pressed, a warning dialogue box appears with the
following message:
“Are you sure you want to clear the saved interface files
from all virtual terminal devices Each device will resend
its interface the next time it is connected.”
AUXILIARY ASSIGNMENT
Press: Virtual Terminal (VT) button > Setup (wrench) button > Auxiliary Assignments button
lbs/ac
ac
ac/hr
lbs/ac
0.0
0.0
Rate
50.0
74.0
98.5
1
0.0
0
rev/min
Command received. Front Meter
Clutch OFF!
Auxiliary
Assignment
Virtual Terminal Settings
Clear
Virtual Terminal
To Next Page
