Ag Leader Integra Display User Manual

49 Ag Leader PN 4002083 Rev. N
S ETUP
F
IELD
O
PERATIONS

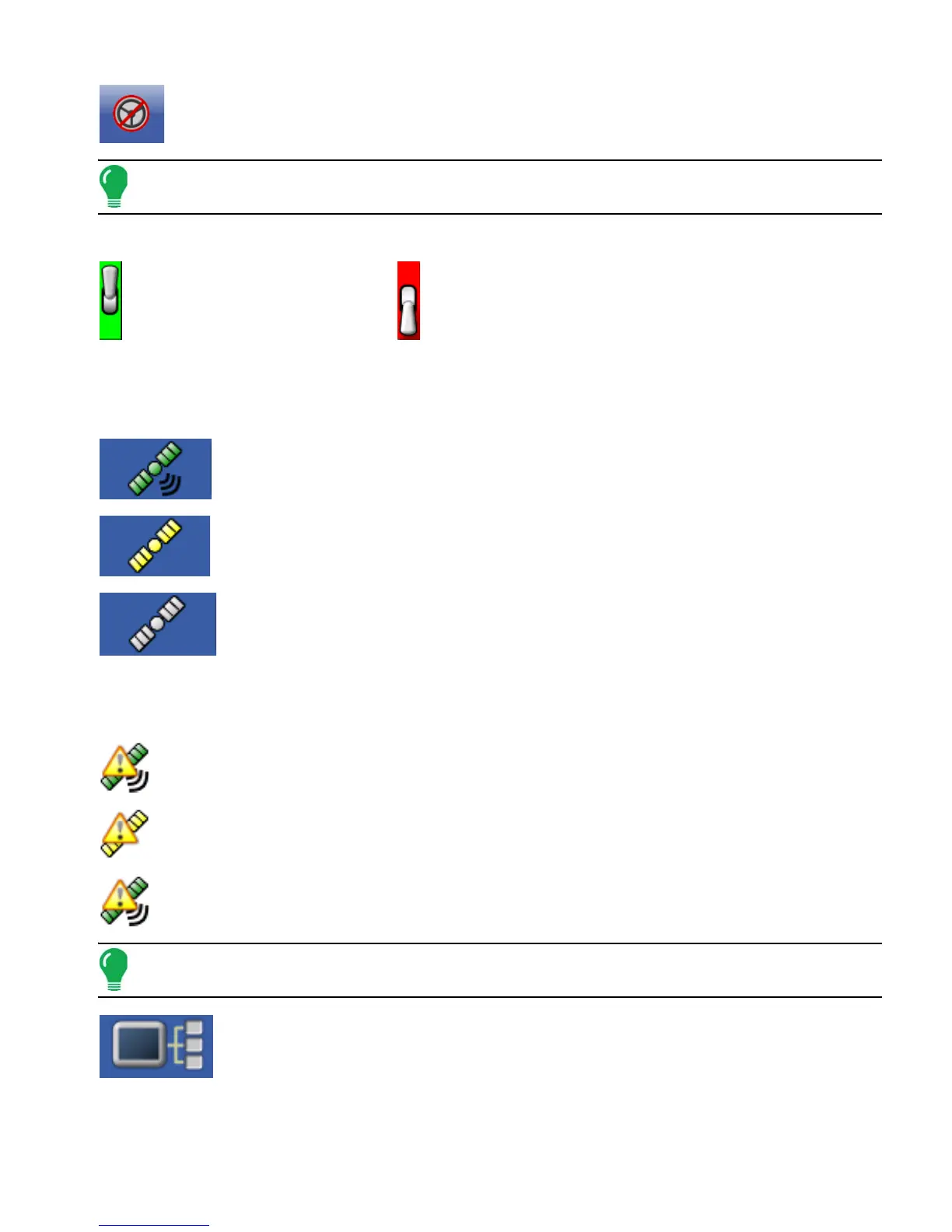

Engage - Not Ready
Grey with a red circle and slash if the autosteer system is off and unable to engage.
Note: For more information, see “Guidance” on page 123.
Master Switch Status. This bar shows that the Master Switch is active.
Master Switch - ON (GREEN) Master Switch - OFF (RED)
GPS SIGNAL INDICATOR
The GPS button in the upper left-hand corner of the Map screen, displays the following colors:
Differential GPS
Green if you are receiving a differential GPS signal
GPS - No differential
Yellow if you are receiving GPS, but no differential signal
No GPS
Grey if you are receiving no GPS signal.
The Flex Mode icon appears for ParaDymes and GeoSteers using Flex Mode. Flex mode provides
continuity of position solution to maintain automated steering by seamless flexing (transitioning) to a
lower accuracy mode when a higher accuracy mode is lost; such as loss of the RTK radio link.
Flex Mode - ON (GREEN)
Flex Mode - Exceeded (YELLOW)
StableLoc - ON (GREEN)
Note: For more information, see the ParaDyme Insert.
The Device Information button opens screens that display Device Information, Memory,
Display, and display diagnostics.
