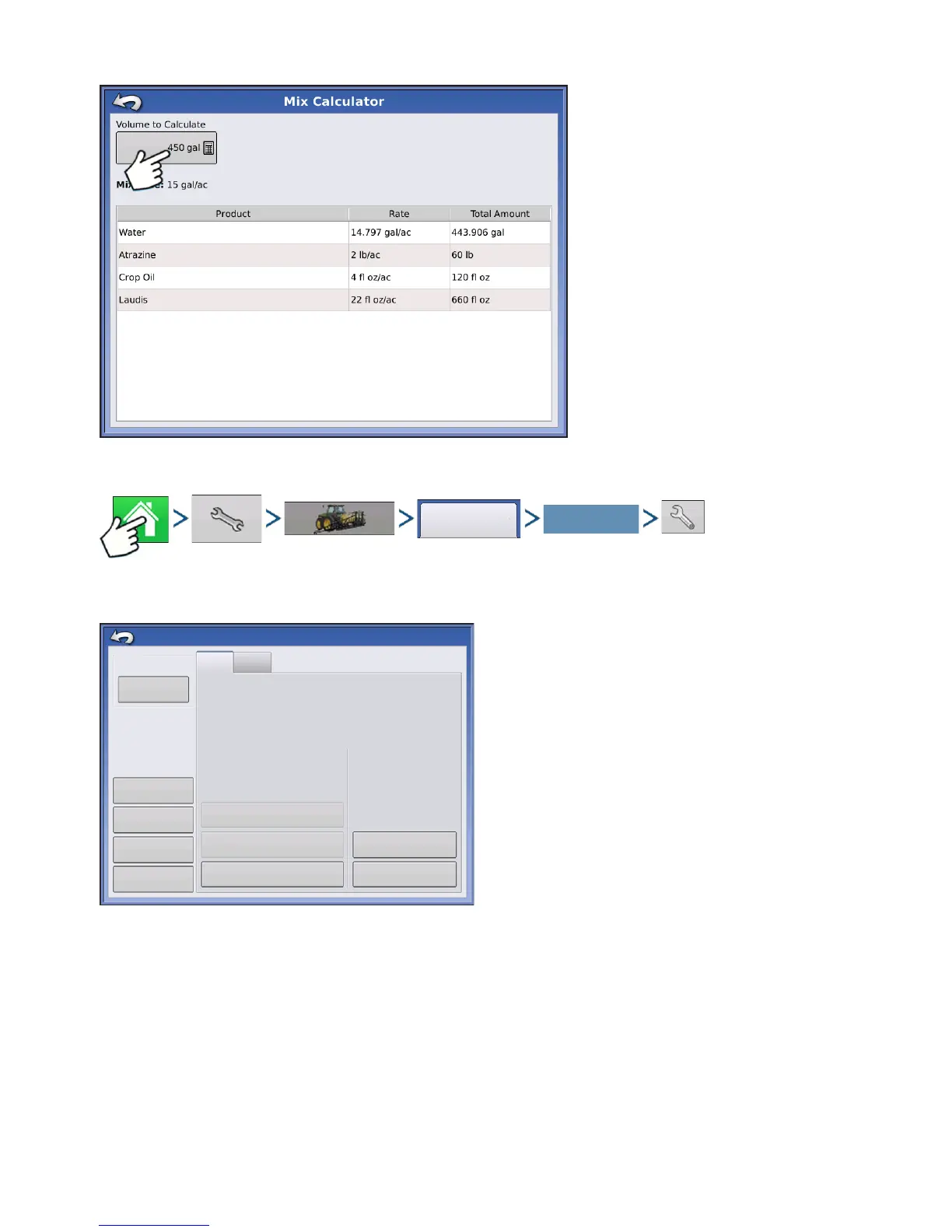

Press the Volume to Calculate button
and input the total volume.
Table will give user the amount of each
product to put in the tank.
CONFIGURATION SETUP
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > your
specific configuration > Setup (wrench) button
The Configuration Setup screen appears. Screen
will vary depending on configuration. Process may
include the following tasks:
Configuration Settings:
• Adjust Implement Switch Settings (for area logging)
If using an implement switch in a area logging planting operation, adjust the Implement Switch Settings. For
more information, see
“Equipment Settings” on page 79 .
• Adjust Equipment Settings (for Rate Control)
DirectCommand configurations should adjust settings at the Equipment Configuration Settings screen. For
more information, see
“Equipment Settings” on page 79 .
• Speed Input Setup
For more information, see “Speed Input Settings” on page 80 .
Configuration
Select Your Specific
Configuration
80 ft
Vehicle
Offsets
Norac
UC5
Crop
Sensor
Speed
Input
Auxiliary
Input
Automatic
Swath Control
Equipment
Settings
Calibrate
Pressure
Controller
Settings
Offsets
Implement: JD 4630
Full Swath:
Sections:
5
Controller: DirectLiquid
Serial Number:
2003750001
Device:
DirectCommand
Type:
Liquid
Flow Meter Cal (pls/gal)
inf
Vehicle
JD 4630
1
2
Configuration Setup
