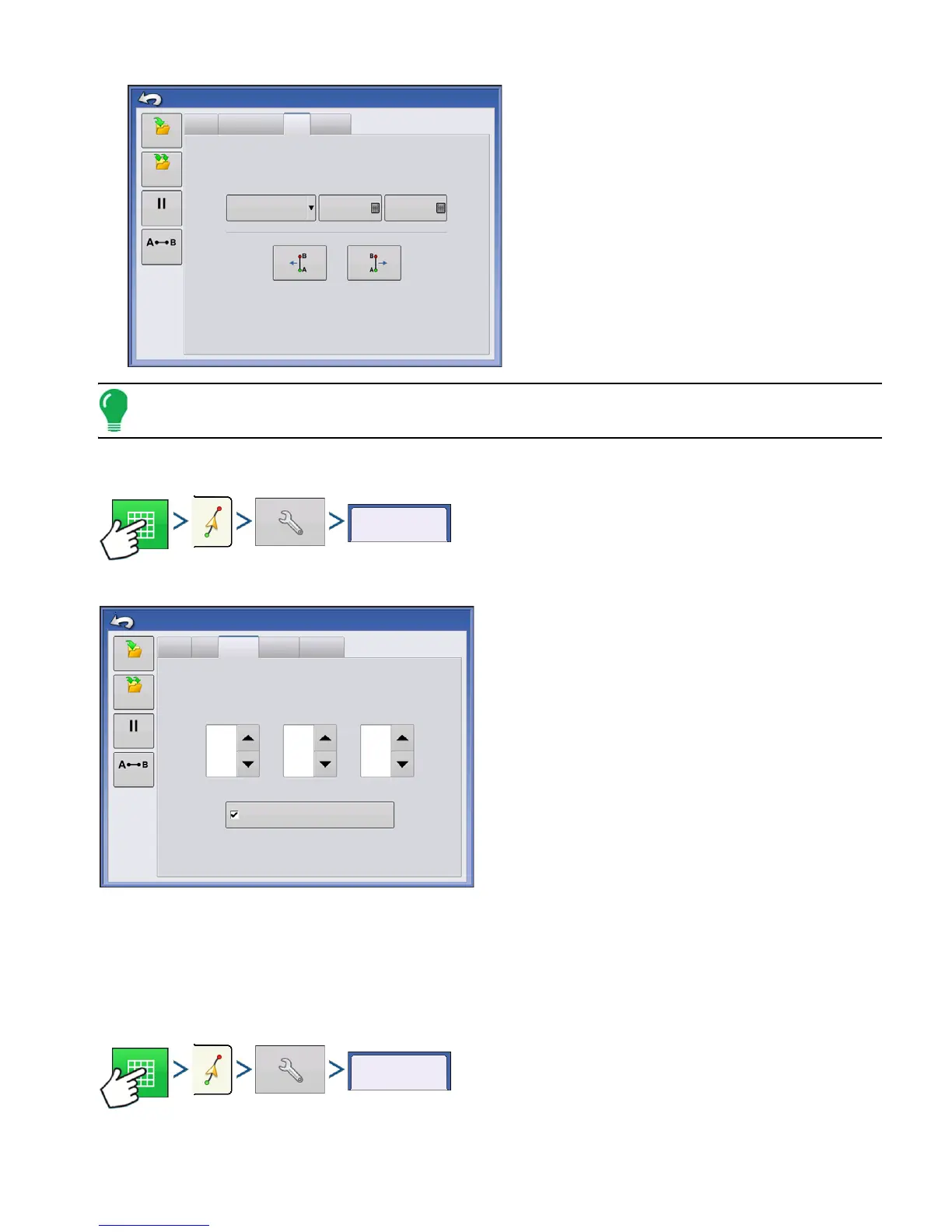

Shift moves all of the swaths by a specified distance
to the left or right, (including the AB line). The swaths
can be shifted by a distance or number of rows.
•
Shift by Distance -
enter the distance that you
wish to shift the pattern. Use the Shift Left and Shift
Right buttons to enter the direction and to accept
change
•
Shift by Rows
- enter the number of rows you wish
to shift the pattern. Use the Shift Left and Shift Right
buttons to enter the direction and to accept change
Note: The Shift setting is not available with the SmartPath patterns.
STEERING
Press: Map button > Guidance tab (in Mapping Toolbox) > Setup (wrench) button > Steering tab
Line Acquisition — determines how aggressively
the system steers onto the desired steering path.
The ideal setting allows the system to take the
shortest route without excessively sharp or sudden
movements of the vehicle.
Steering Response — controls the oscillations of
the vehicle when it is on the desired path.
Reverse Response — (ParaDyme Only) controls
the oscillations of the vehicle when it is on the
desired path in reverse.
Log coverage while AutoSteer is engaged checkbox
Coverage while engaged is available when an AutoSteering system (OnTrac2+, GeoSteer, ParaDyme)
is connected. User can still manually control coverage logging with the on-screen coverage button.
AutoSwath is unaffected by this selection.
ONTRAC TUNING
Press: Map button > Guidance tab (in Mapping Toolbox) > Setup (wrench) button > OnTrac Tuning tab
