CAUTION: For proper machine performance and accuracy, Product Density should be measured for every
application load.

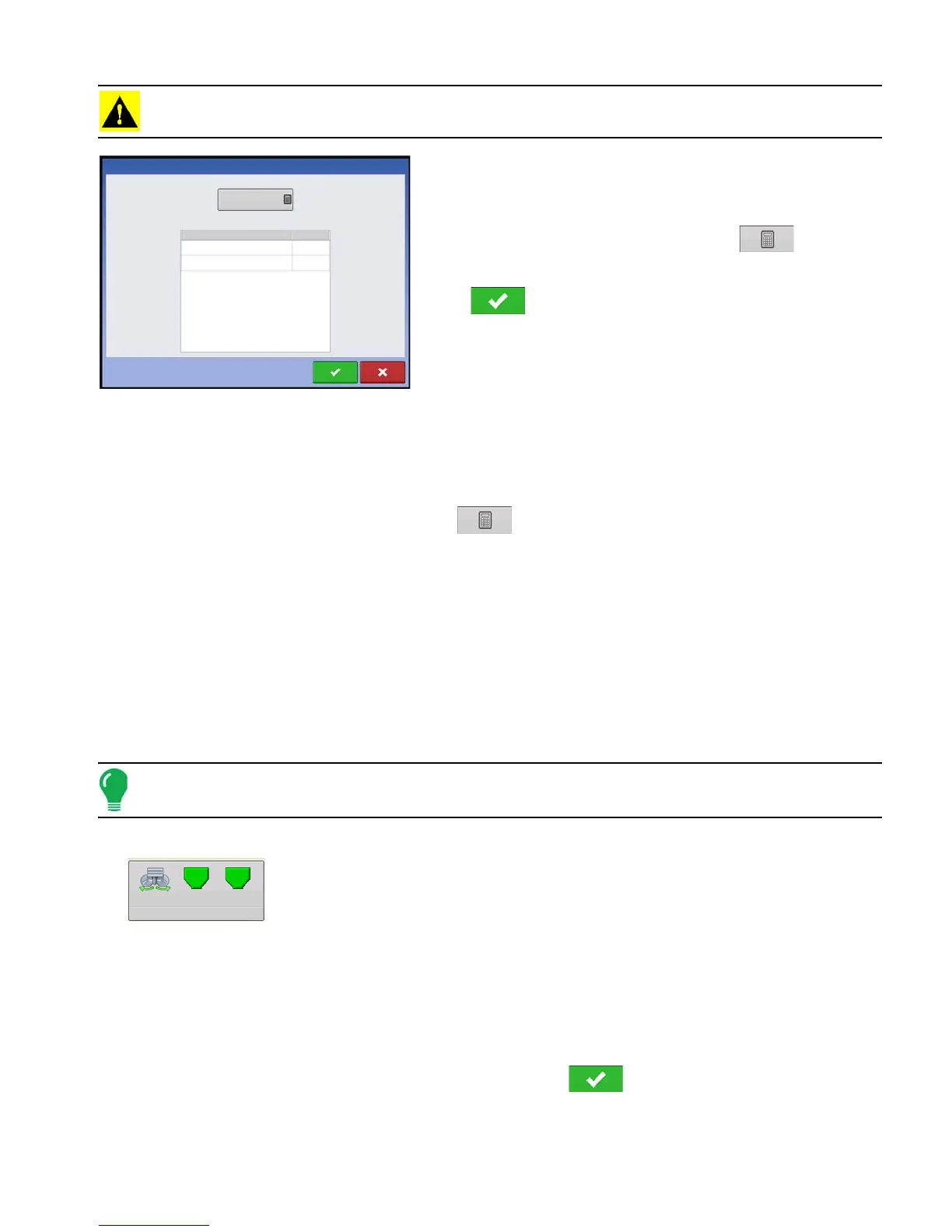

The Conveyor Rate button opens a setup screen where the
conveyor rate can be inputted and a table of previously
applied products and conveyor rates is shown.
Press the conveyor rate button and press to input
desired conveyor rate.
Press to accept the new conveyor rate and return to
the Spreader Control window.
Fan Frame & Feed Gate Actuator Settings
These are optional settings used by operators using a New Leader Linear Actuator module.
• Fan Frame
Checking the Fan Frame check box enables the Fan Frame Actuator. Displays the distance between the
spinner bed and the spinner assembly.
Press
to edit this value.
• Feed Gate
Checking the Feed Gate check box enables the Feed Gate Actuator.
Spreader Control: Routine Operations
The Spreader Control screen has three buttons, Chain Oiler, Static Calibration and In-Field Calibration,
which are described below and on the following pages.
Spreader Control: Chain Oiler
If you are using a Chain Oiler, you can automatically perform a chain oiling routine by pressing the Chain
Oiler button on the Spreader Control screen and following the steps below.
Note: Perform a chain oiling routine daily.
1. Press Spreader Control button
To begin, press the Spreader Control button to open the Spreader Control screen. At
the Spreader Control screen, press the Chain Oiler button.
2. Acknowledge the first warning
Manually disable or shut off the spinner hydraulic circuit.
3. Enter a Routine Duration
Enter the routine time that it takes to turn the conveyor one revolution.
4. Press Start
Press the Start button, and when the routine is finished press .
5. Acknowledge the second warning.
Return the spinner hydraulic control to a field-ready condition.
Conveyor Rate
Conveyor 1 Rate
O ft
3
/rev
Conveyor Rates for Products Previously Applied
Product
ft
3
/rev
Potash
MAP
0.2560
0.0000
