Ag Leader Integra Display User Manual

326 Firmware Version 6.0

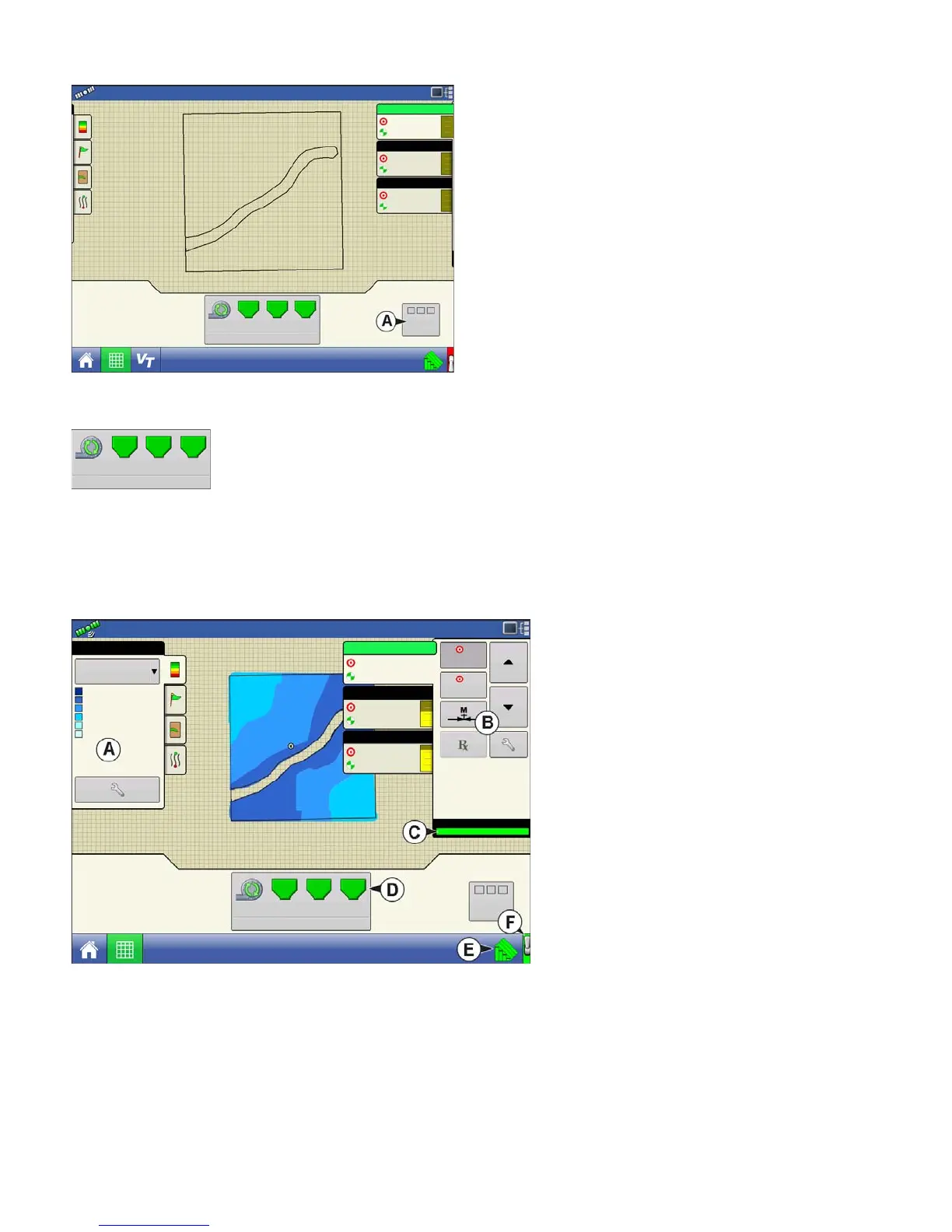

The Start Prime button (A) begins the meter prime
routine and each meter shaft will rotate the number
of revolutions as defined on the Air Cart Prime
Screen.
RUN TIME OPERATIONS
During Run Time Operations, Strip Till operators can press the Strip Till Control
button to open the Strip Till Control screen. At this screen, you can adjust Product
Density, Conveyor Rate and other settings.
• Each of these settings described below must be set for each individual Product Channel (bin).
• The
Product Density , and the Conveyor 1 Rate are all stored with each combination of product and
control channel.
Below is an example of a three channel Strip Till operation setup as a planting configuration.
• (A) Mapping Toolbox
• (B) Product Control Toolbox
• (C) Metering Indicator
• (D) Strip-till Control button
• (E) AutoSwath
• (F) Master Switch Status (on)
STRIP-TILL (THREE-BIN CONFIGURATION)
• Strip Till Control button
Displays the status of the product control channel. The Meter Shaft Speed (in RPM) is shown underneath
the bin icon; the Fan Speed (also in RPM) is shown at bottom. When the fertilizer bin is grey no product
application is taking place. When product is being applied, the fertilizer bin icon changes color to green.
1.91 ac
15.0 mph
0.00
MAP
Potash
lb/ac
lb/ac
lb/ac
0.00
0.00
0.00
0.00
0.00
N/A
15
Start
Prime
1
23
15
20
3500
1
2
3
RPM
3500
1
RPM
2
3
20
15
15
70.6 ac
9.0 mph
85.00
Wheat
Potash
lb/ac
lb/ac
lb/ac
Superphosphate
85.00
30.00
30.00
30.00
30.00
lb/ac
85
84
1
2
123.4 lb/min
Flow:
80 ft 0 in
100%
20
15
3500
Start
Prime
124 +
104 - 124
84 - 104
64 - 84
44 - 64
0 - 44
Rate
Wheat
15
RPM
1
2
3
