303 Ag Leader PN 4002083 Rev. N
A
PPLICATION
S
PREADER

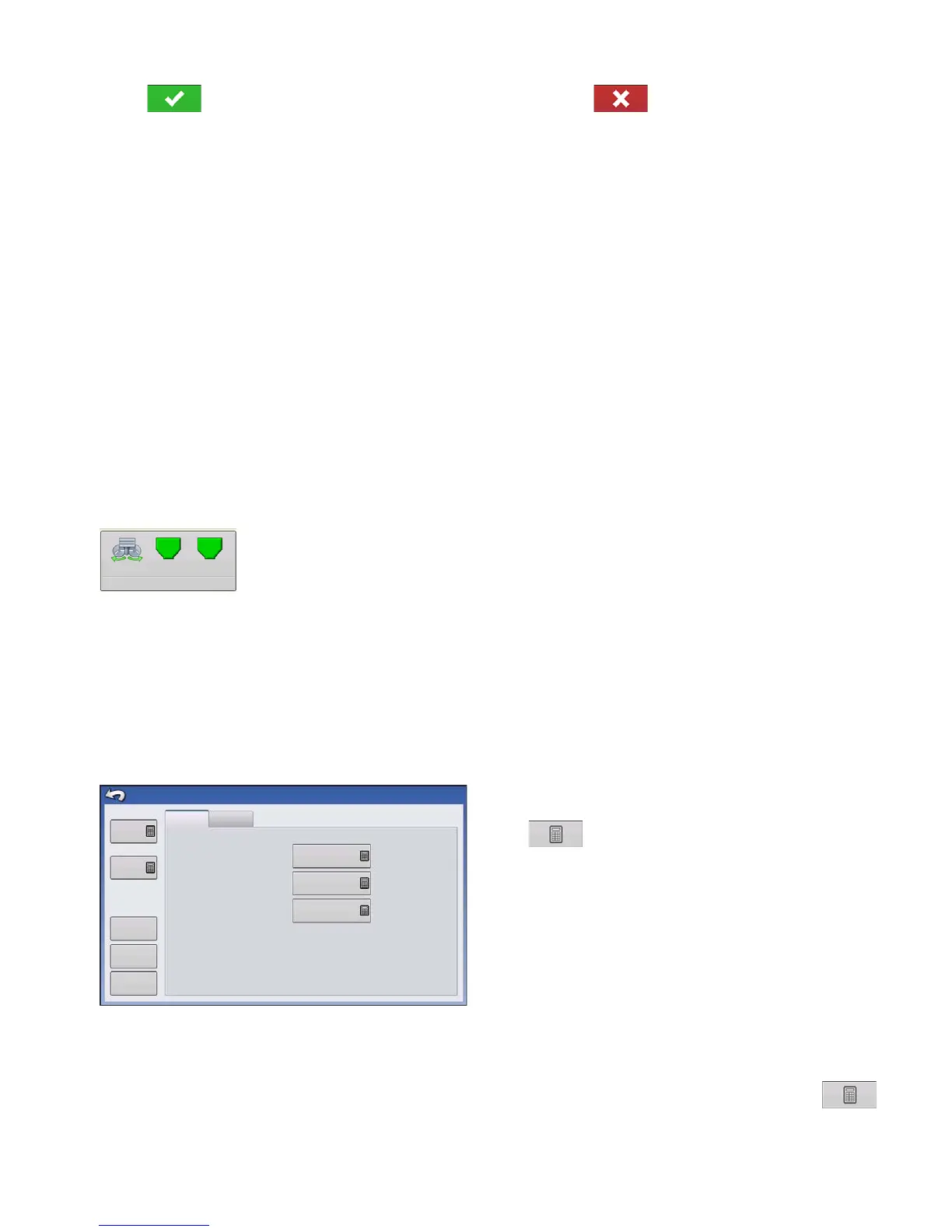

Press to turn spinners on and clear warning dialog. Press to keep spinners from running
and clear warning dialog.
SPINNER SPREADER, WITH TWO-BIN
CONFIGURATION
• Spreader Control button
Displays the status of the product control channel. The Conveyor Speed (in RPM) is shown underneath the
bin icon; the Spinner Speed (also in RPM) is shown at bottom. Press the Spreader Control button to display
the Spreader Control screen and settings. These settings include Spread Width, Spinner Speed (if enabled),
Product Density, Feed Gate Opening, and Conveyor Rate. For more information, see section beginning at
“Spreader Control screen” on page 303
.
• Conveyor Indicator
The Conveyor Indicator is shown at the bottom of the Product Control toolbox when the Map screen is
shown in Zoom to Extent. When the Map screen is shown in the Zoom to Details view or Perspective View,
the conveyor indicator is shown as a bar that appears behind the vehicle icon.
RUN TIME OPERATIONS
During Run Time Operations, Spinner Spreader operators can press the Spreader
Control button to open the Spreader Control screen. At this screen, you can adjust
Spread Width, Spinner Speed, Product Density and other settings.
• Each of these settings described below must be set for each individual Product Channel (bin).
• Changed settings do not take effect until verified. However, if your machine is equipped with Fan Frame
& Feed Gate Actuators, and you have also purchased a New Leader Linear Actuator unlock code, the
settings on the spinner bed will change automatically.
• The
Spread Width
,
Spinner Speed
,
Product Density
,
Feed Gate 1 Opening
and the
Conveyor 1 Rate
are all stored with each combination of product and control channel.
Spreader Control screen
• Spread Width
Press
to edit the value.
• Spinner Speed
The spinner speed required for accurate product
placement in relation to the spread width setting.
- The spinner speed is controlled automatically based upon
this setting when the system uses an optional PWM
spinner speed control valve.
- To accurately determine Spinner Speed settings you
should perform a spread pattern catch test. See “Spreader
Control: Static Calibration” on page 306.
• Product Density
This density value (shown in pounds per cubic foot, or lb./ft.3), is stored with each product.
Press
to edit if needed.
Spreader Control
Channel 1
Channel 2
Spread Width
60 ft
Spinner Speed
600 rpm
58 lb/ft
3
2 in
0.256 ft
3
/rev
Product
Conveyor 1
Feed Gate 1
In-Field
Static
Chain
DAP
