138 Firmware Version 6.0

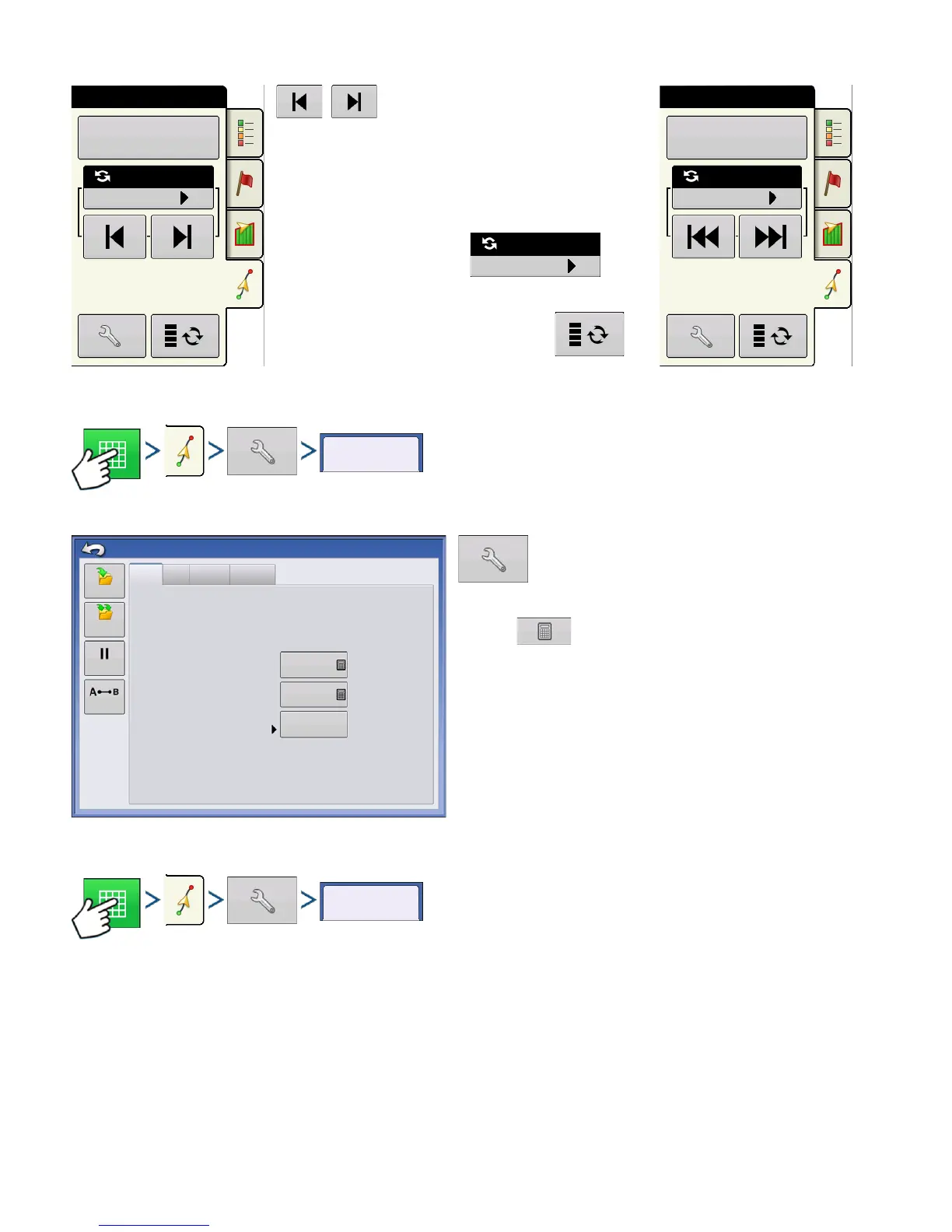

Nudge allows you to adjust the
swaths by a specified distance.
Small Nudge (single arrow) shown on left.
Large Nudge setting (double arrow) shown on
right (Straight Patterns Only).
Use Nudge toggle button to
switch between Small and Large Nudge setting.
Use Mapping Toolbox toggle button to
switch the menu between Tramline and Nudge on
the Mapping Toolbox, if Tramlines are enabled.
Press: Map button > Guidance tab (in Mapping Toolbox) > Setup (wrench) button > Nudge tab
Press the Setup (wrench) button then the
Nudge tab to make adjustments to Nudge settings.
•
Press
to enter a distance for increment that
the swaths will move with each successive press of the
left or right arrows buttons on the Guidance Tab.
• To clear out the adjustment and go to the original
position, press
Clear Nudge
.
Screen shows Small and Large increment settings
for Straight path. Other Patterns will only show the
small increment setting.
SHIFT
Press: Map button > Guidance tab (in Mapping Toolbox) > Setup (wrench) button > Shift tab
Reset
Nudge: 30.0 in
Total: 0.0 in
Straight
Reset
Nudge: 90.0 in
Total: 0.0 in
Straight
Nudge: 30.0 in
Total: 0.0 in
Nudge
Tramlines
Shift
Lightbar
Pause
Small Increment:
Clear Nudge
Guidance Options
Remark A
Large Increment:
30.0 in
Total Nudge:
90.0 in
0 in
Save
Save
Group
To Next Page
