SEED MONITOR THRESHOLDS
Press: Map button > Settings button > Seed Monitor tab > Thresholds button
Adjust Seed Tube Monitor Module alarm thresholds.

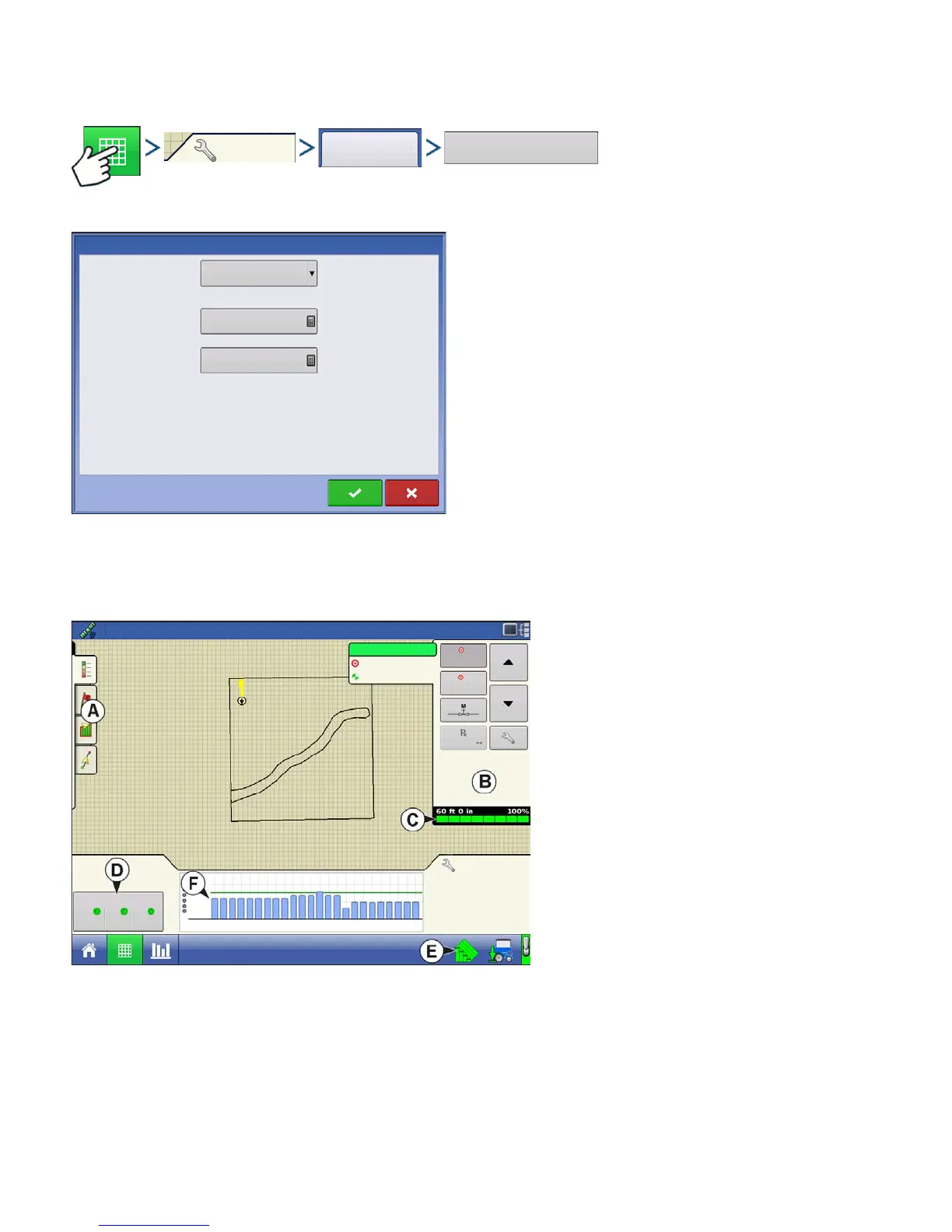

SEEDCOMMAND MAP SCREEN EXAMPLES
Below is an example of a SeedCommand operating configuration. The screen shows a Seed Tube
Monitor Module (STMM), with Row Shutoff and three Stepper Motor Drives.
• (A) Mapping Toolbox
• (B) Product Control Toolbox
• (C) Section Indicators
Shown at the bottom of the Product Control
Toolbox.
• (D) Meter RPM button
Appears at the bottom right hand side of the
Map screen, displays the number of
hydraulic or stepper seed motors and their
speed, shown in Revolutions Per Minute
(RPM). Pressing the Meter RPM button
summons the Seed Rate Planter Control
screen, to calibrate and prime the seed
meters. See
“Priming Seed Rate Meters” on
page 179
and
“Calibrating Seed Rate Meters”
on page 180
.
• (E) AutoSwath
The Seed Tube Monitor Module provides population monitoring for DICKEY-john® seed tube sensors
used on several different brands of planters. Configure the Seed Tube Monitor Module in the following
order.
