51 Ag Leader PN 4002083 Rev. N
S
ETUP
F
IELD
O
PERATIONS

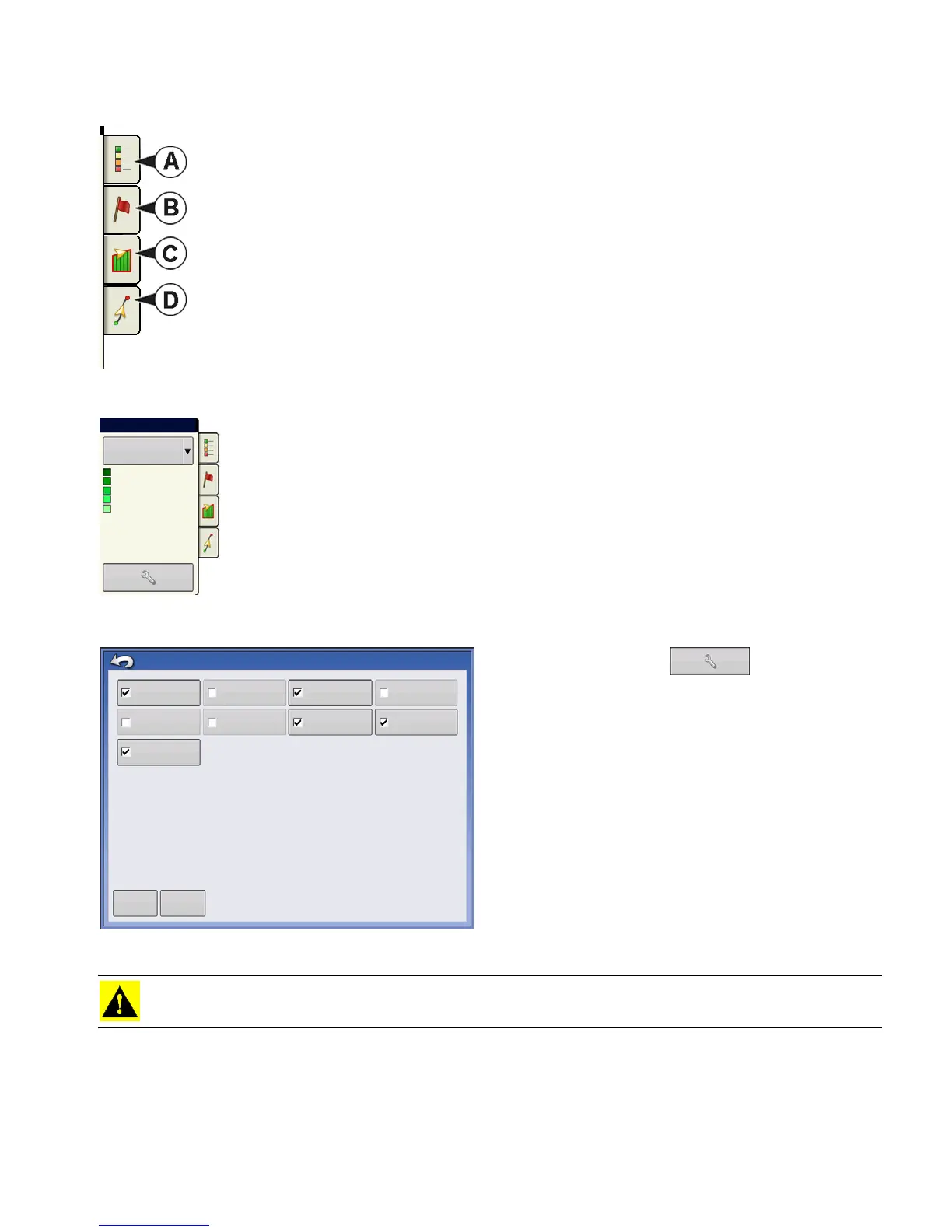

MAPPING TOOLBOX
At the upper left hand side of the Map screen is the Mapping Toolbox. Press any of the
four buttons on the toolbox and it expands. The toolbox consists of the following buttons:
• (A) Map Legend
• (B) Map Markers
• (C) Field
• (D) Guidance
The Map Legend, Map Markers and Field buttons are explained in the rest of this chapter.
The Guidance button is described in
“Guidance” on page 123.
Map Legend tab
Press the Map Legend button at the top of the Mapping Toolbox, and the Legend
appears. User can choose between Rate or Coverage using the drop-down menu.
Map Options
Press the Legend Setup (wrench) button,
and the Map Options screen appears. Here the user
can select map options, clear the map, and load a
reference map
• Clear Map
Permanently removes on-screen map from the active
field operation, but the log data will still be exported to
the USB drive.
• Load Reference
Loads a list of maps of previous operations performed in
that field. For each operation, you can view As-Applied
or Coverage attributes (and Varieties if you are
performing a Planting operation).
CAUTION: Once you clear the map, this information cannot be retrieved.
Product
Rate
205+
185 - 205
165 - 185
145 - 165
0 - 145
Map Options
Load
Reference
Data
Guidance
Boundary
Marker
Reference
Rx
Tile
Grid
Topography
Clear Map
