Tank Alarms

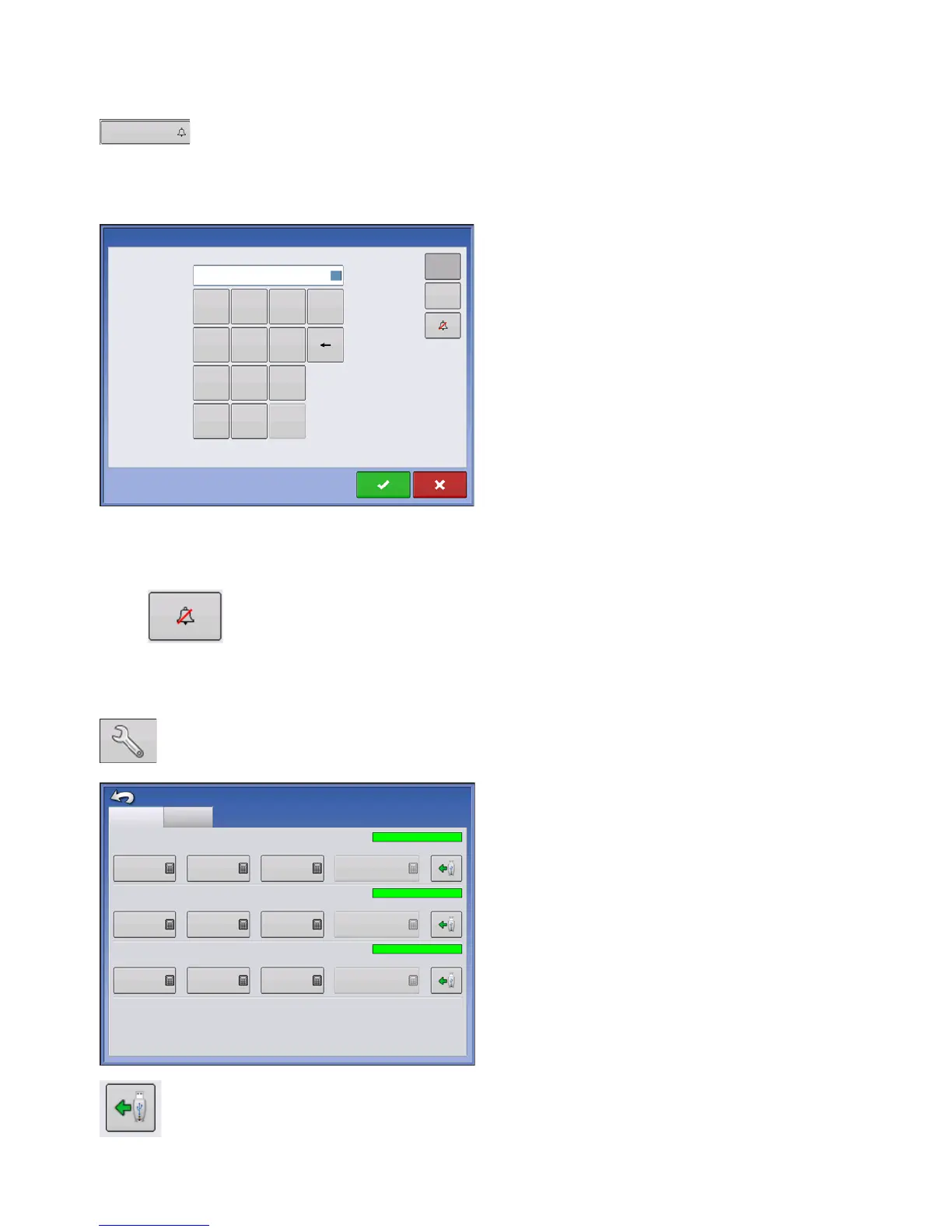

The Container Alarm button, which appears at the bottom of the Container Level portion of
the Rate screen, displays the capacity of your tank as well as the percentage at which the
Low Container Level warning will sound. To adjust these settings, press the button and the Container
Alarm screen appears.
If you wish to adjust your container level warnings,
use the following buttons on the right-hand side of
the Container Alarm screen to make these
adjustments.
• The percentage (%) button sets the warning threshold
according to the percentage of solution left in the tank.
In the example above, the threshold is set at 10 percent.
• The units of measurement icon sets the warning threshold according to the amount of solution left in the
tank. This icon is named according to the container’s units of measurement you specified during the
Controller configuration procedure.
• The Disable Low Container Level button, which appears as a bell with a red slash across
it, disables the Low Container Level warning.
LOADING PRESCRIPTIONS
To load a map-based prescription file, press the Rate Setup button on the Product Control
Toolbox.
The Rate Control Settings screen appears.
1. Press the Load Prescription button.
