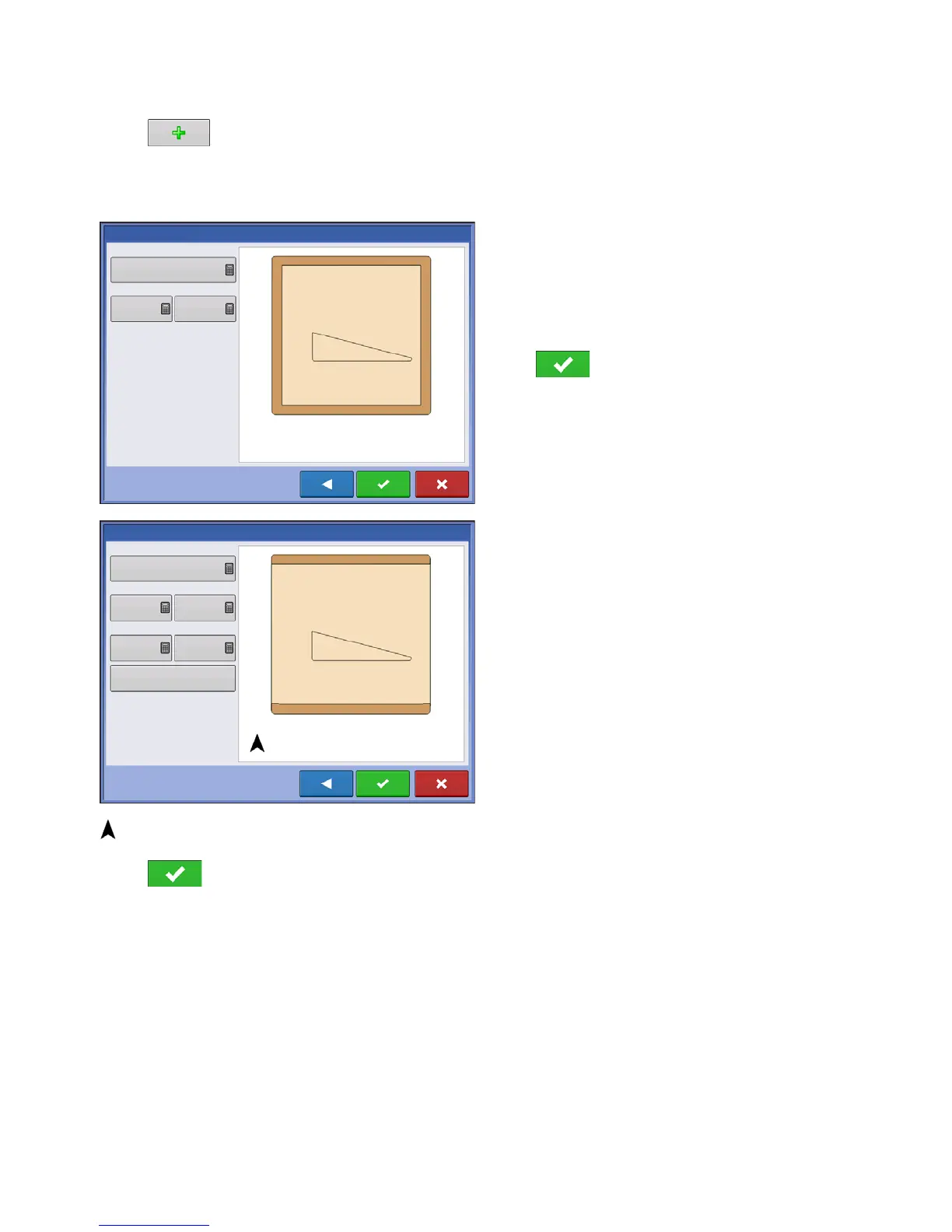

Add a Headland
Press on Headlands Options screen.
Select Headland Type from drop-down box.
Headland Types
All-Around
Offset Implement Width - number of implement
widths used to set the headland width
Offset Distance - distance used to set headland
width.
Press to accept.
Top Bottom
Offset Implement Width - number of implement
widths used to set the headland width
Offset Distance - distance used to set headland
width.
Heading - used to generate boundary, headlands
are created perpendicular to heading
Scaling - sets the amount of variation that is allowed
(from perpendicular) to include part of field boundary
in the headlands
Use AB - select AB line to set heading for
determining headlands
Shows the heading used for Headland creation.
Press to accept.
Offset Implement Widths
New Headlands
2
Offset Distance
80
0
Offset Implement Widths
New Headlands
2
Offset Distance
80
0
Heading
0
Scaling
7.8
Use AB
