312 Firmware Version 6.0

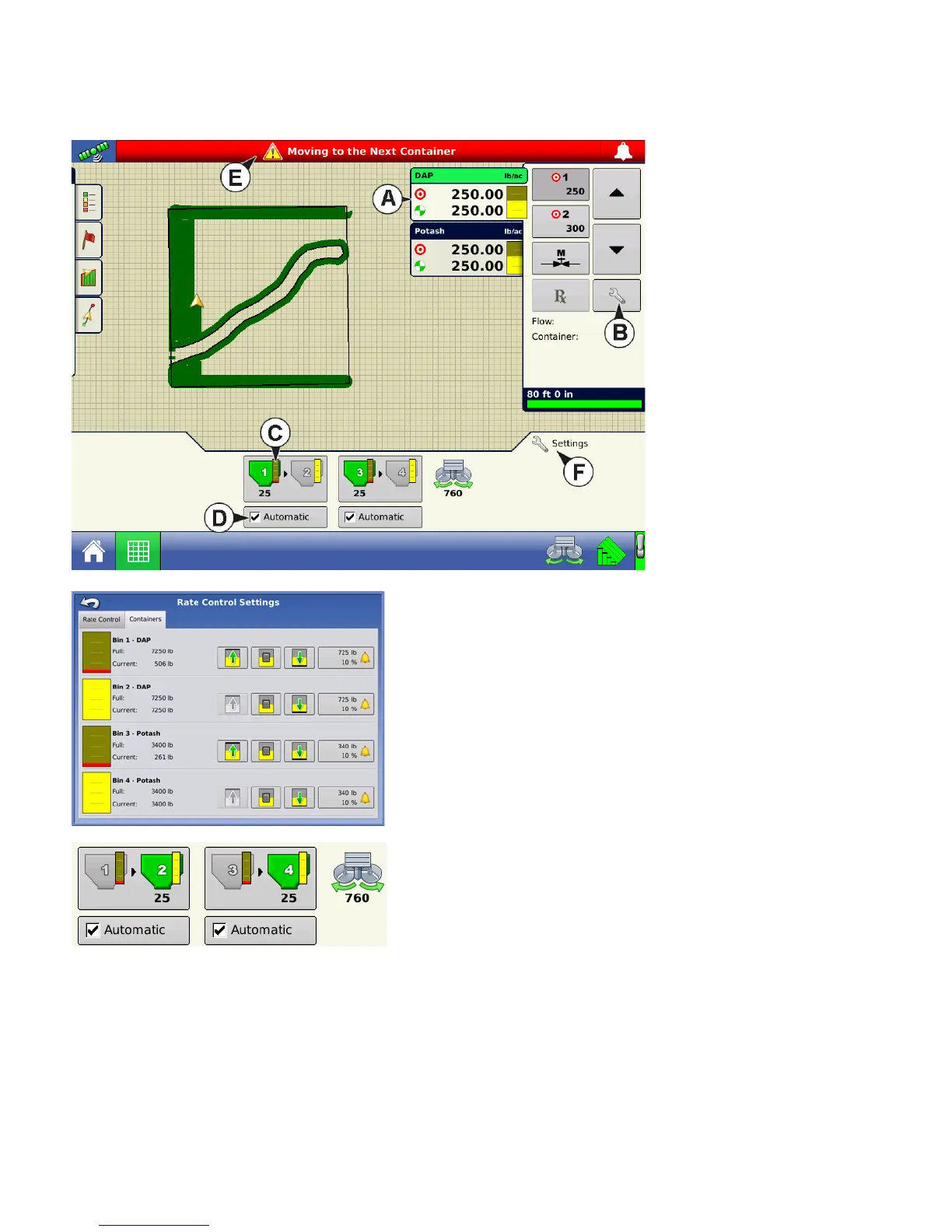

MAP SCREEN
(A) Single Rate control display for all containers in a
sequence. Container level indicator displays the combined
total for all containers in the sequence.
(B) Manage individual container level edits for all containers
when using container sequencing (see image to the left).
Rate Control Settings are further explained in
“Rate Control
Settings” on page 241.
Container Settings are detailed in
“Container Level Settings” on page 242.
(C) Container level indicator displays the independent
container level for each application channel in the sequence.
(D) Automatic Sequence Enable/Disable button must be
checked for Automatic container sequencing to function. If
Sequence Trigger is set to Manual Advance Only, Automatic
checkbox will not be displayed.
(E) Moving to the Next Container Warning alerts user when the user defined Automatic Sequencing
Trigger condition has been met and system is advancing to next container in the sequence. This warning
is not displayed when manually advancing sequence. System will automatically activate the next
designated container in the sequence.
(F) Settings press to access standard Spreader Control settings including Static and In-Field calibration
routines.
