132 1100 Series Nano Pump Service Manual

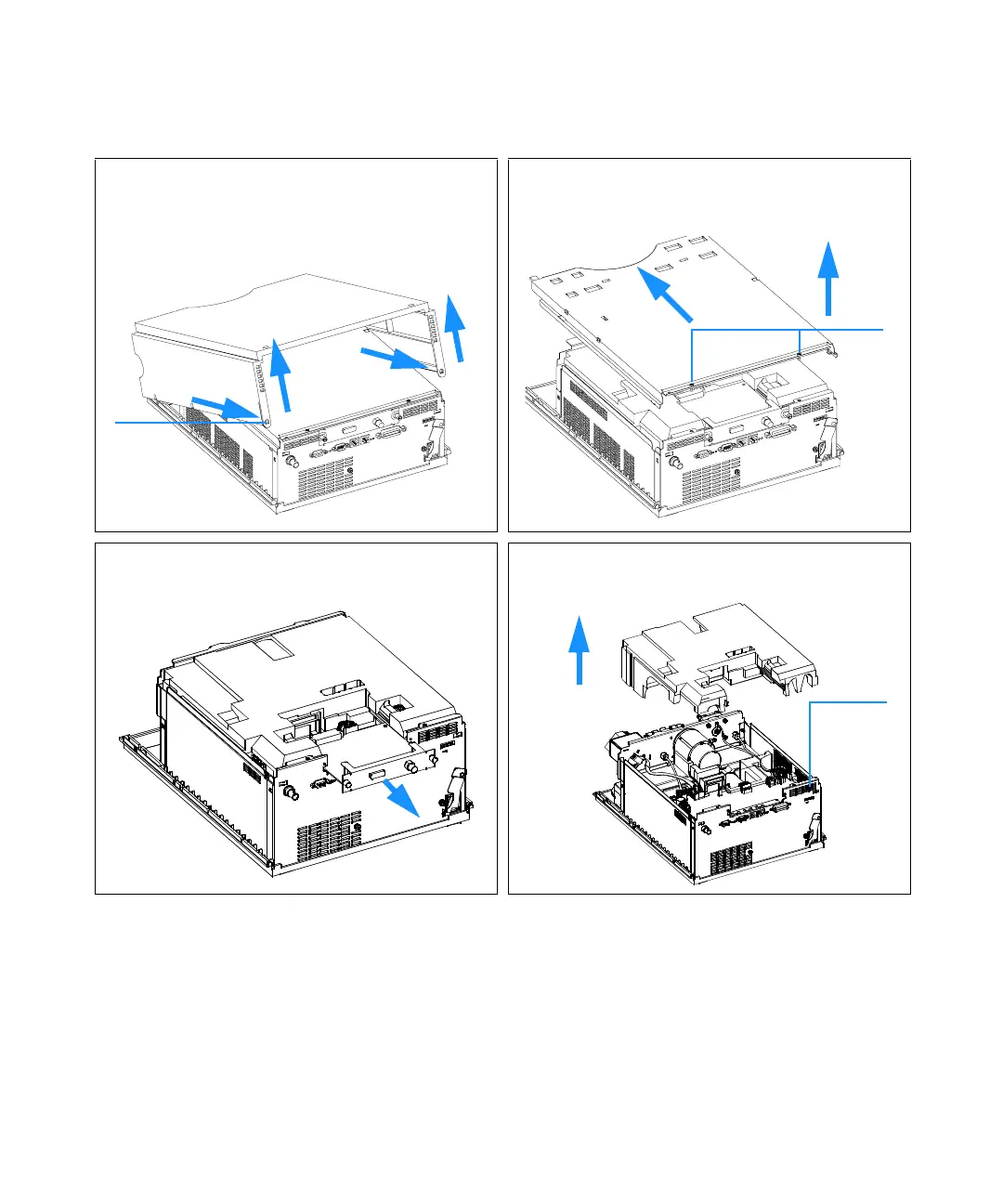

3 Repairing the Pump
3 Lift the clips on both sides of the top cover (1).
Remove the top cover (2).
4 Unscrew the screws on the top plate and remove the
plate by lifting its back first and then sliding to the
front.
5 If an optional interface board is installed, remove it
from the nano pump.
6 Remove the top foam.
Cover
Cover
clip
(1)
(1)
(2)
(2)
Screws
Safety
light
switch
