1220 Infinity II LC System User Manual 265
Maintenance and Repair
11
Solvent Delivery System
3

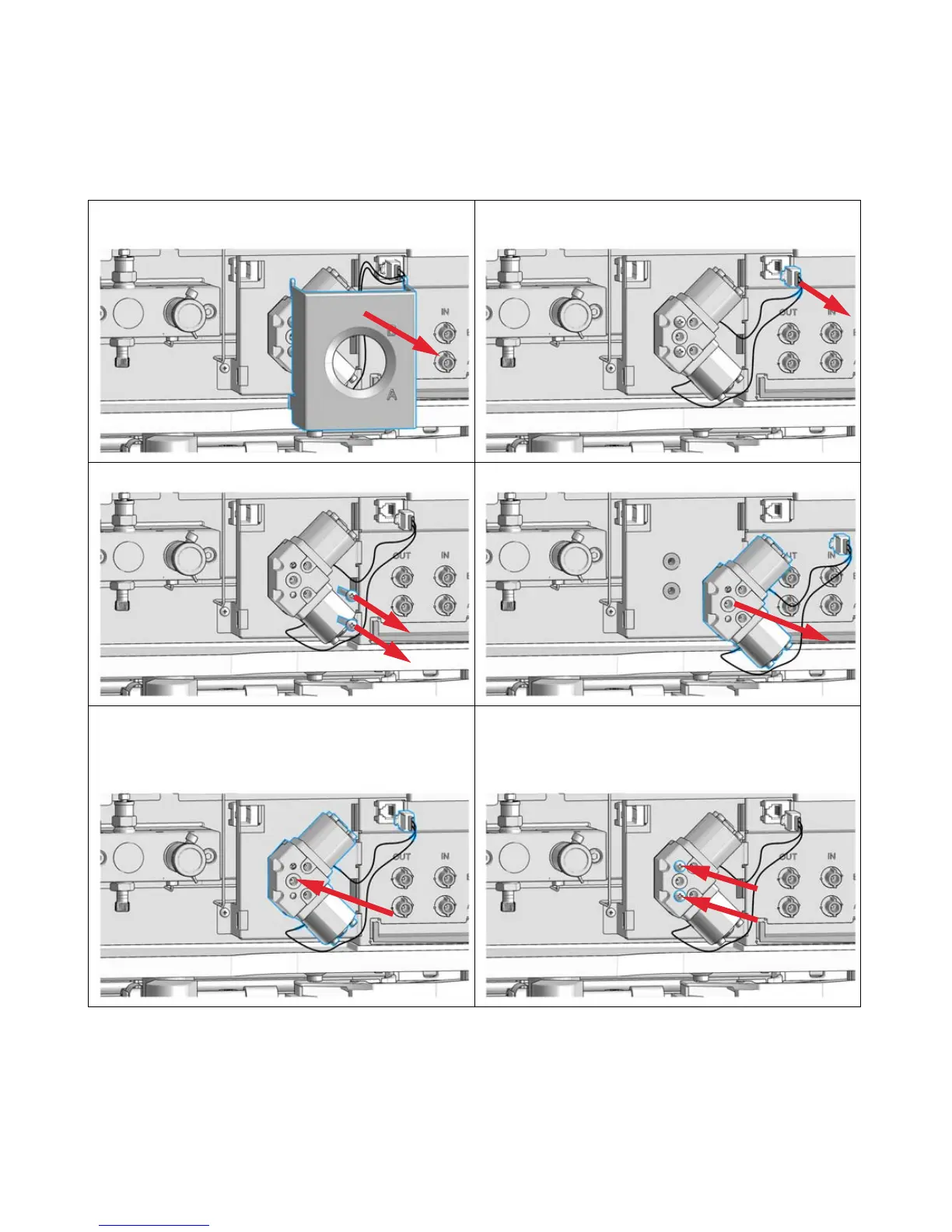

Press the lower sides of the cover to unclip it. Remove
the cover.
4
Disconnect the DCGV cable.
5
Unscrew the two holding screws.
6
Remove the DCGV.
7
Place the new DCGV into position. Make sure that the
valve is positioned with the A-channel at the
bottom-right position. Tighten the two holding screws
and connect the cable to its connector.
8
Tighten the two holding screws.
