1220 Infinity II LC System User Manual 297
Maintenance and Repair
11
Variable Wavelength Detector (VWD)

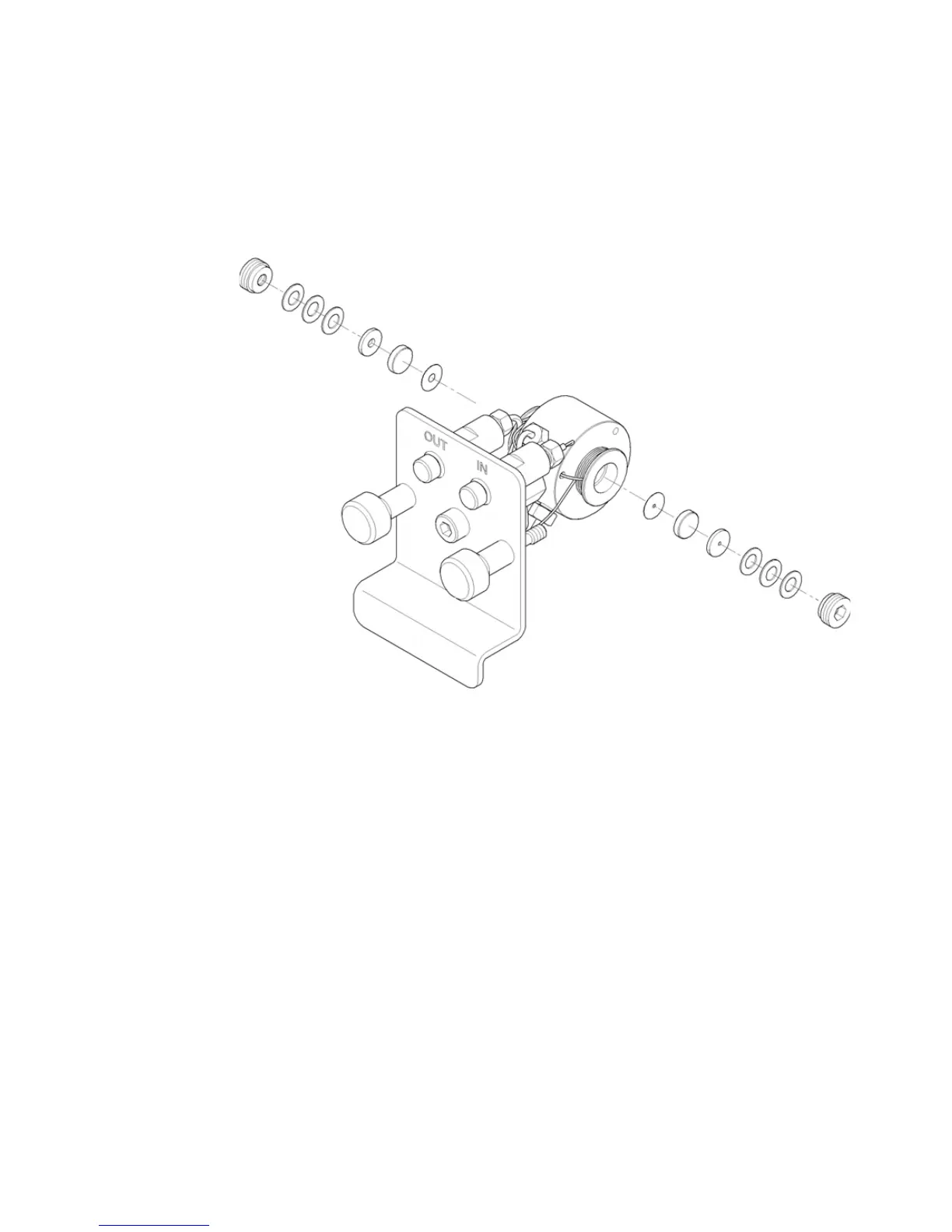

Figure 65 Standard Flow Cell 10 mm / 14 µL
1 Press the release buttons and remove the lower front cover to gain access to
the flow cell area
2 Disconnect the inlet and outlet capillaries.
3 Unscrew the thumb screws in parallel and remove the flow cell.
4 Disassembling the flow cell.
a Unscrew the cell screw using a 4 mm hexagonal wrench.
b Remove the SST rings using a pair of tweezers.
c Use adhesive tape to remove the PEEK ring, the window and the gasket.
d Repeat step 1 on page 297 through step 3 on page 297 for the other
window. Keep the parts separate, otherwise they could get mixed up.
&HOOVFUHZ
&RQLFDOVSULQJV
5LQJ,1
*DVNHW,1
4XDUW]ZLQGRZ
*DVNHW287
5LQJ287


[






[
