Diode Array Detector (DAD)
3

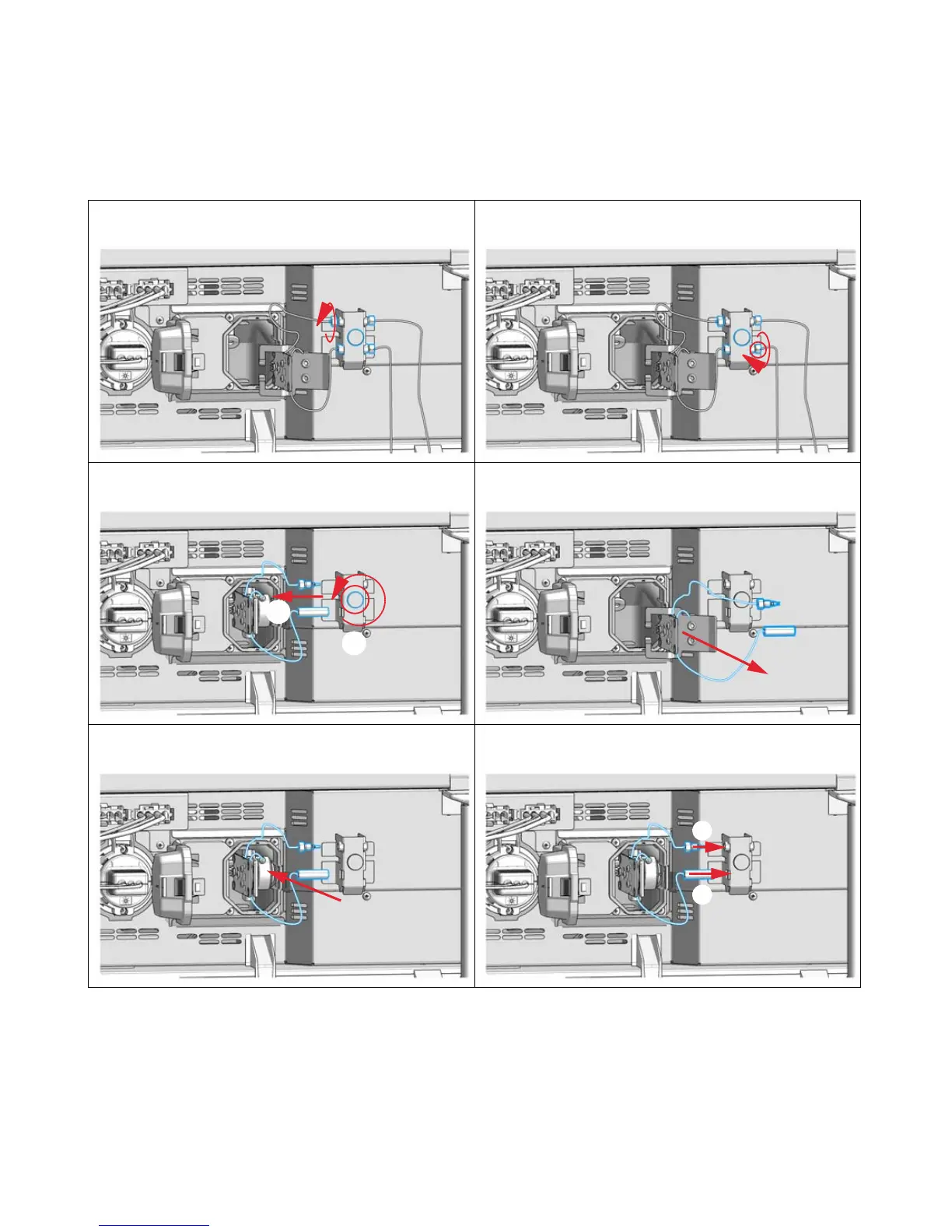

Disconnect the flow cell inlet capillary (top) from the
union.
4 Disconnect the waste tubing (bottom) from the union.
5 Loosen the thumb screw and remove the flow cell outlet
capillary (bottom) with the union.
6 Remove the flow cell while pressing the flow cell holder.
7 Insert the flow cell while pressing the flow cell holder. 8 Insert the flow cell capillaries into the union holder (top
is inlet, bottom is outlet).
