1220 Infinity II LC System User Manual 349
Parts for Maintenance and Repair
12
Detector

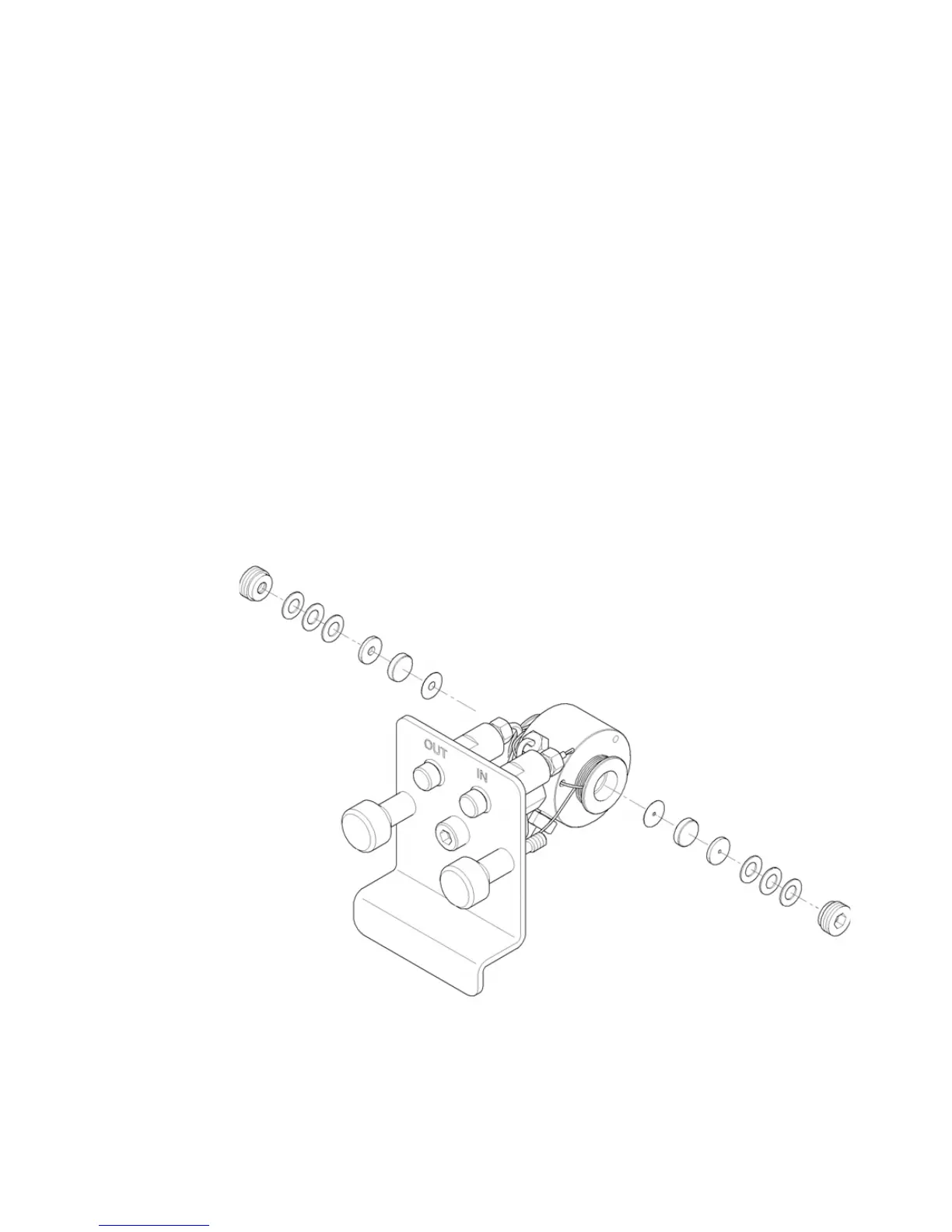

Figure 72 Standard Flow Cell 10 mm / 14 µL
G1314-65061 Cell Repair Kit, includes 2x Gasket #1, 2x Gasket #2, 2x Window
Quartz
1 G1314-65062 Cell screw kit
2 79853-29100 Conical spring kit, 10/pk
3 G1314-65066 Ring #2 kit (IN small hole, i.d. 1 mm) PEEK, 2/pk
4 G1314-65064 Gaskets #2 IN (small hole i.d. 1 mm), KAPTON 10/pk
5 79853-68742 Window quartz kit, 2/pk
6 G1314-65063 Gasket #1 kit (OUT large hole, i.d. 2.4 mm) KAPTON, 2/pk
7 G1314-65065 Ring #1 kit (OUT large hole, i.d. 2.4 mm) PEEK, 2/pk
Item p/n Description
