Agilent Technologies 1220 Infinity II LC

1220 Infinity II LC System User Manual 371
Identifying Cables
14

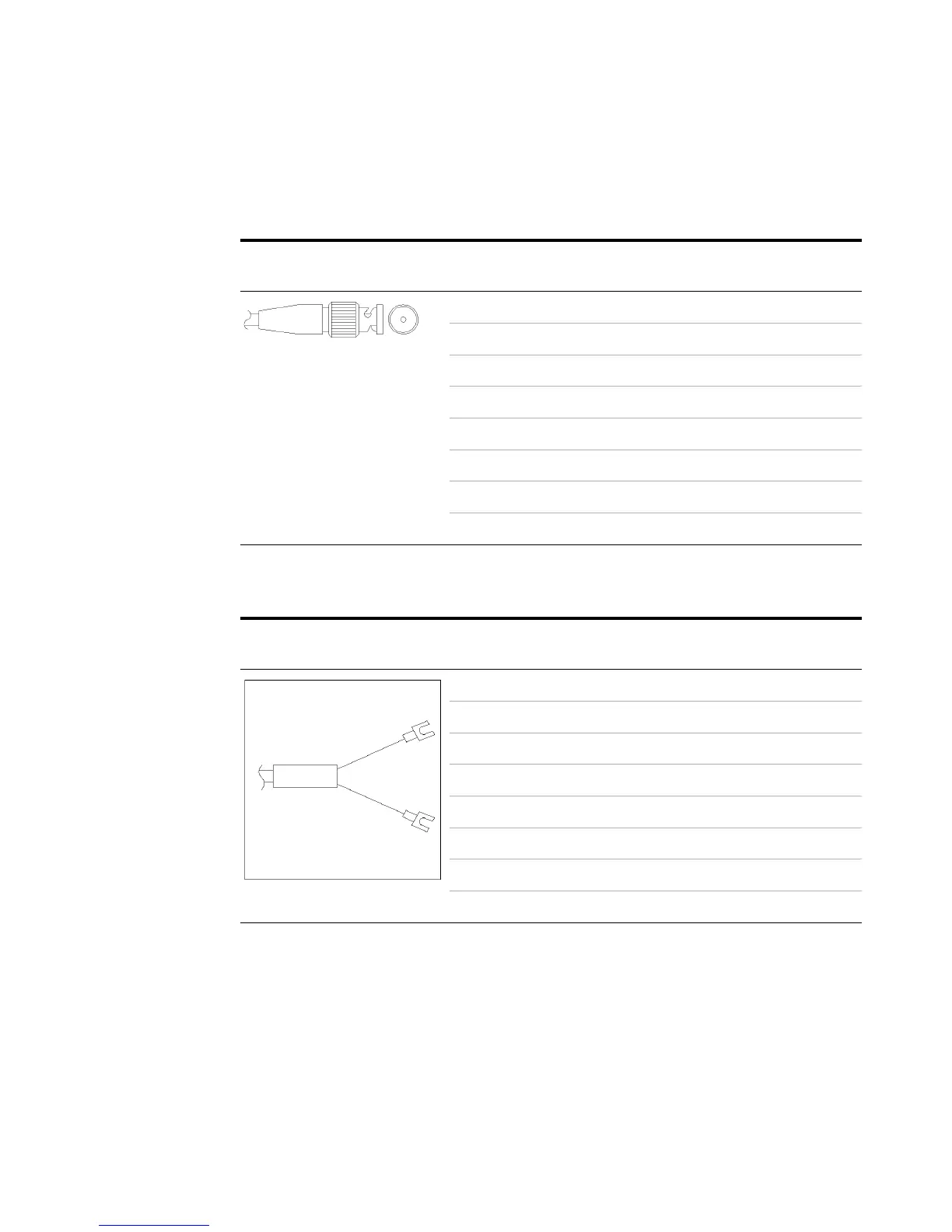

Analog Cables
Agilent Module to BNC Connector
Agilent Module to General Purpose
p/n 8120-1840 Pin BNC Pin Agilent
module
Signal Name
Shield Shield Analog -
Center Center Analog +
p/n 01046-60105 Pin Pin Agilent
module
Signal Name
1Not connected
2 Black Analog -
3 Red Analog +
