Agilent Technologies 1220 Infinity II LC User Manual

1220 Infinity II LC System User Manual 373
Identifying Cables
14
Remote Cables

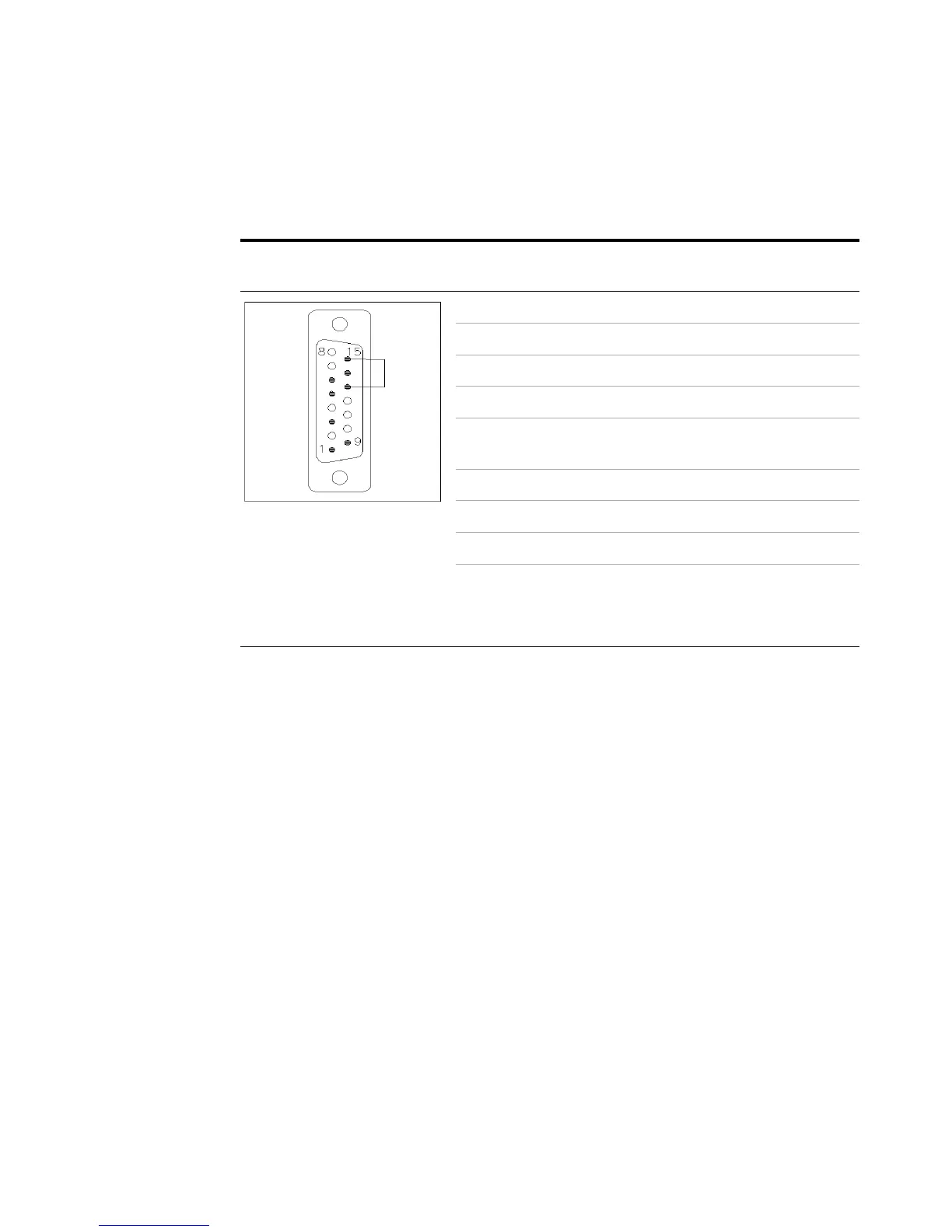

Agilent Module to 3396 Series III / 3395B Integrators
p/n 03396-61010 Pin 33XX Pin Agilent
module
Signal Name Active
(TTL)
9 1 - White Digital ground
NC 2 - Brown Prepare run Low
3 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not
connected
NC 6 - Yellow Power on High
14 7 - Red Ready High
48 - GreenStopLow
NC 9 - Black Start request Low
13, 15 Not
connected
