Agilent Technologies 8453 User Manual

42
Theory of Operation
Spectrophotometer Interface (SSI) Board
Spectrophotometer Interface (SSI) Board
The SSI board controls the push buttons and the LED located at the front
panel of the instrument.

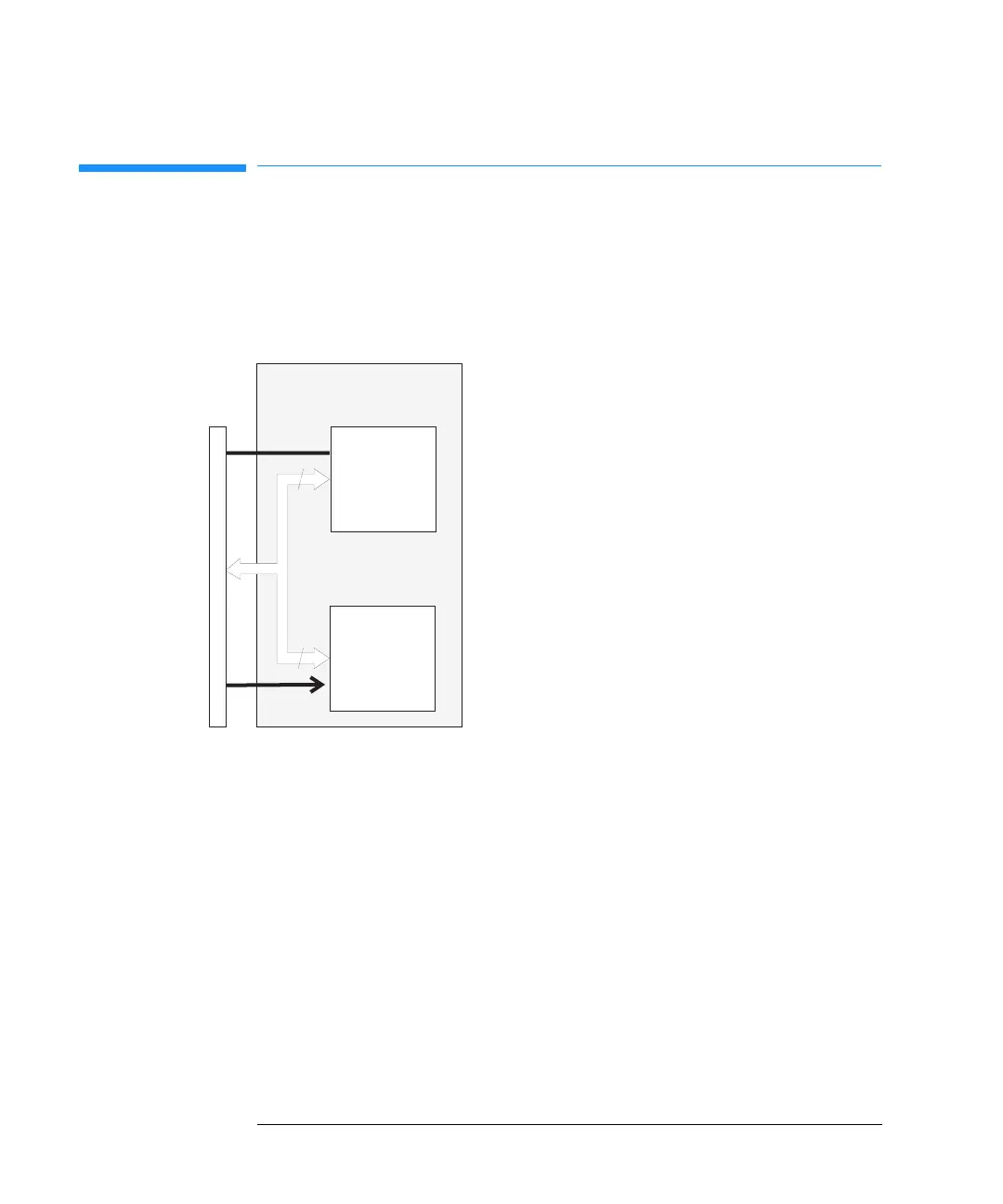

Figure 9 SSI Board
Switches are pulled to GND when pressed, and provide a signal to the SPM
board through the low-pass filter on the SDA board. The LED is driven from
the SPM board through the low-pass filter on the SDA board.
tric o lo r L E D
4 sw itches
GND
VCC
4
2
SD A board
SSI
