20 Agilent 8453 UV-visible Spectroscopy System Operator’s Manual
1 Introduction to Your System
General Purpose Agilent ChemStation Software for UV-visible Spectroscopy — Overview

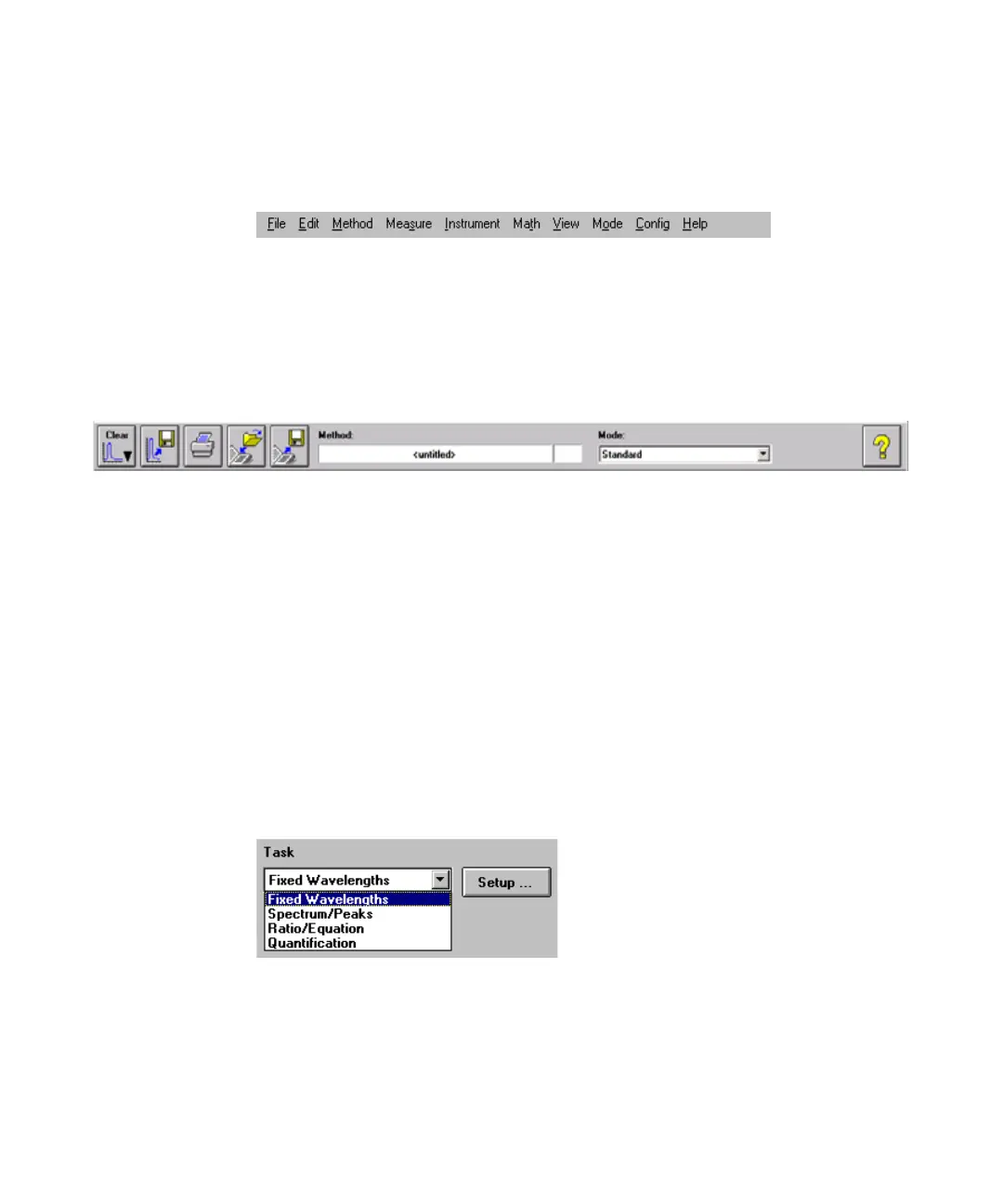

Menu
The more traditional menu interface at the top of the Agilent ChemStation
window allows to control all operations.When you choose an item from the
menu bar a list of commands and submenus is displayed. An operation is
performed by choosing a command (mouse click or E
NTER key).
Toolbar
The tool bar below the menu bar shows buttons with symbols, icons, which
allow direct access to basic operations such as printing result reports, loading
methods, and saving methods and data.
Side Panels
The panels on the left side are the analysis panel and instrument panel. The
size and position of these panels are fixed but are a function of your display’s
resolution. The minimum resolution is 600 × 800 pixels.
Analysis Panel
The analysis panel gives you a graphical visualization of the current context in
which you are working. In addition it provides access to the setup dialog of
your actual task by means of the Setup button.
