Maintenance and Repair
Exchanging SLS Board

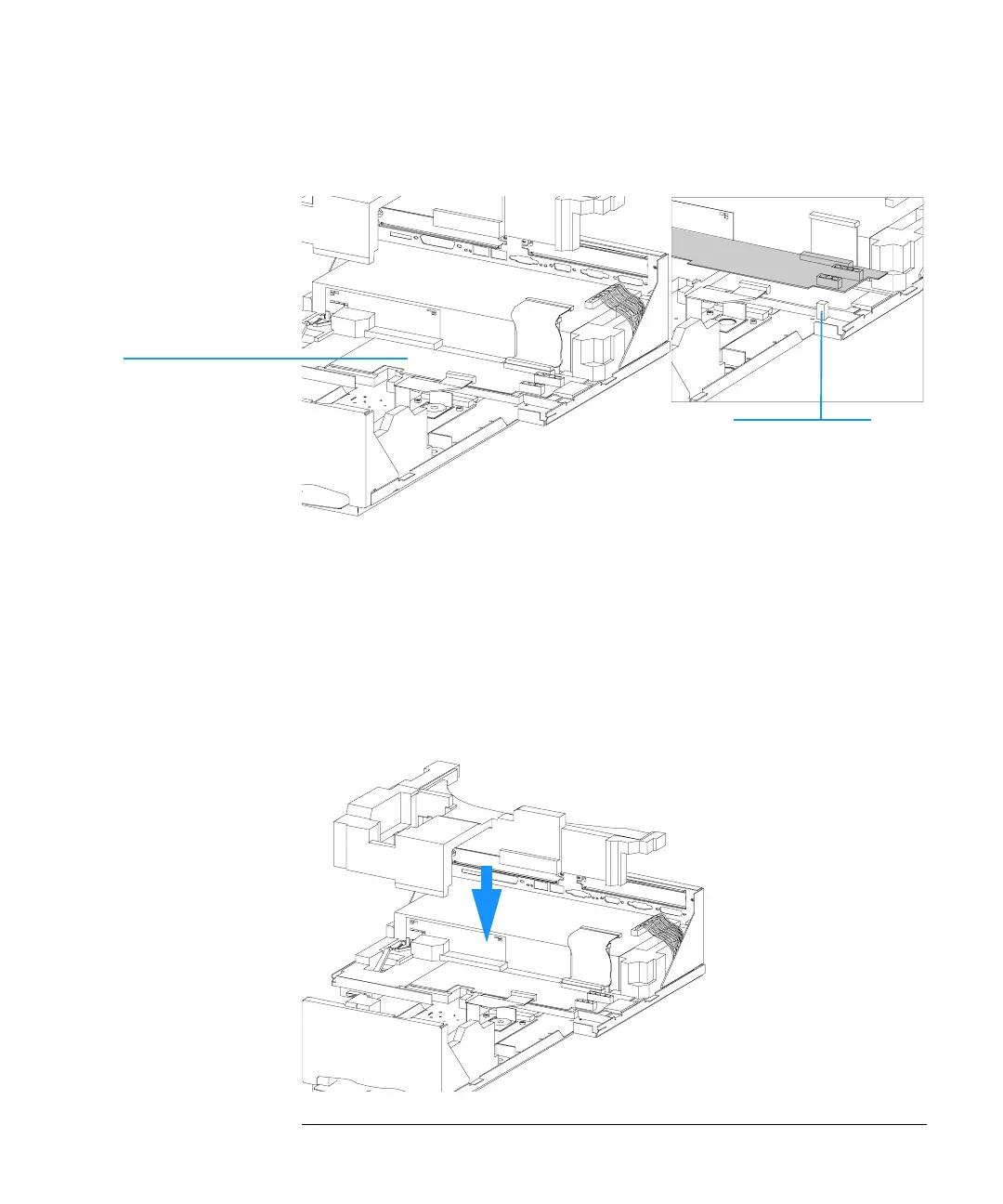

Figure 44 Removing the SLS Board
Replacing the SLS Board
1 Slide the SLS board into the tab on the right side and push it down, see figure
above.
2 Connect the flat ribbon cable that leads to the SPM board.
3 Replace the middle rear foam block.
Figure 45 Replacing the Middle Rear Foam Block
Tab to hold SLS board
SLS board
