ChemStation Workflow 39
Workflow with Unique Folder Creation switched off
4
Workflow with Unique Folder Creation switched off

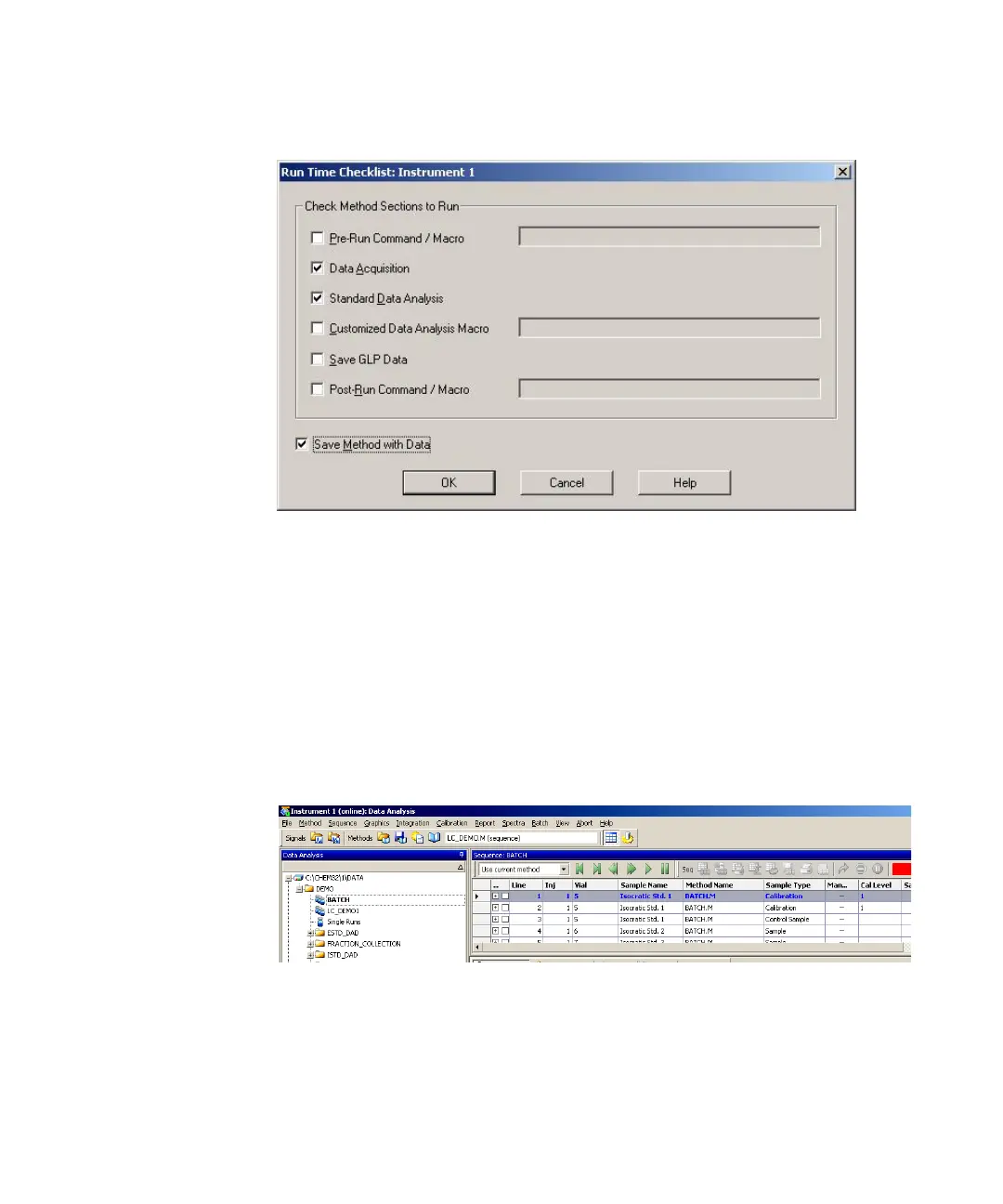

Figure 19 Run Time Checklist: Save Method with Data
The enhanced ChemStation user interface as introduced with ChemStation
B.02.01 is also available when Unique Folder Creation is switched off.
However, there are functions you can not take advantage of in this mode.
The same limitations also apply to any run acquired with ChemStation
prior to B.02.01.
• When a sequence is loaded into the Navigation Table, the reprocessing
toolset is grayed out (Figure 20 on page 39). Sequences that have been
acquired in this data storage mode can only be reprocessed in Method
and Run Control view using the Reprocessing only option in the Sequence
Parameters (Figure 21 on page 40).
Figure 20 Navigation Table for Sequences acquired with Unique Folder Creation
switched off
