Multitone Signal Measurements
In addition to wide dynamic range, the E9300 E- Series power sensors also
have an exceptionally flat calibration factor versus frequency response as
shown in Figure 5- 119. This is ideal for amplifier intermodulation
distortion measurements where the components of the two- tone or
multitone test signal can be separated by hundreds of MHz.

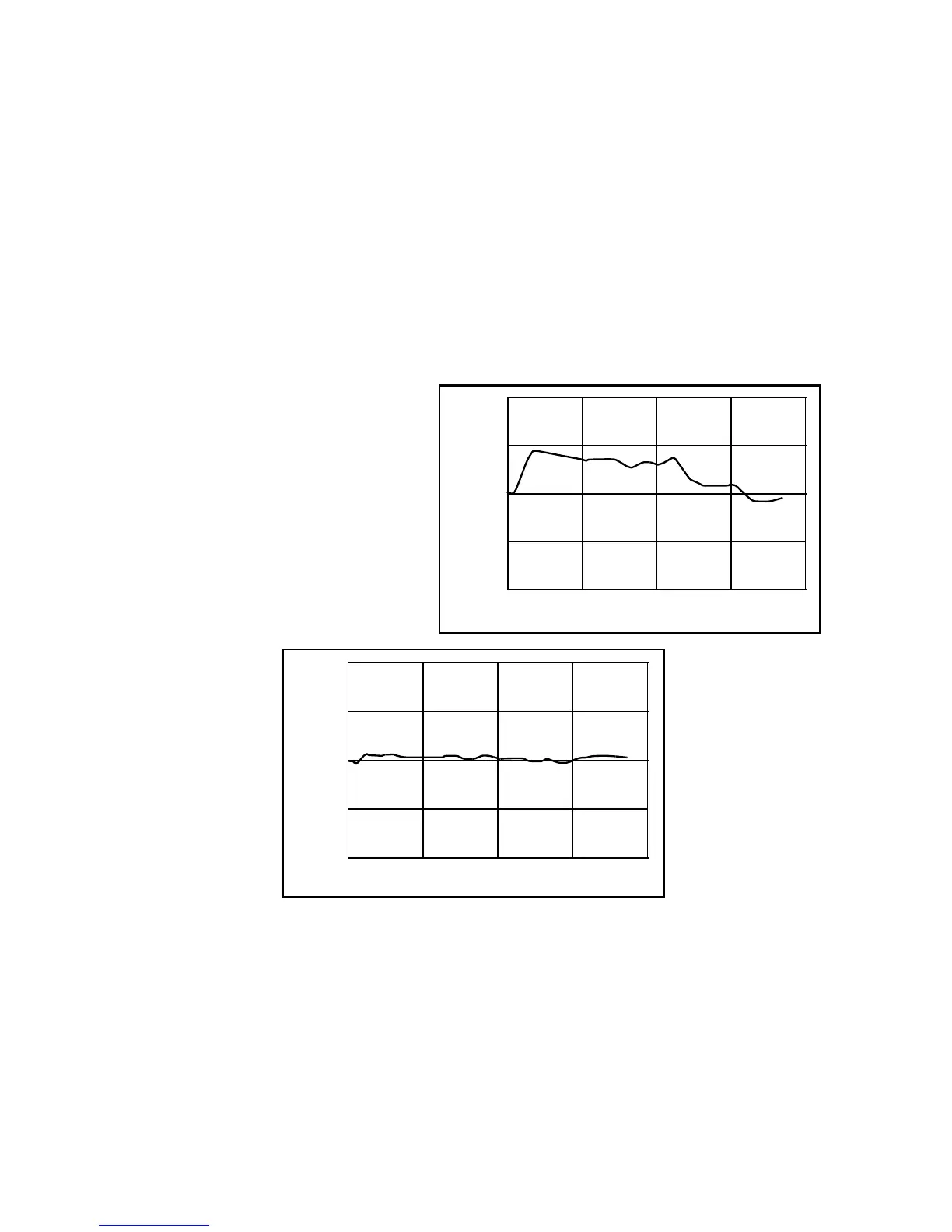

Figure 5-119Calibration factors versus frequency
110 %
105 %
100 %
95 %
90 %
0 5 10 15 20
110 %
105 %
100 %
95 %
90 %
0 5 10 15 20
Cal Factor
Frequency (GHz)
Typi cal L o wer Ran ge
Calibration Factor
Typical Upper Range
Frequency (GHz)
Cal Factor
Calibration Factor
