1 Introduction
26 N1911A/1912A P-Series Power Meters User’s Guide
Editing the Instrument’s LAN Settings
Once communication path to the instrument has been established, the
instrument’s LAN configuration can be viewed and modified using the Web
browser.
On the Welcome Page, click View and Modify Configuration. This opens
the configuration window shown in Figure 1- 13.

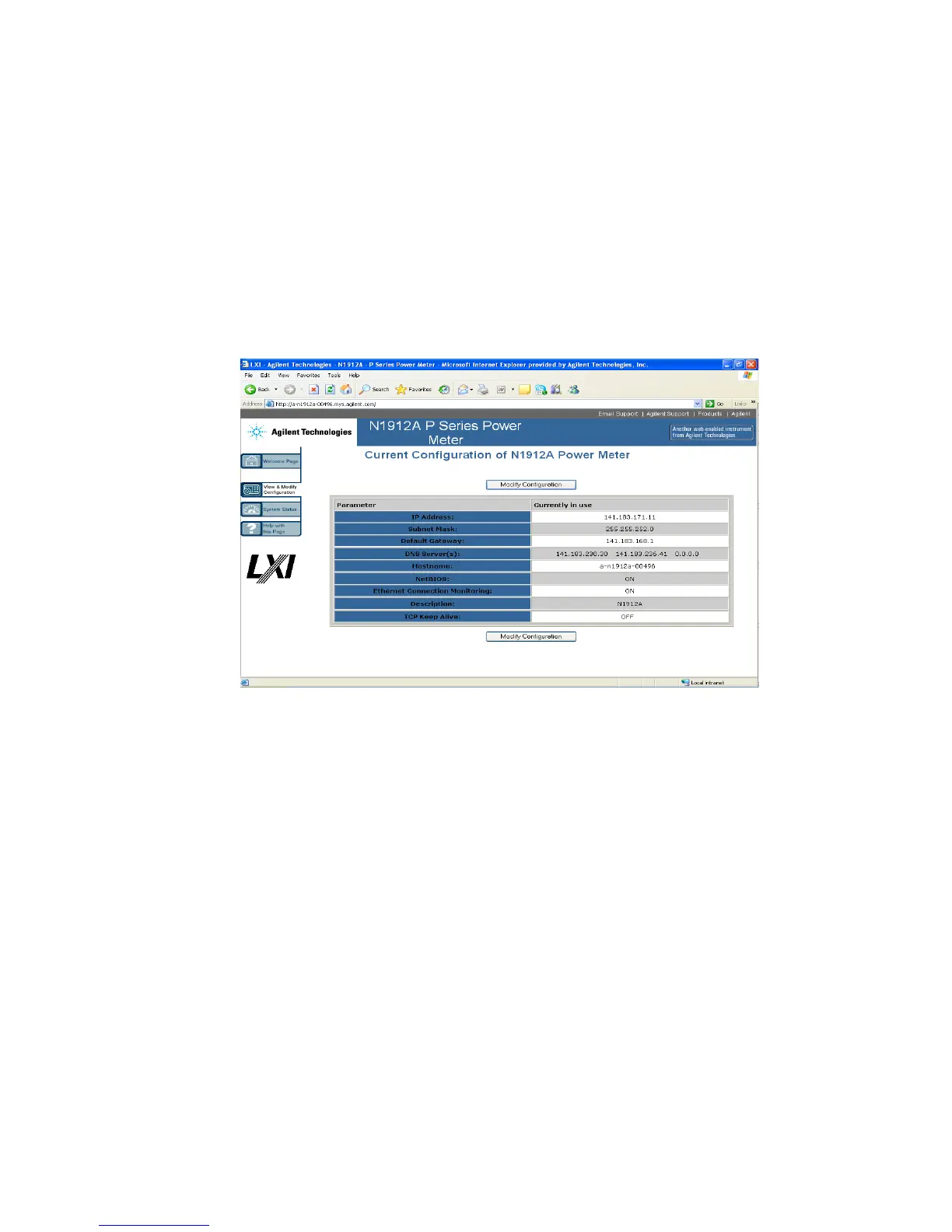

Figure 1-13 Viewing LAN configuration settings from the Web interface.
To edit parameters shown, click Modify Configuration. The Enter
Password dialog box appears as shown in Figure 1- 14.
