Agilent Technologies N1911A - Power Meter Configuration; Figure 6-120 E-Series CW Sensor Auto-Averaging Settings

Using E4410 E-Series Power Sensors 6
N1911A/1912A P-Series Power Meters User’s Guide 169
Power Meter Configuration
The P- Series power meters automatically recognize an E- Series E4410
power sensor when it is connected. The sensor calibration data is
automatically read by the power meter. Also, the power meter
automatically configures the averaging as shown in Figure 6- 120.

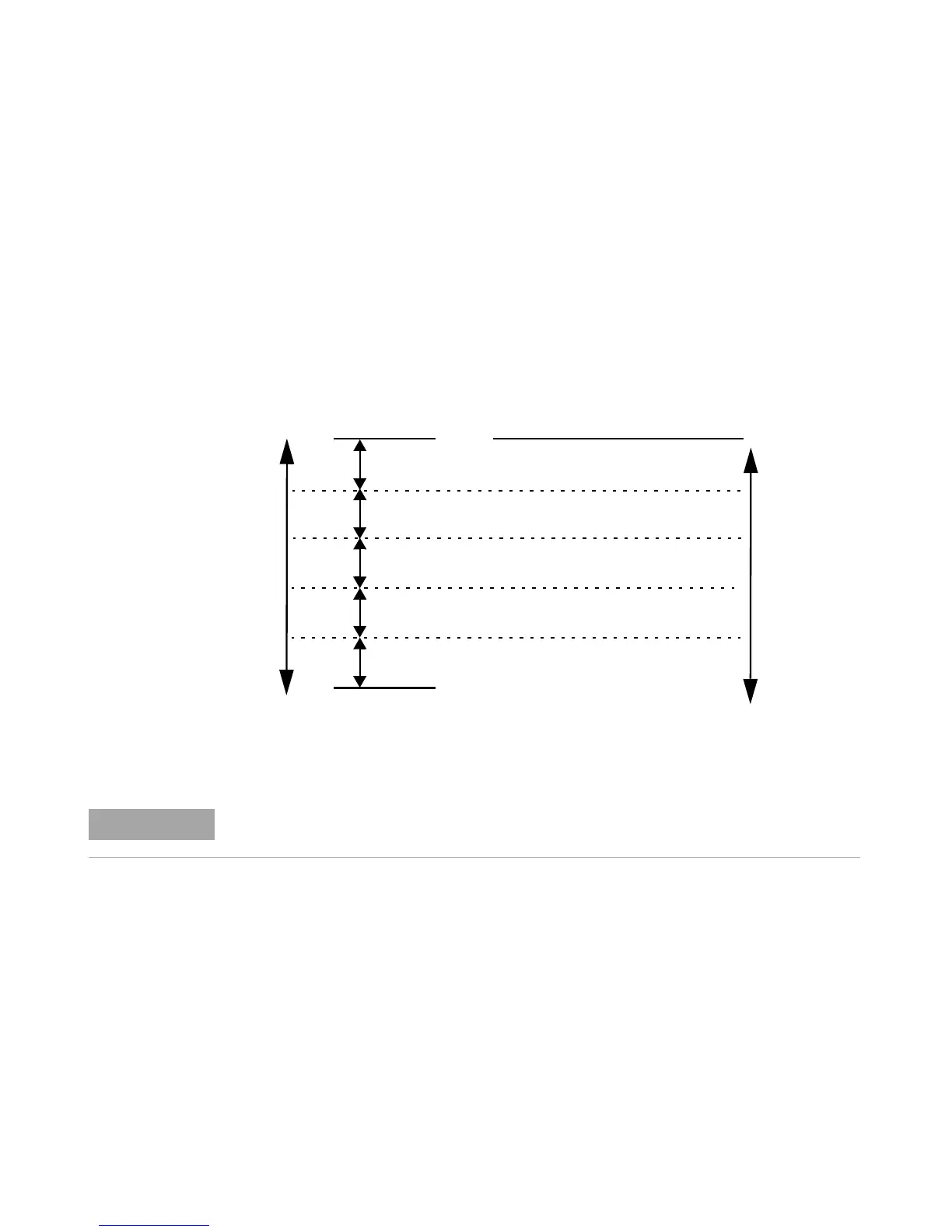

Figure 6-120E-Series CW sensor auto-averaging settings
10 dB
10 dB
Maximum Sensor Power
Minimum Sensor Power
Power Sensor Dynamic Range
10 dB
10 dB
1234
1118
Resolution Setting
Number of Averages
11116
11232
1 1 16 256
1 8 128 128
NOTE
These values are valid only for the power meter channel connected with E-Series E4410
power sensor. Averaging settings can also be manually configured.
