Agilent Technologies N1911A - Figure 2-41 Auto Gate Settings Display; Figure 2-42 Marker 1 Ref Percentage Pop-Up

2 General Power Meter Functions
60 N1911A/1912A P-Series Power Meters User’s Guide
• To change the Auto Gate setup:
1 Press softkey.

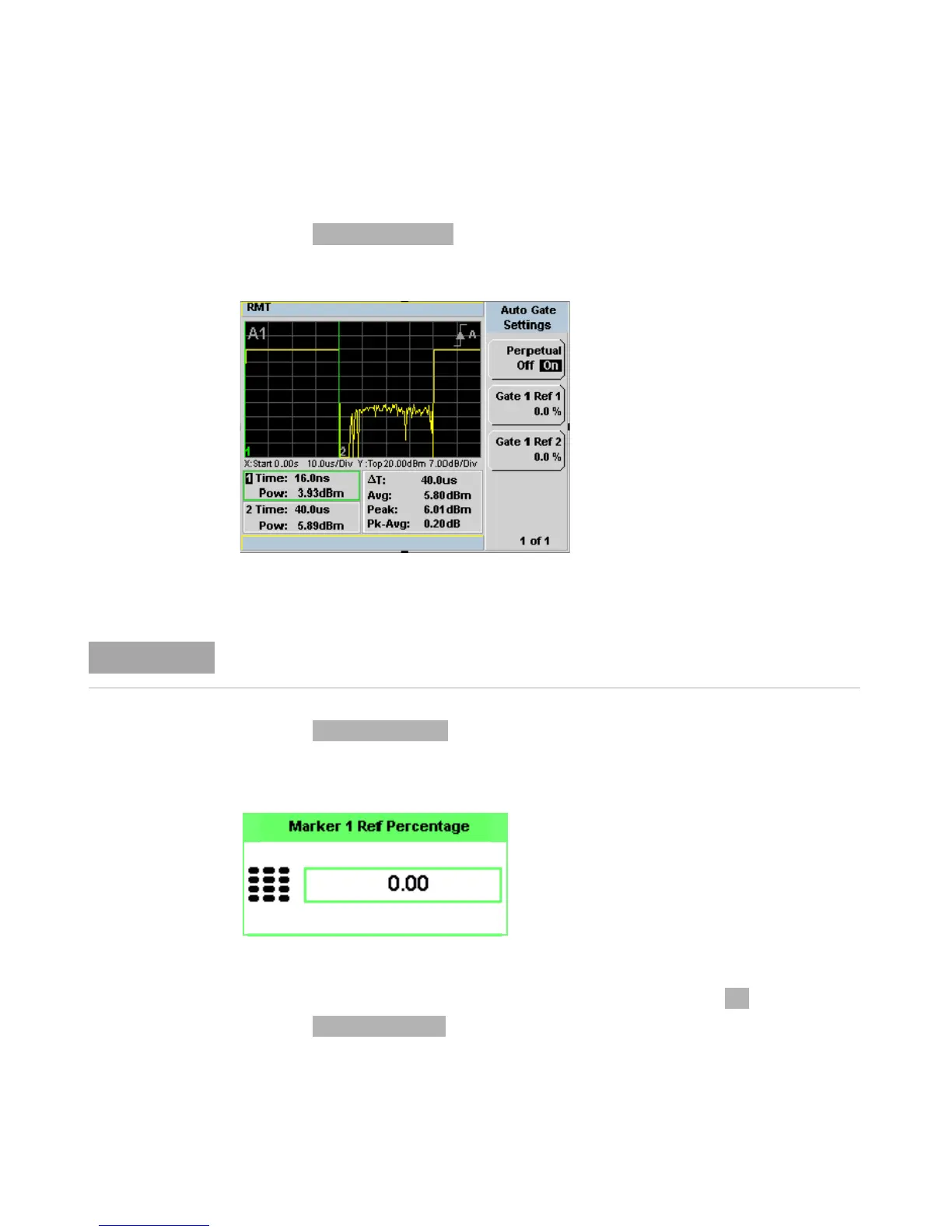

Figure 2-41 Auto Gate Settings display
2 Press softkey. The Marker 1 Ref Percentage pop- up is
displayed.
Figure 2-42 Marker 1 Ref Percentage pop-up
3 Use the numeric keys to complete the entry and press softkey.
4 Press softkey. The Marker 2 Ref Percentage pop- up is
displayed.
Auto Gate Settings
NOTE
Auto Gate Settings enables the placing of markers (gates) at different positions.
Gate 1 Ref 1 0.0%
%
Gate 1 Ref 2 0.0%
