Agilent Technologies N1911A - Figure 2-78 Recorder Minimum Pop-Up; Figure 2-79 Recorder Maximum Pop-Up

2 General Power Meter Functions
100 N1911A/1912A P-Series Power Meters User’s Guide
4 Use the and keys to highlight the option you require.
• The N1911A has only two options, On or Off.
• The N1912A have three options: 1, 2 or Off.
5 Press .
6 Use the key to highlight the Recorder Minimum: value field.
7 Press to display the Recorder Minimum pop- up.

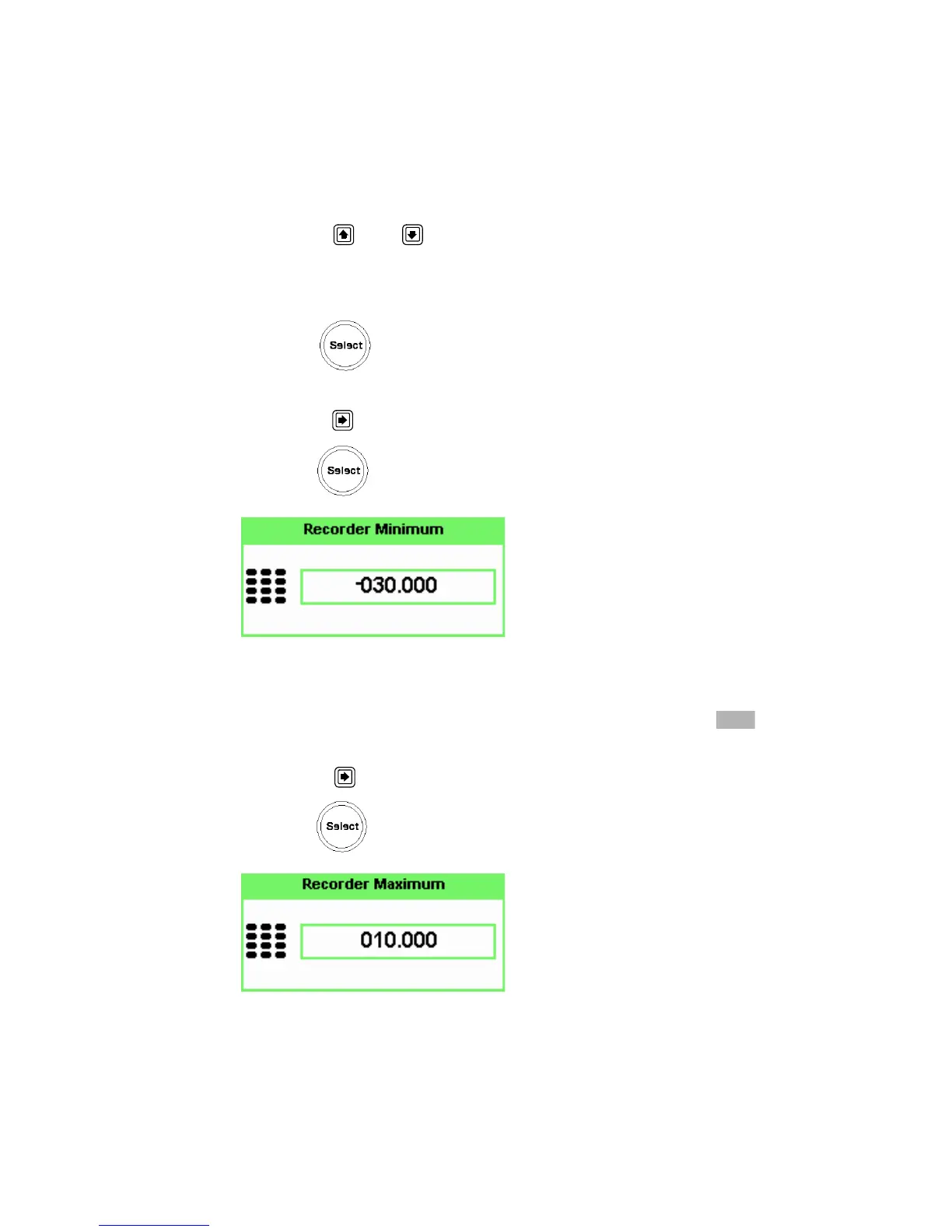

Figure 2-78 Recorder Minimum pop-up
8 Use the numeric keys to enter the power level you want to generate a 1
Vdc output in the Recorder Maximum pop- up and press .
9 Use the key to highlight the Recorder Maximum: value field.
10 Press to display the Recorder Maximum pop- up.
Figure 2-79 Recorder Maximum pop-up
dBm
